Product Details:
Payment & Shipping Terms:
|
| Brand: | Yaskawa | Model: | SGD-02BP |
|---|---|---|---|
| Series: | SGD | Onput: | 0-115V |
| Voltage Product Type: | AC | Input: | 100V |
| Power: | 200W | Place Of Origin: | Japan |
| Highlight: | Electric Industrial Servo Drives,Yaskawa Servo Controller SGD-02BSY38,SGD-02BSY38 |
||

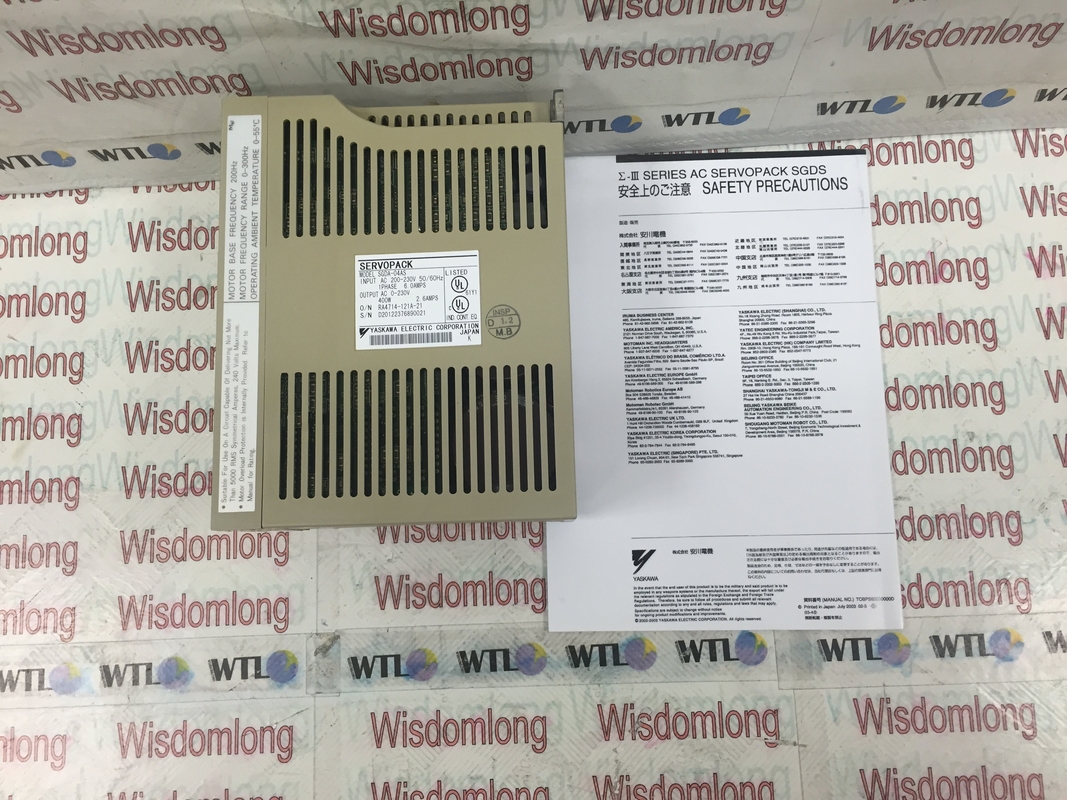

Industrial Servo Drive Yaskawa Electric Servopack Servo Controller SGD-02BSY38
QUICK DETAILS
Power: 200W
DESCRIPTION
SEPCIFICATIONS
| Brand Name | Yaskawa |
| Model Number | SGD-02BSY38 |
| Place of Origin | Japan |
| Input | 100V |
| MPS | 8.0 |
| Output | 0-115V |
| MPS | 2.7 |
| Power | 400W |
Controlled system
In the previous figure, the controlled system is a movable table for which the position or speed is controlled. The movable table is driven by a ball screw and is connected to the servomotor via gears. So, the drive system consists of:
Gears + Ball Screw
This drive system is most commonly used because the power transmission ratio (gear ratio) can be freely set to ensure high positioning accuracy. However, play in the gears must be minimized.
The following drive system is also possible when the controlled system is a movable table:
Coupling + Ball Screw
When the power transmission ratio is 1 : 1, a coupling is useful because it has no play. This drive system is widely used for machining tools. Timing Belt + Trapezoidal Screw Thread A timing belt is a coupling device that allows the power transmission ratio to be set freely and that has no play.
A trapezoidal screw thread does not provide excellent positioning accuracy, so can be treated as a minor coupling device.
To develop an excellent servo system, it is important to select a rigid drive system that has no play.
Configure the controlled system by using an appropriate drive system for the control purpose.
Drive system
Also called a drive mechanism.
A drive system connects an actuator (such as a servomotor) to a controlled system and serves as a mechanical control component that transmits torque to the controlled system, orientates the controlled system, and converts motion from rotation to linear motion and vice versa.
SIMILAR PRODUCTS
| SGD-04ASY53 | SGD-08AH |
| SGD-08AN | SGD-08AP |
| SGD-08APY61 | SGD-08ASY25 |
| SGD-02AP | SGD-02AS |
| SGD-02BH | SGD-02BP |
| SGD-02BS | SGD-04AN |
| SGD-04AP | SGD-04APY61 |
| SGD-04AS | SGD-04ASY52 |
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| Fanuc motor A0- | Yokogawa transmitter EJA- |
Terms:
We ships worldwide and accepts T/T and Paypal.
All items are subject to availability and passing our QA testing and inspection.
Turnaround Time:
Standard order processing is 1-2 business days plus shipping method chosen.
Rush and off-hours service available for an additional fee
Packaging and Handling:
Items are safely packaged in custom shipping cartons for protection.
Shipping:
We ship worldwid use UPS, FedEx, DHL, or Truck Freight when needed.
Call to use a shipping service other than the ones listed.
International Customers are responsible for all Customs fees, VAT, and other fees applied by their
respective countries.
All shipments are fully insured.
