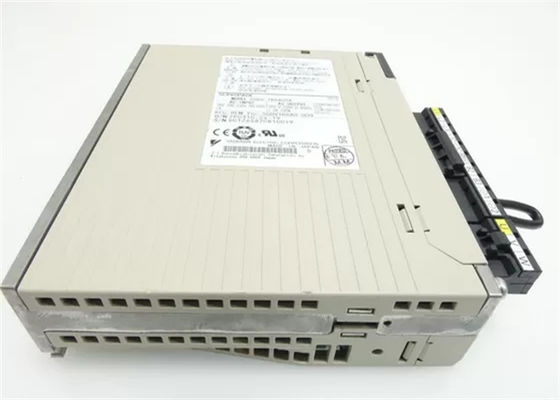

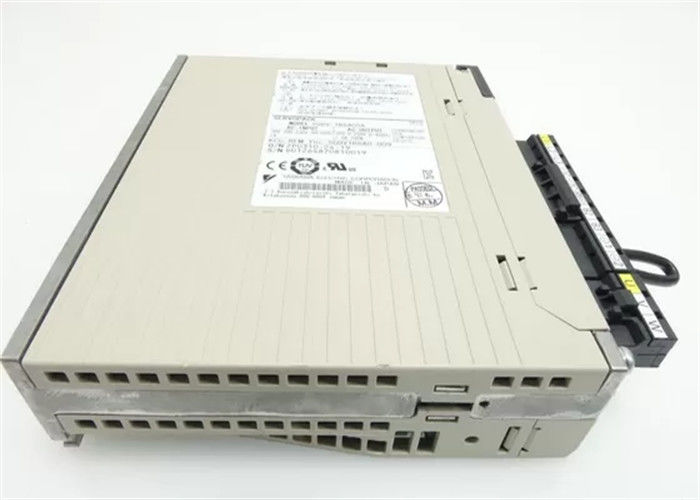

SGDV-7R6A05A Yasakwa Brand New AC Servo Amplifier 1kw In Original

SGDV-7R6A05A Yasakwa Brand New AC Servo Amplifier In Original

Description:

• Model: SGDV-7R6A05A Type: AC Servo AMPLIFIER
• Brand: Yaskawa Warranty: 1 Year
• Voltage: 200-230V Frequency: 50/60HZ
• Current: 4.9A Power: 1KW
• High Light: SGDV-7R6A05A AC Servo Amplifier, 1KW AC Servo Drive Amplifier, 3 Phase AC Servo Power Amplifier


Servo motor SGDV Type:
Rated speed: 1500r/min.
Power: 5.5kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: with oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,

Alarm can only turn off the main circuit power supply, easy to maintain SGDV-7R6A05A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL

Parameter setting device:
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2

Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSecurity module SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL
Maximum applicable motor capacity: 0.2kw
Power supply voltage: three phase AC200V
Interface: MECHATROLINK- II communication command type (linear servo motor)
Design sequence: B
Hardware specifications: paint
Matching (software): no matching (standard)
Matching (parameters): no matching (standard)
Optional module: security module
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A01A USER'S MANUAL
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first)
Can easily achieve the best security design of mechanical systems
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions
In addition, the monitoring time and other items can be changed through the parameter
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized. Sigma -V series servo motor SGMGV.
Rated output: 850W (0.85kw)
Power supply voltage: AC200V
Serial encoder: 20 bit absolute value type (standard)
Design sequence: Standard (bolt for silver)
Shaft end: straight shaft with keyway, with screw (optional)
Optional: with hold brake (DC90V)
A variety of mechanical feed shaft drive (high speed feed)
Variety is complete (300W ~ 15kW, with hold brake)
Equipped with a high resolution serial encoder (20 bit)
Standard using IP67


Use example:

• Machine tool
• Transport machinery
• Handling machinery
• Food processing machinery

Rating and specifications:

• Rated time: continuous
• Vibration level: V15
• Insulation resistance: DC500V, 10M, or above
• Using ambient temperature: 0 ~ 40 degrees C
• Excitation mode: permanent magnet type
• Installation method: flange type
• Heat resistance grade: F
• Insulation withstand voltage: AAC1500V 1 minutes (200V), AC1800V 1 minutes (400V) SGDV-7R6A05A Design and Maintenance Manual SGDV-7R6A05A USER'S MANUAL
• Protection mode: fully enclosed self cooling type IP67 (except shaft through part)
• The use of environmental humidity: 20 ~ 80%% (not dew) SGDV-7R6A01A Design and Maintenance Manual SGDV-7R6A05A USER'S MANUAL
• Connection mode: direct connection
• Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
