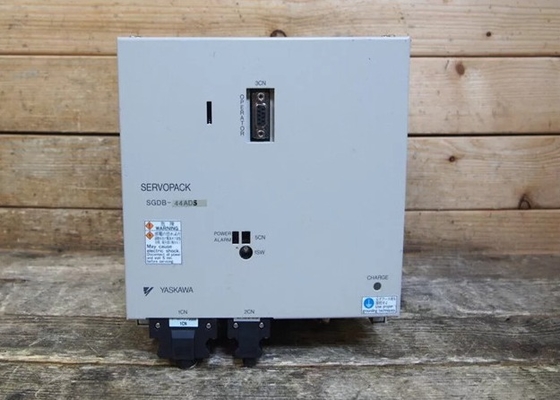

SGDB Series Yaskawa Servo Drives 44ADS Mode Brand New Original

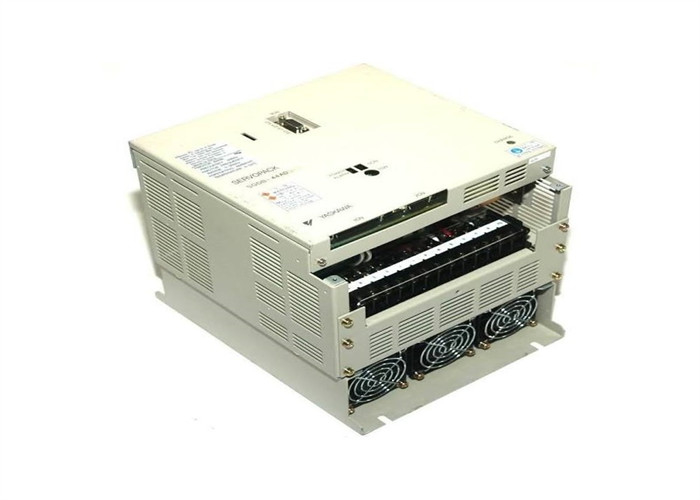

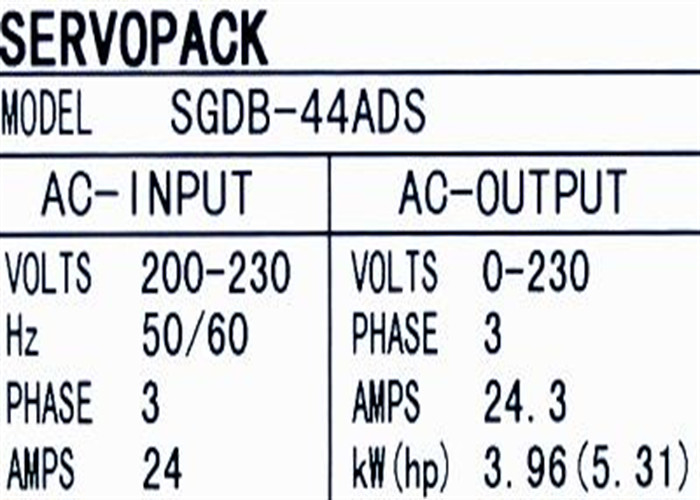

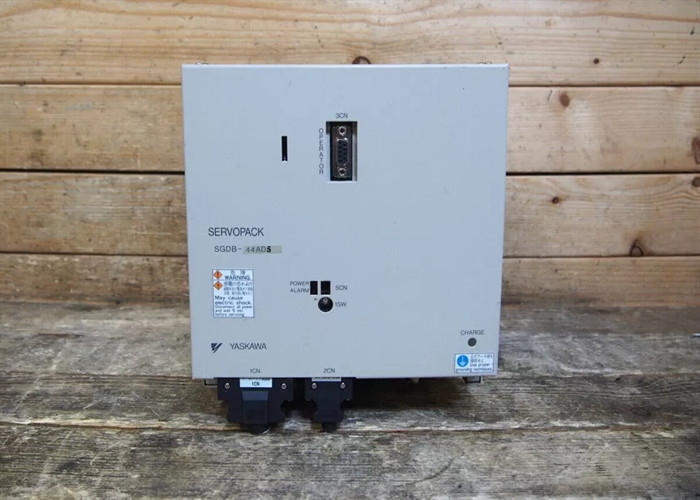

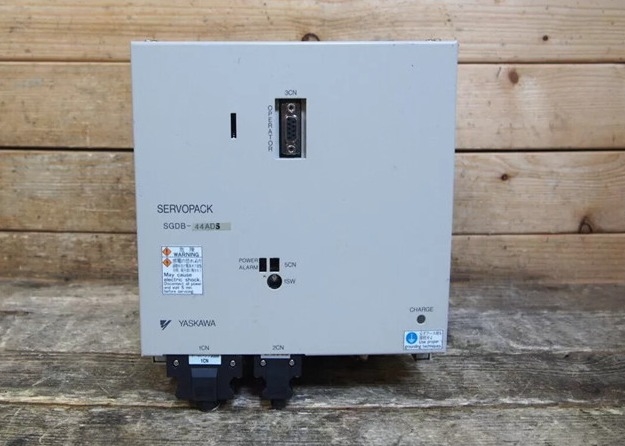

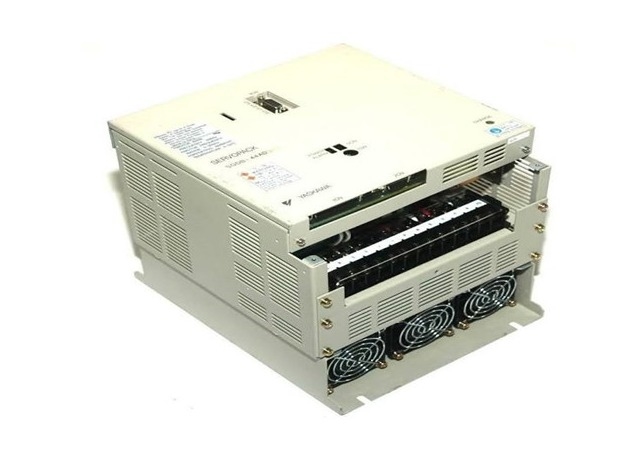

SGDB-44ADS Yaskawa Servo Drives Mode Brand New Original In Box

Description:

Security module.

Maximum applicable motor capacity: 0.05kw.
Power supply voltage: three phase AC200V.

Interface: MECHATROLINK- III communication command type (rotary servo motor).
Design sequence: B.

Hardware specification: base mounting type (standard).
Matching (software): no matching (standard) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Matching (parameters): no matching (standard) SGD7S-2R8A20A

Optional module: security module.
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.

Can easily achieve the best security design of mechanical systems.

Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.

With the use of the servo unit with a security module, so that the system can be simplified and miniaturized. SGMCS small c

capacity type of direct drive servo motor.

Rated torque: M / 17N.
Servo motor outside diameter size: 290mm.

Serial encoder: 20 bit absolute value type (absolute value of 1 circles) (standard).
Design sequence: the size of the outer diameter of the service motor is marked as E model.
Flange specifications: face C, reverse load side (lead).
Optional specifications: no matching.

Under the condition of no speed reducer, the load is directly driven.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 6 ~ 600N / m, maximum speed: 250 ~ 500r/min).

By using 20 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.

Use example:

Semiconductor manufacturing equipment.

Liquid crystal circuit board manufacturing equipment.

Various inspection and test equipment.

Electronic part packaging machine.

IC information processor.

IC inspection equipment.

A variety of automated machinery.

Robot.

Small capacity ratings and specifications:

Rated time: continuous.

Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.

Using ambient temperature: 0 ~ 40 degrees C.

Excitation mode: permanent magnet type.

Installation method: flange type.

Heat resistance grade: A.

Connection mode: direct connection.

Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation.
