XSA-V12801 Schneider Electric 8mm Adjustable Detection Industrial Durable

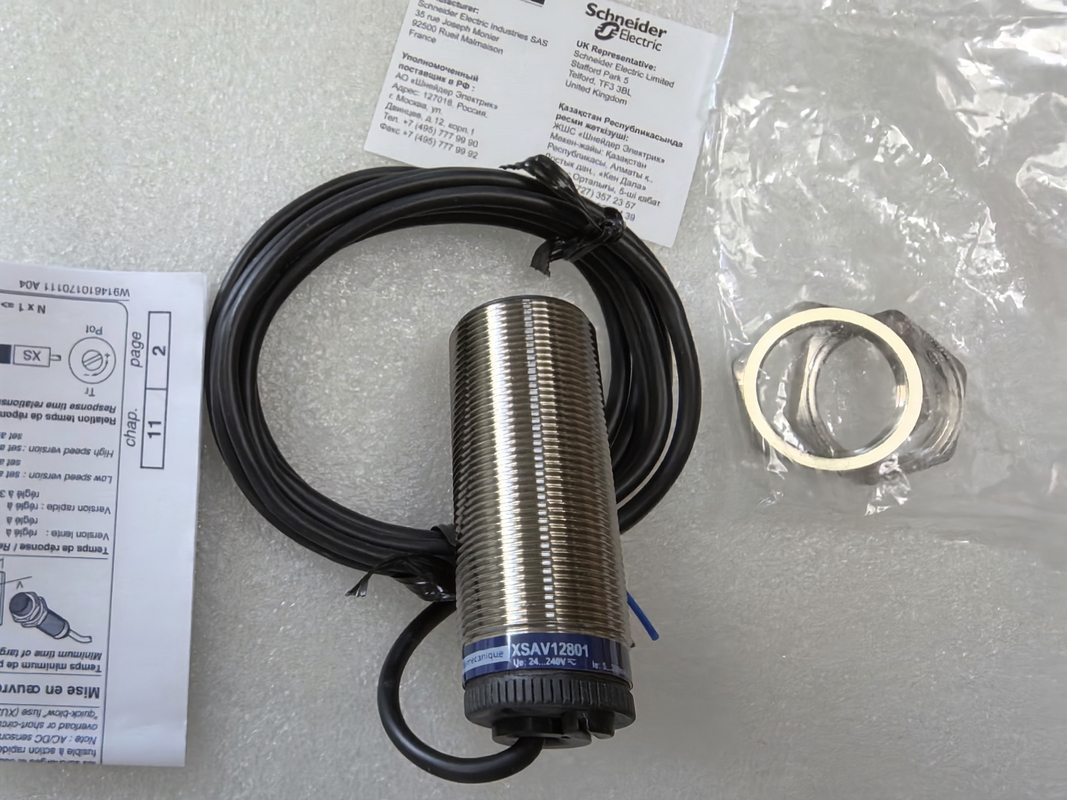

XSA-V12801 is a high-performance inductive proximity sensor from Schneider Electric's Telemecanique XS Advanced series, designed specifically for non-contact detection of metal objects in industrial automation. Its core features are 8mm adjustable detection distance, PNP output, IP67 protection level, suitable for harsh industrial environments.
1. XSA-V12801 Core parameters:
| Detection principle |
Inductive (only detects metals such as iron, aluminum, copper, etc. |
| Detection distance |
8 mm (can be adjusted by side screws to adapt to different metal materials) |
| Power supply voltage |
10-30V DC (wide voltage design, compatible with most industrial power supplies) |
| Output type |
PNP normally open (NO), three wire system (brown:+V, blue: GND, black: signal output) |
| Output current |
≤ 200 mA (can directly drive loads such as relays and PLC inputs) |
| Protection level |
IP67 (dustproof, waterproof, can withstand brief immersion) |
| Shell material |
high-strength engineering plastic (PA), resistant to impact and chemical corrosion |
| Working temperature |
-25 ° C to+70 ° C (suitable for extremely cold or high temperature workshops) |
| Connection method |
Standard 2-meter flexible cable (optional plug model) |
2. XSA-V12801 Feature Highlights:
- Sensitivity adjustable: by adjusting the screw on the side of the sensor, the detection distance can be finely adjusted (such as shortening the distance for aluminum metal).
- anti-interference design: built in electromagnetic shielding layer to avoid electromagnetic interference from devices such as frequency converters and motors.
- status indicator: the red LED light displays the detection status (when lit, it indicates the detection of metal).
- durability: no mechanical contacts, with a lifespan of millions of operations and maintenance free.
3. XSA-V12801 Typical application scenarios
- Automated production line: detecting the position or counting of metal workpieces on the conveyor belt.
- Machine safety: Monitor whether the protective door is closed (such as punching machines, CNC equipment).
- Logistics sorting: Identify metal pallets or cargo boxes.
- Assembly machinery: Ensure that the components are in place before triggering the next process.
