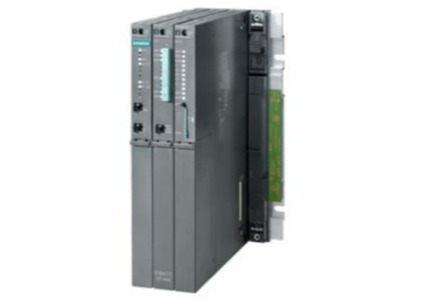

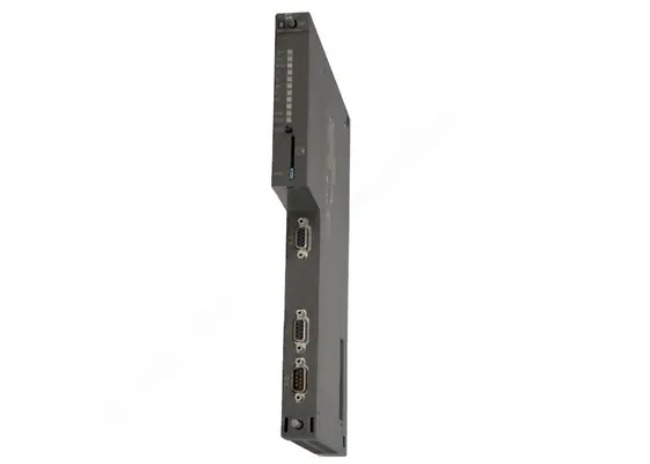

SIEMENS 6DD1607-0AA2 FM458-1 DP APPLICATION MODULE 500 Ms 24 V

SIEMENS 6DD1607-0AA2 FM458-1 DP APPLICATION MODULE 500 Ms 24 V

More information:

Within the SIMATIC S7-400 family, the advanced application module FM 458-1 DP is establishing new benchmarks. This smart module integrates robust arithmetic processing capabilities, high operating speeds, precision, and flexibility—all the traits needed to address a broad range of processing tasks universally, even when dealing with extremely high throughput rates.

For you, this translates to: greater flexibility and cost-effectiveness in executing complex PLC, motion control, and processing tasks.

Communication

• The FM 458-1 DP communicates via its PROFIBUS DP interface, which comes with the following features:
• A consistent bus cycle time, meaning the PROFIBUS DP cycle remains exactly the same length at all times.
• Isochronous operation, where the CPU, I/O, and user program are synchronized with the PROFIBUS cycle.
• Slave-to-slave communication, allowing configured slaves to exchange data directly without requiring any extra configuration work on the FM 458-1 DP.
• Routing functionality, enabling access to all nodes through a single interface—such as MPI (Multi-Point Interface) or PROFIBUS DP, and optionally Industrial Ethernet as well.
• The ability to connect up to 100 drives from the SIMOVERT Masterdrives series or SIMOREG series per ring via the high-speed, fiber-optic SIMOLINK connection.

Advantages

• Seamless integration into SIMATIC S7-400 racks, supporting open-loop and closed-loop control as well as arithmetic operations.
• Software tools STEP 7/CFC and SFC that are identical to those used for SIMATIC S7.
• Sampling times as low as 100 µs, ideal for dynamic motion control and processing solutions.
• Isochronous PROFIBUS DP, featuring a constant-time bus cycle with a clock signal.
• Clock synchronization, ensuring CPUs/I/O and user programs are aligned with a common PROFIBUS clock.
• Routing, diagnostics, and teleservice capabilities available through a single interface.
• The I/O expansion EXM 438-1 delivers extremely fast, synchronizable:
  Digital and analog inputs and outputs
  Speed and absolute value encoder measurement
• The EXM 448/EXM 448-1 communication expansions facilitate quick connection of drives, including support for:
  PROFIBUS DP (as master or slave, without isochronous/clock-synchronized functionality)
  SIMOLINK, the high-speed, high-performance, clock-synchronized fiber-optic cable (included in the EXM 448-1)
