GE Fanuc IC697BEM761 I/O Interface Module Series 90-70 Two 37 PIN Connectors 8 Racks MAX

GE Fanuc IC697BEM761 I/O Interface Module Series 90-70 Two 37 PIN Connectors 8 Racks MAX

More Information:

Product Description

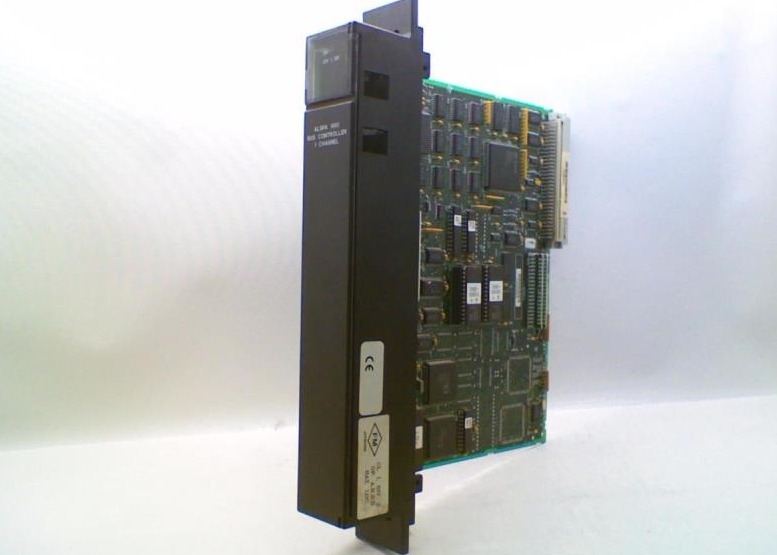

The IC697BEM761 is an input/output (I/O) module specifically engineered for use with IC600-series Programmable Logic Controllers (PLCs). Developed and manufactured by GE Fanuc, it is an integral component of the Series 90-70 product lineup, serving as a critical interface between IC600 PLCs and IC697-series modules.

Designed to be installed in an IC697 rack, the module is fitted with two 37-pin connectors. The lower connector accepts the upstream cable, while the upper connector receives the downstream cable—this downstream connection enables integration with additional racks for system expansion. The IC697 rack paired with this module supports either 128 or 256 I/O references, and the module itself has a current rating of 1.3 Amps. Classified as an enhanced module, it features backplane jumpers that are labeled with rack numbers for simplified identification and setup. For communication with the IC600 CPU, the IC697 rack utilizes a dedicated reserved I/O address, ensuring reliable data transfer between components.

Key Features & Functionalities
Smooth Operation & Termination
To ensure stable and uninterrupted performance, the IC697BEM761 is equipped with line termination resistors for each interface module. These resistors help minimize signal interference and maintain signal integrity, particularly in extended I/O chains.


Rack Addressing Capacity
The module supports a maximum of 8 racks for addressing purposes, providing flexibility for scaling I/O systems to match varying application requirements. Data exchange between the module and the IC600 CPU is facilitated via the I/O bus, enabling efficient real-time communication.


Front-Panel LED Indicators
For intuitive status monitoring and fault diagnosis, the front side of the IC697BEM761 features three distinct LED indicators, each serving a specific purpose:

• "RACK" Indicator: Illuminates to signal faults occurring within the rack.
• "MODULE" Indicator: Alerts users to faults originating in the I/O interface module itself.
• "I/O CHAIN" Indicator: Indicates issues such as downstream rack faults or failures in the I/O bus.
• System Expansion Capability

In applications requiring more than 2000 I/O points, the IC697BEM761 plays a key role in expanding system capacity. It enables the PLC system to accommodate up to 2000 input points and 2000 output points, making it suitable for large-scale industrial automation setups.
