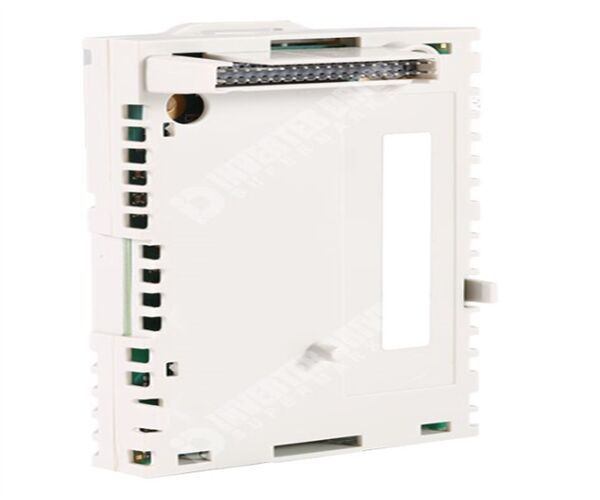

RDIO-01 | ABB | Digital I/O Extension Versatile Digital Module
Description of RDIO-01
Dimension (D x H x W):480 x 82 x 180 mm
Weight:0.66 kg
Operating Voltage:DC 24V
Current Consumption:≤ 100mA
Number of Channels:16 Digital Inputs / 16 Digital Outputs
Communication Protocol:Modbus TCP/IP
Temperature Range:-20°C to +70°C
Housing Material:Aluminum alloy
IP Rating:IP20
Mounting:Panel Mount
The ABB RDIO-01 Digital I/O Extension Module offers an innovative solution for enhancing the functionality of your industrial control system. With its compact design and robust capabilities, it ensures efficient and reliable data processing for various industrial applications.
Featuring 16 digital inputs and 16 digital outputs, this module provides the necessary connectivity for controlling machinery, monitoring processes, and integrating with other components in your automation network.
Engineered to withstand extreme environmental conditions, the RDIO-01 operates within a wide temperature range, ensuring stable performance in diverse industrial settings.
Equipped with high-speed EtherCAT communication, this module ensures fast data transfer rates, enabling real-time response and control in critical applications. Its low power consumption makes it suitable for energy-efficient systems.
Designed with ease of integration in mind, the RDIO-01 can be easily connected to existing systems without requiring extensive modifications. It supports seamless integration with ABB‘s advanced automation platforms, providing a comprehensive solution for industrial automation needs.
Technical specifications for RDIO-01
-
-
Product Category:
DCS System
-
Estimated shipping dimensions:
9.3x6.1x3.8cm
-
-
-
Country of origin:
Sweden
-
Place of shipment:
Xiamen, Fujian, China
-
Degree of protection:
IP20
-
Connectors:
38-pin parallel bus connector
-
Input voltages:
24…250 V DC, 110…230 V AC
-
Logic levels (DC):
"0" < 8 V, "1" > 12 V
-
Input currents:
4 mA (min), 10 mA (typical) at 24 V DC, 4 mA (typical) at 230 VAC
-
Filtering time (selectable for all channels):
ON: 5…10 ms , OFF: 2 ms
-
Max. contact voltage:
120 V DC, 250 V AC
-
Max. contact current / power:
5 A, 24 V DC; 0.4 A, 120 V DC; 1250 VA, 250 VAC
-
Max. continuous current:
2 A rms
-
Minimum current:
5 mA, 24 V DC
-
Max. power consumption:
150 mA (5 V) + 30 mA (24 V)
-
Estimated min. lifetime:
100 000 h
Spare for:
ACS800-104-0170-3,
ACS800-104-0210-3,
ACS800-104-0210-5,
ACS800-104-0210-7,
ACS800-104-0260-3,
ACS800-104-0260-5,
ACS800-104-0260-7,
ACS800-104-0320-3,
ACS800-104-0320-5,
ACS800-104-0320-7,
ACS800-104-0390-3,
ACS800-104-0400-5,
ACS800-104-0400-7,
ACS800-104-0440-7,
ACS800-104-0460-5,
ACS800-104-0510-3,
ACS800-104-0580-7,
ACS800-104-0610-5.
