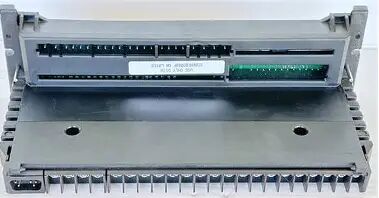

IC660TSD020 GE Terminal Electronics Assembly 0 To 60 Degrees Celsius 10 Amps

Name: IC660TSD020 GE Terminal Electronics Assembly 0 To 60 Degrees Celsius 10 Amps
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: IC660TSD020
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	GE
Certification:	CE
Model Number:	IC660TSD020

Detail Information

Place of Origin:

Japan

Brand Name:

Certification:

Model Number:

IC660TSD020

Brand:

Country Of Origin:

Japan

Model:

IC660TSD020

Type:

Genius I-O

Warranty:

1 Years

Inrush Current:

10 Amps

Single-Source Operating Voltage:

18 To 56 Volts DC

Weight:

1.13 Lbs

Highlight:

High Light

Highlight:

GE Terminal Electronics Assembly

Digital I O Module 10 Amps

IC660TSD020 0 to 60 Celsius

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

New Original Box

Delivery Time:

3-5 working day

Payment Terms:

T/T

Supply Ability:

Product Description

IC660TSD020 GE Terminal Electronics Assembly 0 To 60 Degrees Celsius 10 Amps

IC660TSD020 More information:

The GE Fanuc IC660TSD020 Terminal Assembly is specifically designed for use with the IC660BBD020 I/O block. The compatible electronics assembly for the IC660BBD020 block is the IC660EBD020. The GE Fanuc IC660BBD020 I/O block is a DC-powered 16-circuit source/sink module, featuring configurable I/O functionality that enables seamless interfacing with a broad range of DC actuators and sensors. Rated for 24/48 Volts DC as a source block, it is suitable for use with 3-wire solid-state sensors and electromechanical sensors. Each of the 16 circuits on the IC660BBD020 can be configured as an input, tristate input, or output. The typical power consumption of the IC660BBD020 I/O block is 150 milliamps, with a maximum power current requirement of 300 milliamps.

Both the IC660TSD020 Terminal Assembly and the entire IC660BBD020 block (of which it is a component) operate on a single DC power source with a voltage range of 18 to 56 Volts. When all 16 outputs are operating at 2 Amps, the block’s heat dissipation reaches 68.8 Watts. The module is equipped with individual LEDs for each circuit (displaying load-side status) as well as block-level status indicator LEDs. The IC660BBD020 block boasts an input processing time of 1.7 milliseconds and an input impedance of 5.6 kiloohms. It supports multiple input diagnostic functions, including open wire detection, failed switch diagnosis, and overtemperature monitoring.

In terms of output performance, the block delivers a steady-state current of 2 Amps per circuit, with a maximum inrush current of up to 10 Amps. At 35 degrees Celsius, the total output current of the block is 15 Amps. The minimum recommended load is 50 milliamps when no-load mode is disabled. GE Fanuc recommends an operating temperature range of 0 to 60 degrees Celsius for both the IC660TSD020 Terminal Assembly and the complete IC660BBD020 I/O block.
