ABB S800 I/O COMMUNICATION INTERFACES 3BSE022462R1 TU847 module termination unit

Name: ABB S800 I/O COMMUNICATION INTERFACES 3BSE022462R1 TU847 module termination unit
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 3BSE048845R1
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	3BSE048845R1

Detail Information

Place of Origin:

Sweden

Brand Name:

ABB

Model Number:

3BSE048845R1

Brand:

ABB

Model:

3BSE022462R1

Place Of Origin:

Germany

Product Name:

Digital Input Modules

Warranty:

12 Months

Redundancy:

Part No:

TU847

Condition:

New

Lead Time:

In Stock

Country Of Origin:

Sweden

Highlight:

High Light

Highlight:

ABB S800 I/O communication interface module

TU847 termination unit with warranty

PLC programmable logic controller module

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

ABB S800 I/O COMMUNICATION INTERFACES 3BSE022462R1 TU847 module termination unit

Product Specifications

General info

Article number	3BSE022462R1
Communication protocol	PROFIBUS DP-V1
Master or slave	N/A
Module redundancy	Yes
Hot Swap	No
Type	Redundant CI840/CI840A, Single I/O
Power input	24 V d.c. (19.2 - 30 V)
Mounting	Vertical or Horizontal

Detailed data
Environment and certification
Dimensions

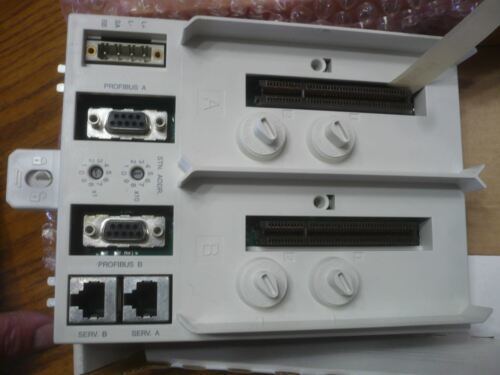

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.

Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).

Features and benefits

• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• ModuleBus connections.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
• DIN rail mounted.

Environmental Commitment

ABB maintains a long-standing commitment to environmental responsibility, having adopted ISO 14001-based environmental management systems and achieved formal certification for years. The company conducts comprehensive Life-cycle Assessments (LCAs) according to ISO 14040-43 standards to evaluate environmental impact throughout product lifecycles, from raw material input to emissions and waste generation.

Product Composition

This environmental declaration covers the S800 I/O input/output modules for industrial process control. The modules feature plastic cases containing printed circuit boards, connectors, electrical conductors, and fasteners, designed for mounting on metallic rails. Each module weighs approximately 0.5 kg (1.1 lbs).

Contact Information

Contact Person: Anna

Email: wisdomlongkeji@163.com

Phone: +0086-13534205279
