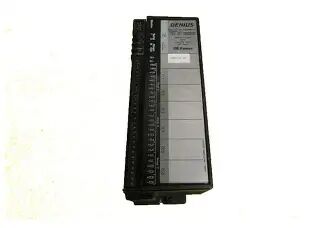

IC660EBA023 GE Genius Thermocouple Input Block Electronic Assembly 300 Volts

Name: IC660EBA023 GE Genius Thermocouple Input Block Electronic Assembly 300 Volts
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: IC660EBA023
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	GE
Certification:	CE
Model Number:	IC660EBA023

Detail Information

Place of Origin:

Japan

Brand Name:

Certification:

Model Number:

IC660EBA023

Brand:

Country Of Origin:

Japan

Model:

IC660EBA023

Type:

Genius I-O

Warranty:

1 Years

Group Isolation:

300 Volts

Power Rating:

9.0 Watts

Weight:

2.06 Lbs

Highlight:

High Light

Highlight:

GE Genius thermocouple input block

300V digital I/O module

thermocouple electronic assembly module

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

New Original Box

Delivery Time:

3-5 working day

Payment Terms:

T/T

Supply Ability:

Product Description

IC660EBA023 GE Genius Thermocouple Input Block Electronic Assembly 300 Volts

IC660EBA023 More information:

Technical specifications for IC660EBA023

Manufacturer: GE Fanuc Emerson

Product Line :Genius I-O

Part Number :IC660EBA023

Weight :2.06 lbs (0.94 kg)

Description: Genius Thermocouple Input Block Electronic Assembly

Application :Genius I/O Block System

Operating Voltage :18 to 56 Volts DC

Group Isolation :300 Volts

Power Rating: 9.0 Watts

Thermocouple Type: J, K, T, E, B, R, S, and N-type Thermocouples

Internal CJC :0 to 60 Degrees Celsius

External CJC Range: -25 to +150 Degrees Celsius

LEDs: 2 LEDs

Built-in Diagnostics: Yes

The GE Fanuc IC660EBA023 Genius I/O Thermocouple Input Block Electronics Assembly is a key component of a 6-channel input block, purpose-built for temperature input monitoring. It is configured to interface with standard thermocouples across all input channels, enabling the detection and precise measurement of low-level voltage input signals.

This electronics assembly is available in two supply forms: either as a standalone unit consisting of a thermocouple block, LED status indicators, and associated electronic circuits; or as an integrated component of a fully factory-assembled I/O block (such as the IC660BBA023 I/O Block), which combines the electronics assembly with a terminal assembly (e.g., the IC660TBA023 Terminal Assembly). The IC660EBA023 houses six input circuits, which are logically divided into three isolated groups rated at 300 VDC. Each group is equipped with two thermocouple circuits and two remote cold junction compensation (CJC) inputs, which serve to provide accurate cold junction compensation for all input measurements.

Compatible with Type J, K, T, E, B, R, S, and N thermocouples, the IC660EBA023 allows each input channel to be configured for CJC using one of three options: an external sensor, an internal sensor, or a user-defined value.

The assembly operates on a DC voltage supply with a rated range of 24/48 VDC (and a functional operating range of 18–56 VDC) and has a nominal power rating of 9.0 W. Each input channel features a voltage measurement range of -25 mV to 150 mV and a measurement resolution of ±10 μV, with an accuracy rating of 8.0 Hz and an amplifier filter drift of ±2 μV per °C. For internal CJC, the module offers a measurement range of 0–60 °C with a resolution of ±0.01 °C. When paired with an external remote CJC, it accepts analog input signals in either voltage or current format, delivering a measurement range of -25–150 °C with an accuracy rating of ±0.1 °C.
