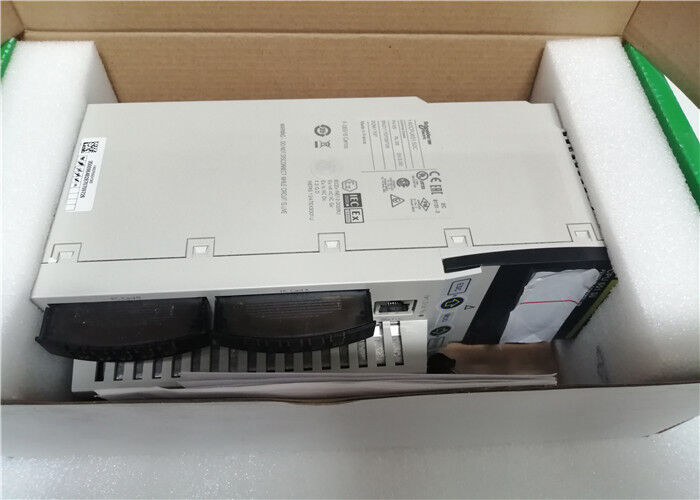

Schneider Electric Unity processor Modicon Quantum 768kB 166MHz 140CPU65150C

Name: Schneider Electric Unity processor Modicon Quantum 768kB 166MHz 140CPU65150C
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 140CPU65150C
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	140CPU65150C

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

140CPU65150C

Brand:

Schneider

Model:

140CPU65150C

Series:

140

Product Name:

Unity Processor

Warranty:

12 Months

KB:

768kB

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider Electric Modicon Quantum PLC

Modicon Quantum 768kB processor

140CPU65150C PLC with 166MHz

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

Schneider Electric Unity processor Modicon Quantum 768kB 166MHz 140CPU65150C

Specifications

Main
Range of product	Modicon Quantum automation platform
Product or component type	Unity processor

Complementary
Clock frequency	166 MHz
Number of slots	10 4 2 6 16
Number of racks	2 - local rack(s)
Number of distributed I/O station	63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)
Number of remote I/O station	31 - 2 rack(s) per S908 remote I/O 31 - 2 rack(s) per ethernet Quantum remote I/O 16 - 2 rack(s) per ethernet X80 remote I/O
Discrete I/O number	31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Analogue I/O number	500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Application specific I/O	Accurate time stamping High-speed interrupt inputs Serial link Counter
Communication service	Ethernet router
Number of optional modules	6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections	1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus (RS232/485 Modbus/ASCII)
Integrated connection type	1 Modbus Plus with 1 Ethernet TCP/IP with 1 Modbus with 1 USB with
Checks	Process control
Memory description	Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 768 kB
Switch function	Key switch memory port on/off
Application structure	1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
Number of instructions per ms	10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead	0.2 ms for fast task 1 ms for master task
Bus current requirement	2160 mA
Local signalling	1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Electrical connection	1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network 1 connector, connector type: RJ45 for connecting Ethernet network 1 connector, connector type: RJ45 for connecting Modbus bus
