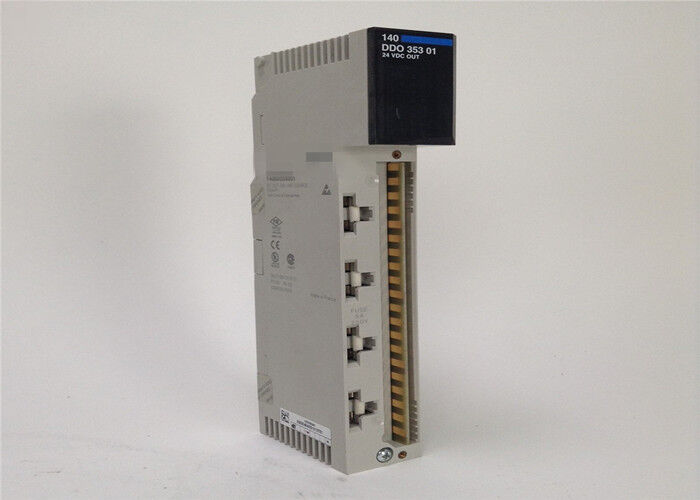

Schneider discrete output module Modicon Quantum 140DDO35301

Name: Schneider discrete output module Modicon Quantum 140DDO35301
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 140DDO35301
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	140DDO35301

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

140DDO35301

Brand:

Schneider

Model:

140DDO35301

Series:

140

Product Name:

Discrete Output Module

Warranty:

12 Months

V DC:

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider Modicon Quantum output module

discrete output PLC module

140DDO35301 programmable logic controller

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

Schneider 140DDO36400 Picture discrete output module Modicon Quantum

Specifications

Range of Product	Modicon Quantum automation platform
Product or Component Type	Dc discrete output module
Discrete output number	32

Complementary
Group of channels	4 groups of 8
Discrete output logic	Positive logic (source)
Addressing requirement	2 output words
Discrete output voltage	24 V DC
Output voltage limits	19.2...30 V
Absolute maximum output	50 V 1 s decaying pulse
Maximum voltage drop	<0.4 V 0.5 A
Maximum load current	16 A per module 4 A per group
Surge current	2 A
Response Time	<= 0.1 ms at state 1 to state 0 <= 1 ms at state 0 to state 1
Maximum leakage current	1 mA 24 V
Load inductance	Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))
Fault indication	Loss of field power Blown fuse
Associated fuse rating	3 A each point 5 A per group
Isolation between channels and bus	1780 Vrms DC for 1 minute
Isolation between group	500 Vrms DC for 1 minute
Protection Type	Internal output protection by 5 A fuse per group
Power dissipation	5 W
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 32 LEDs (green) for input status
Bus current requirement	330 mA
Module format	Standard
Net Weight	0.99 lb(US) (0.45 kg)

Environment
Product Certifications	FM Class 1 Division 2 C-tick RMRS GOST
Standards	CSA C22.2 No 142 UL 508
Resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)

Ordering and shipping details
Category	US1PC2118155
Discount Schedule	PC21
GTIN	3595860026439
Returnability	No

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.4 in (16.3 cm)
Package 1 Width	1.8 in (4.5 cm)
Package 1 Length	12.3 in (31.2 cm)
Package weight(Lbs)	15.5 oz (440.0 g)

Contractual warranty
Warranty (in months)	18

140DDO35301 is a discrete output module of the Modicon Quantum series produced by Schneider Electric. It supports 32 positive logic (source-type) outputs. It is now out of production and only provides service support. This module complies with the EU RoHS environmental protection standard and is suitable for industrial automation control systems. The related technical documents can be obtained from the EcoStruxure Control Expert platform for system upgrades and maintenance. Although it has stopped being sold, it is still running in some existing systems.
