Schneider discrete output module Modicon Quantum 24 V DC 140DDO36400

Name: Schneider discrete output module Modicon Quantum 24 V DC 140DDO36400
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 140DDO36400
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	140DDO36400

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

140DDO36400

Brand:

Schneider

Model:

140DDO36400

Series:

140

Product Name:

Discrete Output Module

Warranty:

12 Months

Modicon:

Quantum

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider Modicon Quantum output module

24V DC discrete output module

PLC discrete output module with warranty

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

Schneider discrete output module Modicon Quantum 24 V DC 140DDO36400

Specifications

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	Dc discrete output module
Discrete output number	96

Complementary
Group of channels	6 groups of 16
Discrete output logic	Negative logic (sink)
Addressing requirement	6 output words
Discrete output voltage	24 V DC
Output voltage limits	19.2...30 V
Maximum voltage drop	<0.4 V 0.5 A
Maximum load current	<= 0.5 A each point <= 19.2 A per module <= 3.2 A each group
Surge current	2 A
Response Time	<= 0.1 ms at state 0 to state 1 <= 0.1 ms at state 1 to state 0
Maximum leakage current	1 mA 24 V
Short-circuit protection	With
Output overload protection	With
Load inductance	Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz
Fault indication	Fault sensing Fault point Loss of field power Fault reporting
Isolation between channels and bus	500 Vrms DC for 1 minute
Power dissipation	7 W
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 96 LEDs (green) for input status
Bus current requirement	250 mA
Module format	Standard
Net Weight	0.99 lb(US) (0.45 kg)

Environment
Product Certifications	C-tick RMRS GOST FM Class 1 Division 2
Standards	CSA C22.2 No 142 UL 508
Resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)

Ordering and shipping details
Category	US1PC2118155
Discount Schedule	PC21
GTIN	3595860026415
Returnability	No

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.4 in (16.3 cm)
Package 1 Width	1.8 in (4.5 cm)
Package 1 Length	12.3 in (31.2 cm)
Package weight(Lbs)	19.2 oz (545.0 g)
Unit Type of Package 2	S03
Number of Units in Package 2	7
Package 2 Height	11.8 in (30.0 cm)
Package 2 Width	11.8 in (30.0 cm)
Package 2 Length	15.7 in (40.0 cm)
Package 2 Weight	9.55 lb(US) (4.33 kg)

Contractual warranty
Warranty (in months)	18

140DRA84000 is a PLC output module from Schneider Electric. It supports one normally open contact (1 NO), with an A-type contact form. It is suitable for discrete quantity output of AC 20–250 V, DC 30–150 V and 5–30 V. Each channel of this module requires one output word address, and the minimum load current is 50 mA. It is widely used in industrial automation control scenarios and has high reliability and fast response characteristics.

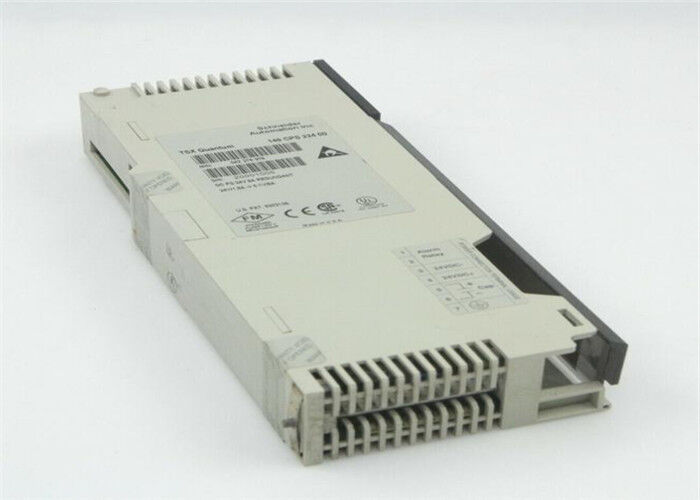

Schneider discrete output module Modicon Quantum 24 V DC 140DDO36400 0

Schneider discrete output module Modicon Quantum 24 V DC 140DDO36400 1
