Schneider discrete output module Modicon Quantum 140DRA84000

Name: Schneider discrete output module Modicon Quantum 140DRA84000
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: 140DRA84000
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	140DRA84000

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

140DRA84000

Brand:

Schneider

Model:

140DRA84000

Series:

140

Product Name:

Discrete Output Module

Warranty:

12 Months

Modicon:

Quantum

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider Modicon Quantum output module

PLC discrete output module

Modicon Quantum 140DRA84000 module

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

Schneider discrete output module Modicon Quantum 140DRA84000

Specifications

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	Relay discrete output module
Discrete output number	16

Complementary
Contacts type and composition	1 NO
Contact form	Form A
Discrete output voltage	20...250 V AC 30...150 V DC 5...30 V DC
Addressing requirement	1 output word
Minimum load	50 mA 20...250 V AC 50 mA 5...30 V DC
Maximum load current	1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4 1 A 250/30 V AC/DC tungsten 2 A 250/30 V AC/DC resistive 140 °F (60 °C) 300 mA 30...50 V DC resistive
Surge current	10 A 10 ms capacitive
Switching capacity in VA	500 VA resistive
Maximum response time on input open	10 ms at state 0 to state 1 20 ms at state 1 to state 0
Mechanical durability	10000000 cycles
Electrical durability	100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 2 A 30 V DC resistive 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 200000 cycles 2 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive
Output overvoltage protection	Internal by varistor, 275 V
Isolation between channels	1780 Vrms AC for 1 minute
Isolation between channels and bus	1780 Vrms AC for 1 minute 2500 V DC for 1 minute
Power dissipation	5.5 W + (0.5 x the number of points on)
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Bus current requirement	1100 mA
Module format	Standard
Net Weight	0.90 lb(US) (0.41 kg)

Environment
Product Certifications	FM Class 1 Division 2 C-tick GOST ABS
Standards	UL 508 CSA C22.2 No 142
Resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)

Ordering and shipping details
Category	US1PC2118155
Discount Schedule	PC21
GTIN	3595861127074
Returnability	Yes

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.4 in (16.3 cm)
Package 1 Width	1.8 in (4.5 cm)
Package 1 Length	12.3 in (31.2 cm)
Package weight(Lbs)	19.2 oz (545 g)

Contractual warranty
Warranty (in months)	18

140DRA84000 is a PLC output module from Schneider Electric. It supports one normally open contact (1 NO), with an A-type contact form. It is suitable for discrete quantity output of AC 20–250 V, DC 30–150 V and 5–30 V. Each channel of this module requires one output word address, and the minimum load current is 50 mA. It is widely used in industrial automation control scenarios and has high reliability and fast response characteristics.

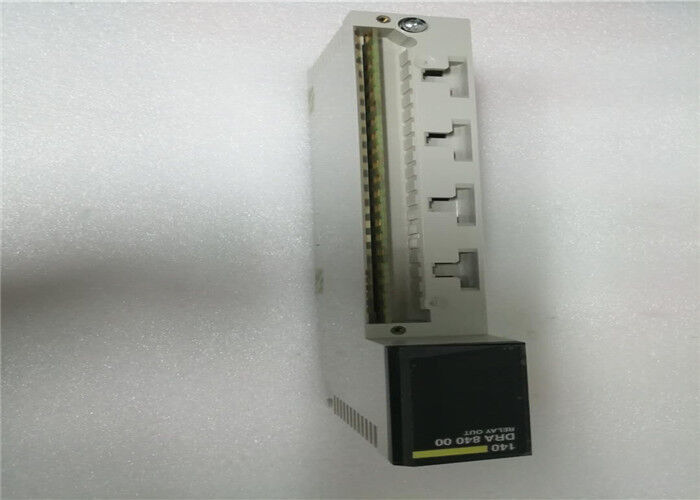

Schneider discrete output module Modicon Quantum 140DRA84000 0

Schneider discrete output module Modicon Quantum 140DRA84000 1
