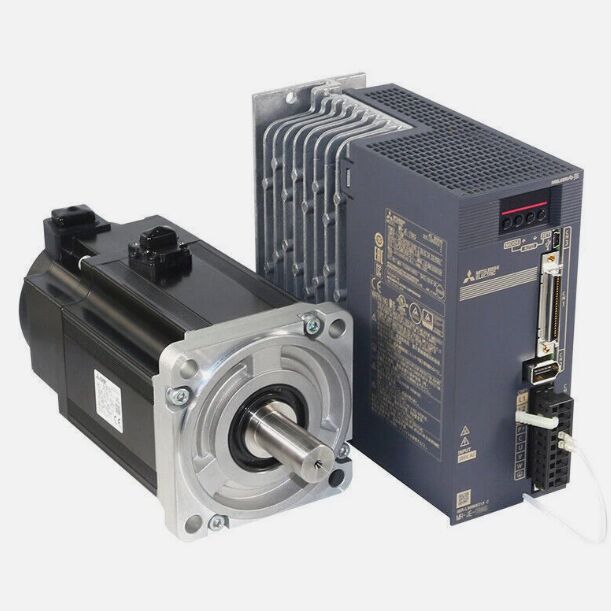

MR-JE-100AS MITSUBISHI Industrial Servo Drives AC 220V / 380V 50/60Hz 170V
MR-JE-100AS Description
The MR-JE-100AS is a high-performance, general-purpose single-axis AC servo amplifier from Mitsubishi Electric’s MELSERVO-JE-AS series, designed for driving 1.0 kW (1000W) servo motors. It supports both single-phase and three-phase 200–240V AC power input, integrates advanced motion control algorithms, and offers easy setup via one-touch auto-tuning. Optimized for industrial automation, it delivers precise position, speed, and torque control with fast response, vibration suppression, and robust protection, compatible with Mitsubishi HG-KN, HG-SN, and HC-KFS series servo motors. The AS variant supports enhanced communication and simplified wiring for flexible integration into compact machinery and production lines.
MR-JE-100AS Key Features
- Easy Setup & Auto-Tuning: One-touch auto-tuning and adaptive filter II eliminate manual parameter adjustment; auto-suppresses mechanical resonance and vibration for quick commissioning.
- High Dynamic Performance: 2.0 kHz speed frequency response, supporting up to 4 Mpps differential pulse input for high-speed, high-precision positioning.
- Flexible Power Input: Accepts single-phase or three-phase AC 200–240V (50/60Hz), suitable for diverse industrial power environments.
- Advanced Vibration Control: Advanced vibration suppression control II and robust filter reduce machine resonance and residual vibration, improving processing accuracy.
- Built-in Safety & Protection: Integrated dynamic brake, overcurrent/overvoltage/overload protection, motor overheat protection, encoder fault detection, and instantaneous power failure ride-through (Tough Drive).
- Energy Efficiency: Built-in regenerative resistor (100W) for energy recovery; low power consumption in standby mode.
- Compact & Space-Saving: Slim panel-mount design, IP20 protection, supports side-by-side dense installation without derating.
- Versatile Communication: USB for PC configuration (MR Configurator2), RS-422/485 for multi-axis control (up to 32 axes), and pulse train input for standard PLC connectivity.
- Global Compliance: CE, UL, RoHS certified for worldwide industrial use.
MR-JE-100AS Materials & Applications
Materials
- Housing: High-strength flame-retardant engineering plastic (UL94 V-0) with aluminum heat-dissipating fins for rigidity and thermal management.
- Internal Components: High-grade silicon steel cores, copper windings, ceramic capacitors, and industrial-grade integrated circuits for stable performance under harsh conditions.
- Connectors & Terminals: Gold-plated metal terminals and insulated industrial connectors for reliable power/signal transmission and anti-oxidation.
- Heat Sink: Extruded aluminum alloy for efficient heat dissipation, ensuring continuous operation at full load.
Typical Applications
- Packaging Machinery: Form-fill-seal machines, labeling machines, baggers, and cartoners requiring precise motion.
- Machine Tools: Small CNC lathes, engraving machines, grinding machines, and linear positioning stages.
- Robotics & Assembly: Pick-and-place robots, collaborative robot joints, and automated assembly lines.
- Semiconductor & Electronics: PCB handling, component insertion, testing equipment, and wafer transfer systems.
- Textile & Printing: Yarn tension control, printing head positioning, and web feeding systems.
- Material Handling: Conveyors, sorting systems, and light-load linear actuators.
- Food & Beverage: Filling machines, capping machines, and packaging automation.
MR-JE-100AS Important Parameters
| Parameter |
Specification |
| Part Number |
MR-JE-100AS |
| Brand |
Mitsubishi Electric (MELSERVO-JE-AS Series) |
| Type |
Single-axis AC Servo Amplifier |
| Rated Output Capacity |
1.0 kW (1000W) |
| Control Modes |
Position control, speed control, torque control |
| Main Circuit Power Supply |
Single/Three-phase AC 200–240V, 50/60Hz (±10%) |
| Control Power Supply |
24V DC ±10%, 0.3A |
| Rated Input Current |
6.0A (3-phase), 10.0A (single-phase) |
| Rated Output Current |
5.0A (3-phase) |
| Speed Frequency Response |
2.0 kHz |
| Max Input Pulse Frequency |
4 Mpps (differential), 200 kpps (open-collector) |
| Encoder Compatibility |
17-bit absolute (131,072 pulses/rev) / incremental encoders |
| Built-in Regenerative Resistor |
100W |
| Dynamic Brake |
Built-in |
| Protection Degree |
IP20 (open type, self-cooled) |
| Ambient Temperature |
0°C to 55°C (operating), -20°C to 65°C (storage) |
| Humidity |
10–90% RH (non-condensing) |
| Dimensions (W×H×D) |
55 × 150 × 125 mm |
| Weight |
Approx. 1.2 kg |
| Compatible Motors |
HG-KN102J, HG-SN102J, HC-KFS13, HC-MFS13 series |
| Certifications |
CE, UL, RoHS |
| Communication |
USB, RS-422/485, Pulse Train Input |
