Variable Speed Servo Motor Industrial , Sgmas 08a2a21 Y2 750w Servo Motor

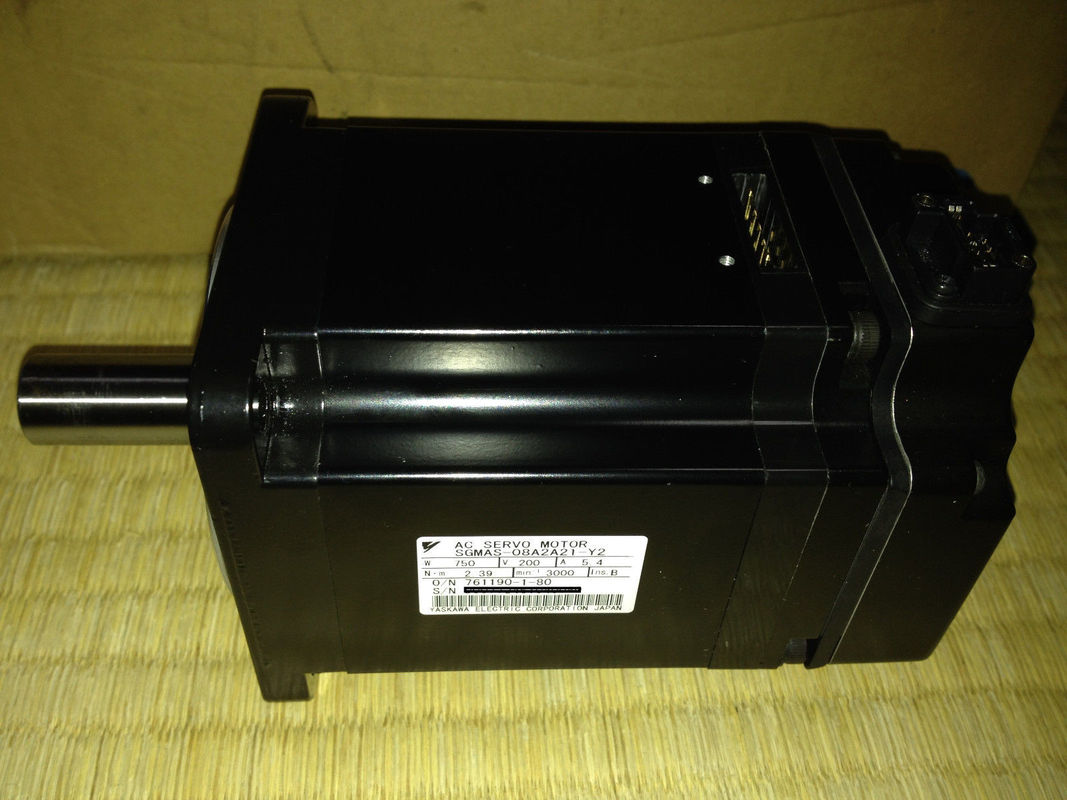

: Large Image : Variable Speed Servo Motor Industrial , Sgmas 08a2a21 Y2 750w Servo Motor

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Model Number:	SGMAS-08A2A21-Y2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	TT West Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Yaskawa	Model:	SGMAS-08A2A21-Y2
Series:	SGMAS	Voltage:	200V
Voltage Product Type:	AC	Power:	750W
INs:	B	Place Of Origin:	Japan
High Light:	ac servo motor , electric servo motor

Industrial Servo Motor SGMAS-04ACA2B Yaskawa 750W 0.75kW NEW

QUICK DETAILS

Power : 750W
Voltage:200V
Voltage : 54A

DESCRIPTION

Motors-AC Servo
SGMAS Sigma II
Yaskawa Electic

SEPCIFICATIONS

Input: 200VAC
Rated Speed: 3000rpm
Continues Output Current: 5.4A
Max Output Current: 16.9A
Rated Torque: 2.39N.m
Instantaneous Peak Torque: 7.16N.m
Output Power: 750W (1HP)
Mass: 4.3kg (5.7lb)

Configurations

Notes:

1. For single-phase 200V 800W SERVOPACKS,the terminal L3 is not used. Do not connect.

2. Remove the lead wire between the terminalsB2 and B3 on the SERVOPACK before connecting an external regenerative resistorto the SERVOPACK.

3. For connecting the AC/DC reactor, refer to5.4.5 AC/DC Reactor for Harmonic Suppression

During every SynqNet controller cycle every axis in every node will receive a new cyclic demand. All drives arenotified of new cyclic data at the same time via a strobe mechanism.

During a SynqNet controller cycle there may be one service channel request per node. Since a node may have multiple axes, it is not possible to handle service channel requests for multiple axes at the same node during the same controller cycle. The service channel request may not occur during the same drive cycle as the cyclicdemand.

The main advantage of this architecture is that the time from controller update until drive update is minimized. Also, the time from drive position update to new controller update is also minimized
