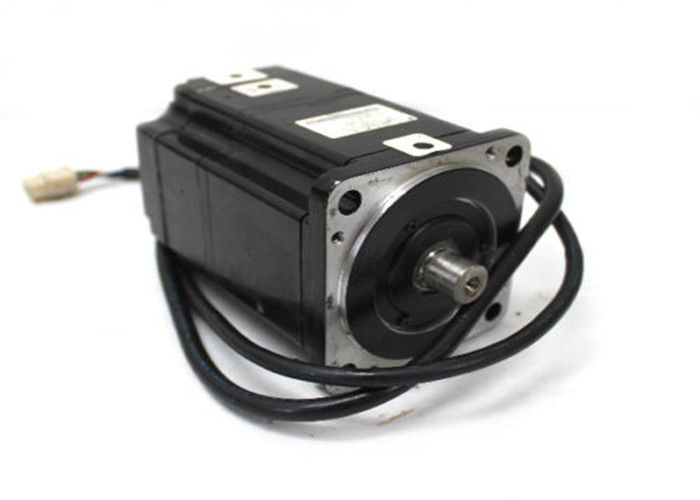

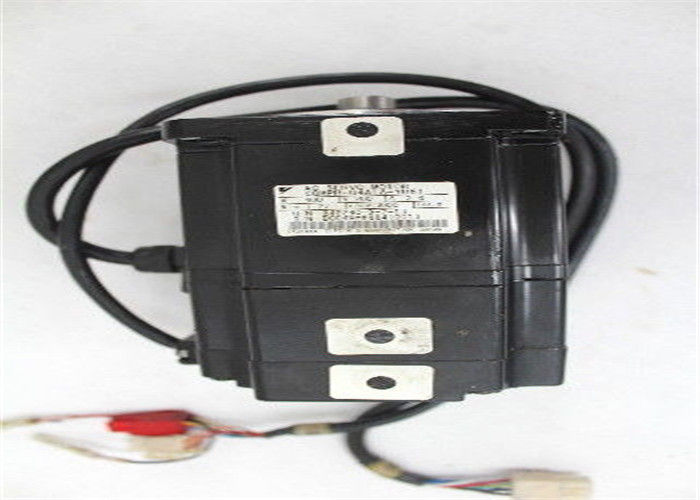

SGMAS 04ACA21 Industrial Servo Motor High Speed Σ-II Series 10KG Weight

Industrial Servo Motor New SGMPH-02AAA21 Yaskawa Electric Japan Sigma 2 (Σ-II Series)

DESCRIPTION

• Yaskawa Electric
• AC Servo Motor
• Sigma 2 (Σ-II Series)

SEPCIFICATIONS

NOTE

• After turning the power OFF, do not touch the power terminals for 5 minutes. High voltage may remain in the Servopack.

• Avoid frequently turning the power ON and OFF. Since the Servopack has a capacitor in the power supply, a high charging current flows (for 0.2 second) when the power is turned ON. Therefore, frequently turning the power ON and OFF causes the main power devices (such as capacitors and fuses) to deteriorate, resulting in unexpected problems.

•  If the Servopack is turned ON immediately after being turned OFF, a power loss alarm may arise. To prevent this, always wait for the time shown in the following table before turning the power ON again:

This sub-section provides typical examples of connecting to main host controllers. Connection to other host controllers is also possible. Connect to the host controller according to the connection examples shown below by referring to technical documentation for the host controller.

NOTE

This sub-section describes signals related to the SGDA Servopack only.

For other signals, refer to the relevant technical documentation. 2) Example of Connecting to PROGIC-8

Test Run in Two Steps

Conduct the test run when wiring is complete. Generally, conducting a test run for servo drives can be difficult , by following the two steps described below, the test run can be performed safely and correctly.

Check that the motor is wired correctly. If the motor fails to rotate properly during a servo drive test run, the cause most frequently lies in incorrect wiring. Conduct a test run for the motor without load according to the procedure described below. For customers who use a servomotor with brake, refer to Section 2.4.4 Supplemental Information on Test Run before starting a test run.

When a host controller such as a programmable controller performs position control, it may be difficult to directly input the speed reference voltage. In this case, constant voltage reference should be input once to ensure correct operation.
