| Condition: | Brand New | Model: | KJ3002X1-BC1 |
|---|---|---|---|
| More Information: | 0.12/0.07 AMP | Output Voltage: | 12V |
| Measurable Range: | 0 ~ 6mV/V | Voltage Drop: | 0.4 V 0.5 A |
| Input: | 100 To 240 V AC | Ambient Temprerature: | 0°C To 60°C Max |
| Highlight: | analog interface module,plc power supply module |
||

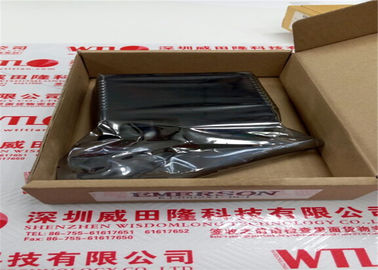

Emerson DeltaV KJ3002X1-BC1 Series 2 24vdc Discr Controller MD Plus Power Supply Redundancy Module
The Emerson KJ3002X1-BC1 is an 8-channel, 2-wire analog input (AI) module designed for the DeltaV distributed control system (DCS)
. It is engineered to process standard 4-20 mA current signals from field instruments like sensors and transmitters, making it a fundamental component for industrial automation and process control in sectors such as oil and gas, petrochemical, power generation, and water treatment
.
High Channel Density: Offers 8 isolated analog input channels in a single module, optimizing control cabinet space and reducing system complexity
.
Signal Isolation: Each input channel is optically isolated from the system and factory tested to 1500 VDC, protecting the system from ground loops and electrical noise in harsh industrial environments
.
Wide Signal Range: Accepts a nominal signal range of 4-20 mA, with a full operational range from 1 to 22.5 mA, including overrange checking capabilities for diagnostics
.
High Accuracy and Resolution: Provides high measurement accuracy (0.1% of span) and a 16-bit resolution for precise data acquisition and process control
.
HART Communication Support (Dependent on Version): Certain versions of this module (e.g., KJ3002X1-BA1) support HART protocol, enabling digital communication with smart field devices for configuration, calibration, and diagnostics alongside the analog signal
.
Robust Environmental Specs: Designed to operate reliably in demanding conditions with an extended temperature range from -40°C to +70°C and resistance to vibration and shock
.
Hot-Swappable Design: Allows for module removal and insertion without needing to power down the entire system, facilitating easier maintenance and reducing downtime
.
Safety Certifications: Holds various safety certifications for use in hazardous environments, including Class I, Division 2, Groups A, B, C, D, and ATEX/Ex ec IIC Gc
.
The specific materials used in the construction of the KJ3002X1-BC1 module are not explicitly detailed in the provided search results. However, based on common practices for robust industrial electronic components:
Printed Circuit Board (PCB): Typically uses FR-4 (a glass-reinforced epoxy laminate material) for the substrate. The board likely features a conformal coating for protection against humidity, dust, and chemicals
.
Electronic Components: Includes silicon-based integrated circuits (ICs), copper for traces and connectors, and possibly gold plating on critical contacts for superior corrosion resistance and reliable connection.
Connectors and Housing: Connectors are often made from durable plastics (e.g., Nylon, PBT) with metal pins. The module's housing is likely constructed from high-strength, flame-retardant engineering plastics or metal alloys for protection and EMI shielding.
Isolation Components: Optocouplers for channel isolation would contain a light-emitting diode (LED) and a phototransistor, typically housed in a plastic package.
The following table summarizes the crucial technical specifications for the Emerson KJ3002X1-BC1 module.
|
Parameter Category |
Specification |
Value / Description |
|---|---|---|
| Number of Channels | 8 | |
| Input Signal Type |
2-wire Analog Input (4-20 mA) |
|
| Nominal Signal Range | 4 to 20 mA | |
| Full Signal Range |
1 to 22.5 mA (with overrange checking)
|
|
| Isolation | Channel-to-System |
1500 VDC
|
| Accuracy | (over temperature range) |
±0.1% of span
|
| Resolution |
16 bits
|
|
| Power Consumption | LocalBus Current (per card) |
120 mA typical, 150 mA maximum (at 12 VDC nominal)
|
| Field Power | per channel / per card |
32 mA max per channel; 300 mA max at 24 VDC (±10%) per card
|
| Operating Temperature |
-40°C to +70°C
|
|
| Communication Support | (Depending on specific version) |
HART pass-through (request/response, variable report)
|
| HART Scan Time | per enabled channel |
600-800 ms (typical)
|
| Safety Certifications |
cULus, UL, CE(EMC), KC, LR, NK, DNV, ABS, RINA, BV; CL.I Div.2 GP.A,B,C,D; CL.I Zone 2 AEx/Ex ec IIC Gc
|
Specifications:
| Brand | EMERSON DELTAV |
| Condition | New with factory packaging |
| Model | KJ3002X1-BC1 |
| Revision | B / E / V |
| Type | Interface Module |
| Shipping Weight | 0.8 lbs |
| Shipping Demensions | 9.00 * 5.50 * 2.00 in |
| Warranty | One Year |
