3000rpm Industrial Servo Motor Used In Cnc Machine SGMJV-04ADE6S-SGDV-2R8A01B

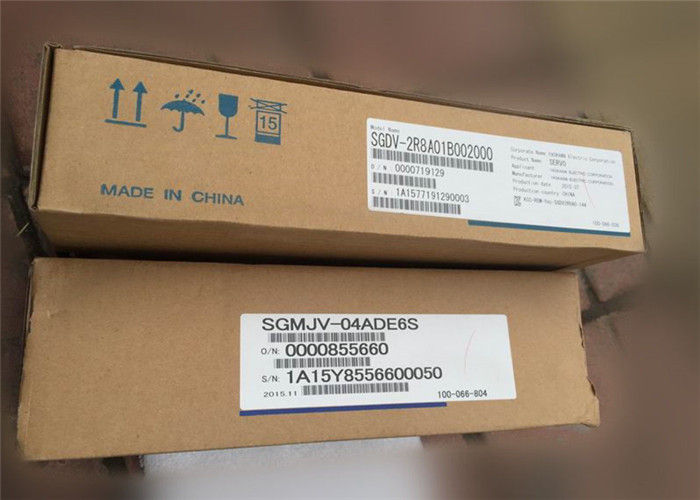

: Large Image : 3000rpm Industrial Servo Motor Used In Cnc Machine SGMJV-04ADE6S-SGDV-2R8A01B

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Model Number:	SGMJV-04ADE6S+SGDV-2R8A01B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	TT West Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Yaskawa	Model:	SGMJV-04ADE6S+SGDV-2R8A01B
Series:	SGMJV	Voltage:	220V
Voltage Product Type:	AC	Power:	400W
Weight:	1.45 Kg	Place Of Origin:	Japan
High Light:	ac servo motor , electric servo motor

Industrial Servo Motor SGMJV-04ADE6S-SGDV-2R8A01B 400w 3000rpm 1 27N m drive kits

PRODUCT DETAILS

AC Voltage : 220V
Application : CNC
Brand Name : YASKAWA
Certification : CE, ROHS, UL
Efficiency : IE 2
Frequency : 50/60Hz
Model Number : SGMJV-04ADE6S+SGDV-2R8A01B
output : 400
Output Power : 400W
Phase : Three-phase
phase : 3
Place of Origin : Japan
Power : 400w
power supply : AC
Protect Feature : Drip-proof
protect feature : Drip proof
speed : 6000
Type : Servo Motor
type : with brake
voltage : 220

PRODUCT　DESCRIPTION

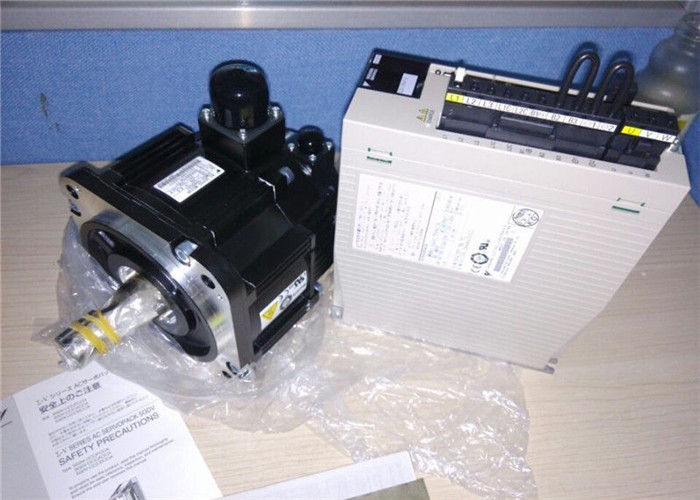

Genuine Japan YASKAWA 400W servo motor SGMJV-04ADE6S+SGDV-2R8A01B
Power: 100W-3KW
Motor frame size: 46x46mm to 200x200mm
Voltage: 200v 220V 460V 500V
Torque: 0.32-21.48N.M

Safety Precautions

Never touch any rotating motor parts while the motor is running.Failure to observe this warning may result in injury.

Before starting operation with a machine connected, make sure that an emergency stop can be
applied at any time.Failure to observe this warning may result in injury or damage to the product.
Never touch the inside of the SERVOPACKs.
Failure to observe this warning may result in electric shock.
Do not remove the cover of the power supply terminal block while the power is ON.Failure to observe this warning may result in electric shock.
After the power is turned OFF or after a voltage resistance test, do not touch terminals while the
CHARGE lamp is ON.Residual voltage may cause electric shock.
Follow the procedures and instructions provided in this manual for trial operation.Failure to do so may result not only in faulty operation and damage to equipment, but also in personal injury.
The multi-turn output range for the Σ-V Series absolute position detecting system is different from
that of earlier systems (15-bit and 12-bit encoders). In particular, change the system to configure
the Σ series infinite-length positioning system with the Σ-V Series.
The multi-turn limit value need not be changed except for special applications.Changing it inappropriately or unintentionally can be dangerous.
If the Multi-turn Limit Disagreement alarm occurs, check the setting of parameter Pn205 in the SER-VOPACK to be sure that it is correct.If Fn013 is executed when an incorrect value is set in Pn205, an incorrect value will be set in the encoder. The
alarm will disappear even if an incorrect value is set, but incorrect positions will be detected, resulting in adangerous situation where the machine will move to unexpected positions.
Do not remove the front cover, cables, connectors, or optional items from the upper front of the
SERVOPACK while the power is ON.Failure to observe this warning may result in electric shock.
Do not damage, press, exert excessive force on, or place heavy objects on the cables.
Failure to observe this warning may result in electric shock, stopping operation of the product, or fire.
Provide an appropriate stopping device on the machine side to ensure safety. The holding brake ona servomotor with a brake is not a stopping device for ensuring safety.
Failure to observe this warning may result in injury.
The person who designs a system using the safety function (Hard Wire Baseblock function) must
have full knowledge of the related safety standards and full understanding of the instructions in thismanual.Failure to observe this warning may result in injury.
Connect the ground terminal according to local electrical codes (100 Ω or less for a SERVOPACK
with a 100 V, 200 V power supply, 10 Ω or less for a SERVOPACK with a 400 V power supply).
Improper grounding may result in electric shock or fire.
Installation, disassembly, or repair must be performed only by authorized personnel.
Failure to observe this warning may result in electric shock or injury

MAIN SPECIFICATIONS
You can find the most detailed specifications and installation dimensions for this servo motor with driver from bellowing information:
