140CPU67160 Multi Mode Modicon Quantum PLC Unity Processor 266 MHz Frequency

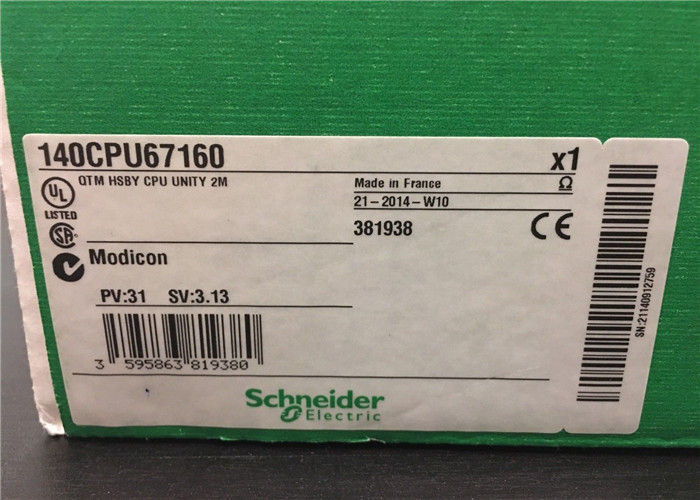

140CPU67160 Quick details:
- SCHNEIDER ELECTRIC
- MODICON
- 140-CPU-671-60
- 140CPU67160
- CPU MODULE QUANTUM PROCESSOR HSBY 2048/7168K
- AVAILABLE
- New one with one year warranty and used one with six months
More Info on the 140CPU67160:
Unity Hot Standby Processor With Multimode Ethernet - 1024 Kb - 266 Mhz
Quantum | 140CPU67160 | Modicon | 140 CPU 671 60 | Processor HSBY UNITY 2048/7168K
Quantum programmable controllers have been developed to comply with the main national and international standards in respect of the electronic equipment used in process automation.
Specifications:
| Manufacturer: |
Modicon Quantum |
| Series: |
Quantum CPUs |
| Weight: |
2 lb |
| Product or component: |
Unity processor |
| Mode of transmission: |
Multimode |
| Clock frequency: |
266 MHz |
| Number of slots: |
10 |
|
16 |
|
2 |
|
4 |
|
6 |
| Number of racks: |
2 - local rack(s) |
| Number of distributed I/O station: |
63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: |
31 - 2 remote rack(s) |
| Discrete I/O number: |
8000 inputs, 8000 outputs - distributed - per network |
|
31744 inputs, 31744 outputs - remote |
|
Unlimited (26 slots max) - local - forbidden in Hot Standby application |
| Analogue I/O number: |
Unlimited (26 slots max) - local - forbidden in Hot Standby application |
|
500 inputs, 500 outputs - distributed - per network |
|
1984 inputs,1984 outputs - remote |
| Application specific I/O: |
Accurate time stamping |
|
Counter |
|
High-speed interrupt inputs |
|
Serial link |
| Number of optional modules: |
6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: |
Unlimited (AS-Interface) - local |
|
6 (Profibus DP) - local |
|
6 (Modbus Plus) - local |
|
6 (Ethernet TCP/IP) - local |
|
4 (AS-Interface) - remote |
|
2 (AS-Interface) - distributed |
|
1 (USB) |
|
1 (Modbus) - RS232/485 Modbus/ASCII |
| Integrated connection type: |
1 Ethernet TCP/IP |
|
1 Modbus |
|
1 Modbus Plus |
|
1 USB |
| Checks: |
Hot standby |
|
Process control |
| Memory description: |
Internal RAM 1024 kB - 512 kB for data |
|
Expandable 8 MB - file storage with PCMCIA card |
|
Expandable 7168 kB - program with PCMCIA card |
| Switch function: |
Key switch memory port on/off |
| Application structure: |
4 auxiliary tasks - forbidden in Hot Standby application |
|
32 timer interrupt tasks - forbidden in Hot Standby application |
|
128 interrupt tasks - forbidden in Hot Standby application |
|
128 I/O interrupt tasks - forbidden in Hot Standby application |
|
1 periodic fast task - forbidden in Hot Standby application |
|
1 cyclic/periodic master task |
| Execution time per instruction: |
0.4...0.5 µs floating points |
|
0.0525...0.075 µs Boolean |
|
0.045...0.06 µs on word |
|
0.045...0.06 µs on fixed-point arithmetic |
| Execution time for 1 K instruction: |
10.28 100 % Boolean |
|
10.07 65 % Boolean and 35 % numerical |
| System overhead: |
1 ms - master task |
|
0.2 ms - fast task |
| Bus current requirement: |
2500 mA |
| Local signalling: |
1 LED red for Ethernet collision |
|
1 LED green for Ethernet activity (COM) |
| Electrical connection: |
1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 Km |
|
1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network |
|
1 connector, connector type: RJ45 for connecting Modbus bus |
|
1 connector, connector type: RJ45 for connecting Ethernet network |
ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.
1 Primary ring, copper/fiber optic medium
2 Ethernet DIO secondary ring, copper medium only
3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140NOE771
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
