Control Techniques SP1405 Variable Frequency Drive Phase Converter Lift Spare Parts

2.2KW Variable Frequency Inverter Emerson CT Inverter SP1404 Unidrive SP

Description

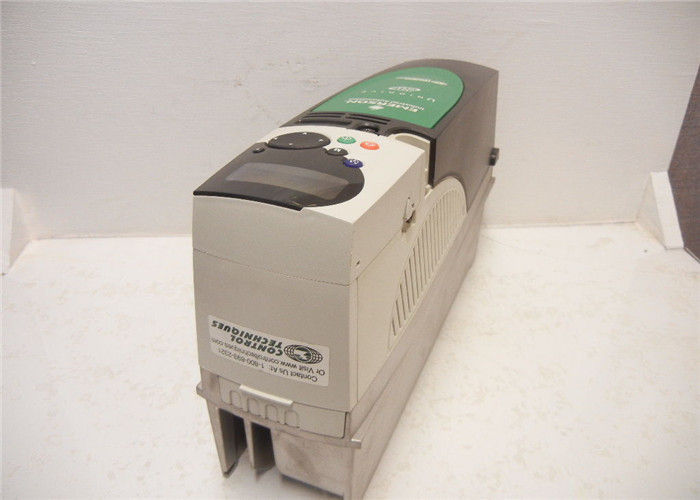

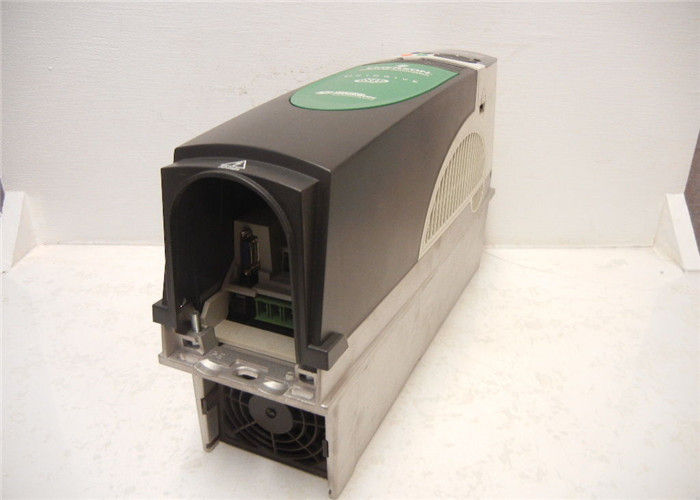

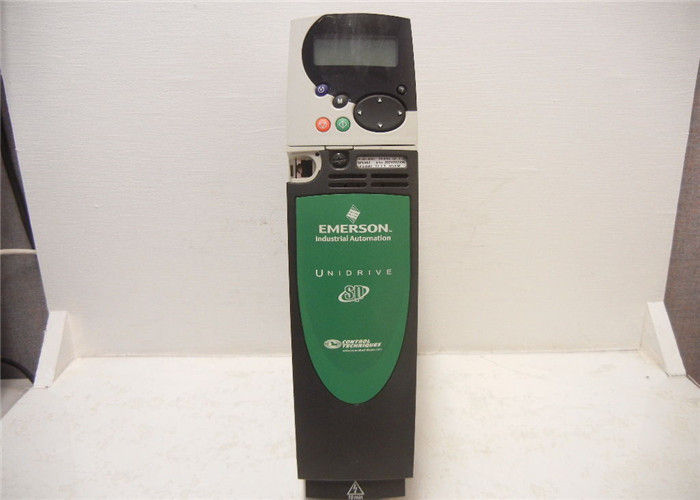

The Inverter SP1405 is a 3kW, 7.6A, 380...480V AC variable frequency drive from the Unidrive SP range manufactured by Control Techniques. As an official Control Techniques distributor, Northern Industrial supply the whole range of Unidrive SP variable frequency drives, including options to expand the functionality of the Inverter SP1405 inverter. Control Techniques design all of their inverters to be easy to install and commission, and the Unidrive SP is no different.

High Performance Motor Control

The Unidrive SP Inverter SP1405 is capable of controlling induction motors, asynchronous servo and synchronous servo motors thanks to its selection of control modes. By using the keypad, you can configure your variable frequency drive to be operated in the following modes:

• Servo - Precision, dynamic control supporting a wide range of rotary and linear motors
• Closed Loop Vector - Ultimate precision control of induction motors offering full motor torque at zero speed
• RFC Mode (Rotor Flux Control) - Superior dynamic performance and stability without a feedback device
• Open Loop Vector - Good open loop motor performance with minimum configuration
• Open Loop V/F Control - A simple control algorithm that is ideal for parallel motors
• Regenerative - Active front end control mode for harmonic elimination and regeneration

Many Feedback Encoder Options

The Unidrive SP Inverter range has the hardware needed to connect to virtually any feedback encoder type, which enables the designer to select the most appropriate technology for the application.Incremental - Provides a good balance of cost and performance

• SinCos - Offers increased position resolution for precision and low speed applications
• SSI - Offers absolute position feedback
• EnDat and HIPERFACE - These encoders transfer position data using a high-speed communications network, often combined with SinCos technology

Widest Range of System Integration Features

Select the level of integrated automation/motion control, connectivity and I/O that you need by using the plug-in option modules compatible with the Unidrive SP. Inverter SP1405 has room for three option modules, which you can select from the huge range of system integration features. Northern Industrial stock a wide range of option modules that are available for immediate despatch.

• Input/Output options - Including SM-I/O 32, SM-I/O Plus, SM-I/O Lite
• PLC/Motion functionality options - Including SM-Applications Lite V2, SM-Applications Plus, SM-EZMotion, SM-Register
• Communications options - Including SM-EtherCAT, SM-LON, SM-Profibus DP, SM-Interbus, SM-DeviceNet, SM-Ethernet, SM-CANopen, SM-SERCOS, SM-CAN, SM-PROFINET
• Feedback options - Including SM-Universal Encoder PLus, SM-Encoder Plus, SM-Resolver, SM-Encoder Output Plus

Simplify Set Up with a Smartcard

Supplied with every Unidrive SP, including the 3kW SP1405 drive, the Smartcard can be used to copy and back up parameter sets, making it easy to commission new drives. The Smartcard enables you to:

• Store parameters and programs
• Simplify drive maintenance and commissioning
• Set sequential build of machines up quickly
• Machine upgrades can be stored on a Smartcard and sent to the customer for installation
