| Product Name: | Frequency Inverter | Model: | Unidrive M |
|---|---|---|---|
| Type: | DC/AC Inverters | Series 1: | Unidrive M101 |
| Series 2: | Unidrive M200 | Series 3: | Unidrive M300 |
| High Light: | variable frequency converter,vfd frequency converter |
||

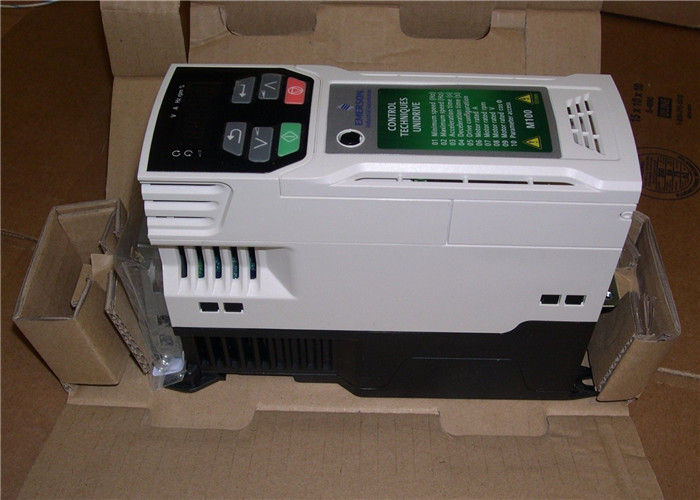

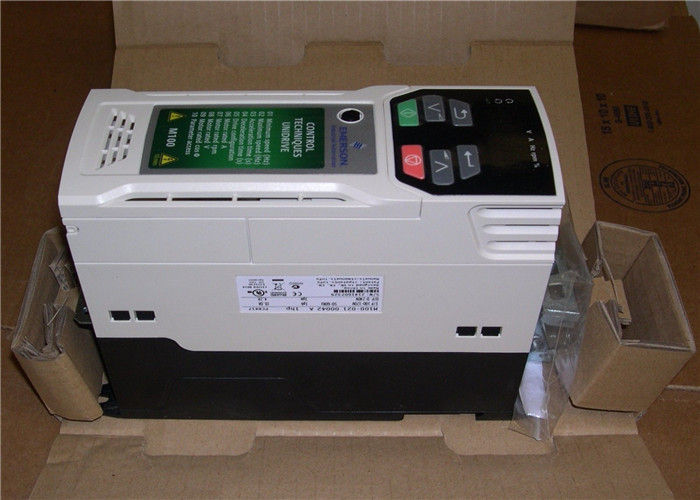

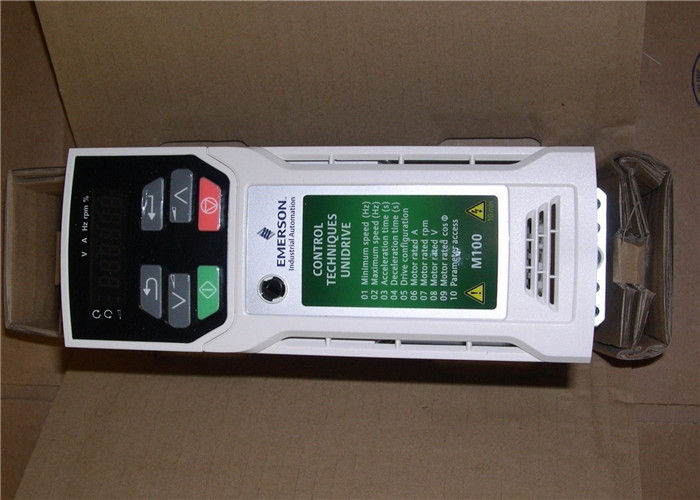

Emerson Unidrive M variable frequency inverter M101 / M200 / M300
Superseded of Commander SK
| Unidrive M | Features |
|
Unidrive M101 |
For Commander SK users who do not require: |
|
Unidrive M200 |
For Commander SK users. |
|
Unidrive M300 |
For Commander SK customers who require STO inputs to their product: |
Migration path by product number for Commander SK to M101, M200 or M300
Table one
| Frame Size | 100/120 VAC | Frame Size | 100/120 VAC |
| A | SKA1100025 | 1 | M101 to M300-01100017A |
| A | SKA1100037 | 1 | M101 to M300-01100024A |
| B | SKB1100075 | 2 | M101 to M300-02100042A |
| B | SKB1100110 | 2 | M101 to M300-02100056A |
Table two
| Frame Size | 200/240 VAC | Frame Size | 200/240 VAC |
| A | SKA1200025 | 1 | M101 to M300-01200017A |
| A | SKA1200037 | 1 | M101 to M300-01200024A |
| A | SKA1200055 | 1 | M101 to M300-01200033A |
| A | SKA1200075 | 1 | M101 to M300-01200042A |
| B | SKBD200110 | 2 | M101 to M300-02200056A |
| B | SKBD200150 | 2 | M101 to M300-02200075A |
| C | SKCD200220 | 3 | M101 to M300-03200100A |
| D | SKDD200300 | 4 | M101 to M300-04200133A |
| D | SKD3200400 | 4 | M101 to M300-04200176A |
| 2 | SK2201 | 4 | M101 to M300-04200133A |
| 2 | SK2202 | 4 | M101 to M300-04200176A |
| 2 | SK2203 | 5 | M200 to M300-05200250A |
| 3 | SK3201 | 6 | M200 to M300-06200330A |
| 3 | SK3202 | 6 | M200 to M300-06200440A |
| 4 | SK4201 | 7 | M200 to M300-07200610A |
| 4 | SK4202 | 7 | M200 to M300-07200750A |
| 4 | SK4203 | 7 | M200 to M300-07200830A |
Table three
| Frame Size | 380/480 VAC | Frame Size | 380/480 VAC |
| B | SKB3400037 | 2 | M101 to M300-02400013A |
| B | SKB3400055 | 2 | M101 to M300-02400018A |
| B | SKB3400075 | 2 | M101 to M300-02400023A |
| B | SKB3400110 | 2 | M101 to M300-02400032A |
| B | SKB3400150 | 2 | M101 to M300-02400041A |
| C | SKC3400220 | 3 | M101 to M300-03400056A |
| C | SKC3400300 | 3 | M101 to M300-03400073A |
| C | SKC3400400 | 3 | M101 to M300-03400094A |
| D | SKD3400550 | 4 | M101 to M300-04400135A |
| D | SKD3400750 | 4 | M101 to M300-04400170A |
| 2 | SK2401 | 4 | M101 to M300-04400135A |
| 2 | SK2402 | 4 | M101 to M300-04400170A |
| 2 | SK2403 | 5 | M200 to M300-05400270A |
| 2 | SK2404 | 5 | M200 to M300-05400300A |
| 3 | SK3401 | 6 | M200 to M300-06400350A |
| 3 | SK3402 | 6 | M200 to M300-06400420A |
| 3 | SK3403 | 6 | M200 to M300-06400470A |
| 4 | SK4401 | 7 | M200 to M300-07400660A |
| 4 | SK4402 | 7 | M200 to M300-07400770A |
| 4 | SK4403 | 7 | M200 to M300-07401000A |
| 5 | SK5401 | 8 | M200 to M300-08401340A |
| 5 | SK5402 | 8 | M200 to M300-08401570A |
| 6 | SK6401 | 9A | M200 to M300-09402000A |
| 6 | SK6402 | 9A | M200 to M300-09402240A |
Table four
| Frame Size | 500/575 VAC | Frame Size | 500/575 VAC |
| 3 | SK3501 | 5 | M200 to M300-05500040A |
| 3 | SK3502 | 5 | M200 to M300-05500069A |
| 3 | SK3503 | 5 | M200 to M300-05500069A |
| 3 | SK3504 | 6 | M200 to M300-06500100A |
| 3 | SK3505 | 6 | M200 to M300-06500150A |
| 3 | SK3506 | 6 | M200 to M300-06500190A |
| 3 | SK3507 | 6 | M200 to M300-06500230A |
| 4 | SK4603 | 6 | M200 to M300-06500290A |
| 4 | SK4604 | 6 | M200 to M300-06500350A |
| 4 | SK4605 | 7 | M200 to M300-07500440A |
| 4 | SK4606 | 7 | M200 to M300-07500550A |
| 5 | SK5601 | 8 | M200 to M300-08500630A |
| 5 | SK5602 | 8 | M200 to M300-08500860A |
| 6 | SK6601 | 9A | M200 to M300-09501040A |
| 6 | SK6602 | 9A | M200 to M300-09501310A |
Table five
| Frame Size | 500/690 VAC | Frame Size | 500/690 VAC |
| 4 | SK4601 | 7 | M200 to M300-07600190A |
| 4 | SK4602 | 7 | M200 to M300-07600240A |
| 4 | SK4603 | 7 | M200 to M300-07600290A |
| 4 | SK4604 | 7 | M200 to M300-07600380A |
| 4 | SK4605 | 7 | M200 to M300-07600440A |
| 4 | SK4606 | 7 | M200 to M300-07600540A |
| 5 | SK5601 | 8 | M200 to M300-08600630A |
| 5 | SK5602 | 8 | M200 to M300-08600860A |
| 6 | SK6601 | 9A | M200 to M300-09601040A |
| 6 | SK6602 | 9A | M200 to M300-09601310A |
Specification
