| Product Name: | Frequency Inverter | Model: | Unidrive M |
|---|---|---|---|
| Application: | Servo Control | Serier 1: | MEV1000 |
| Serier 2: | MEV2000 | Serier 3: | MEV3000 |
| Highlight: | variable frequency converter,vfd frequency converter |
||

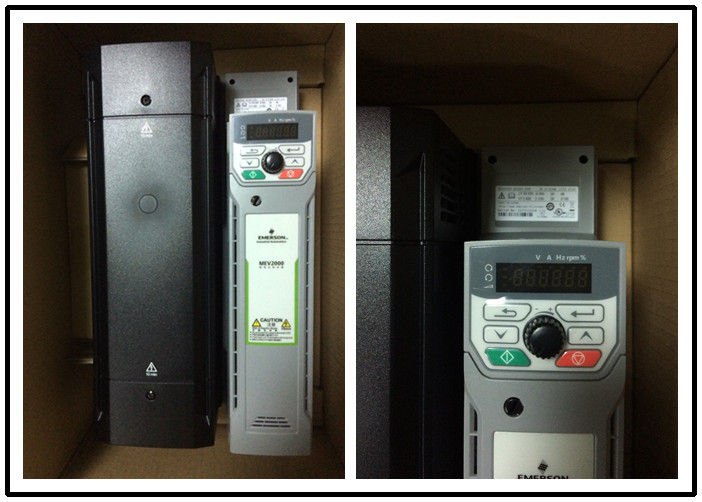

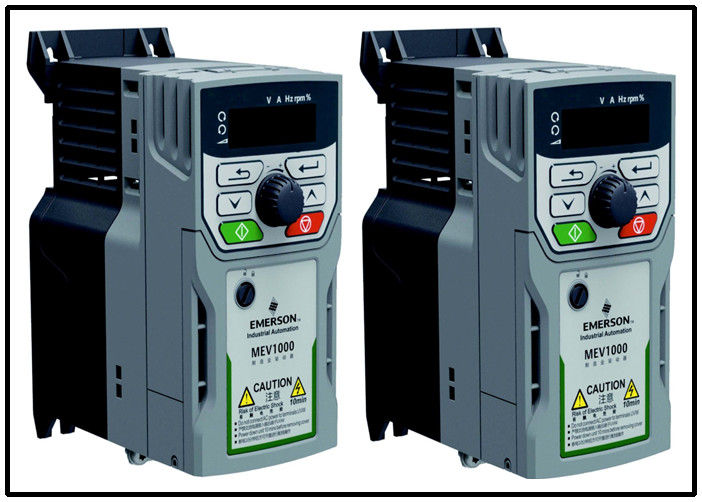

MEV1000-20004-000 Emerson Variable Frequency Inverter MEV1000 / MEV2000 / MEV3000
| Model MEV1000 | Input current (A) | Fuse rating (A) | Input/output conductor | Maximum output current (A) | Rated capacity (KW) | ||
|---|---|---|---|---|---|---|---|
| Input wire (mm2) | Output wire (mm2) | Heavy duty * | Normal duty** | ||||
| 20004 | 5.3 | 6 | 1 | 1 | 2.4 | 0.37 | |
| 20005 | 8.3 | 10 | 1 | 1 | 3.3 | 0.55 | |
| 20007 | 10.4 | 16 | 1 | 1 | 4.2 | 0.75 | |
| 20011 | 14.9/7.4 | 20 | 2.5 | 1 | 5.6 | 1.1 | |
| 20015 | 18.1/9.1 | 20 | 2.5 | 1 | 7.5 | 1.5 | |
| 20022 | 23.9/12.8 | 25 | 4 | 1.5 | 10 | 2.2 | |
| 40004 | 2.1 | 6 | 1 | 1 | 1.3 | 0.37 | |
| 40005 | 2.6 | 6 | 1 | 1 | 1.8 | 0.55 | |
| 40007 | 3.1 | 6 | 1 | 1 | 2.3 | 0.75 | |
| 40011 | 4.7 | 6 | 1 | 1 | 3.2 | 1.1 | |
| 40015 | 5.8 | 10 | 1 | 1 | 4.1 | 1.5 | |
| 40022 | 8.3 | 10 | 1 | 1 | 5.6 | 2.2 | |
| 40030 | 10.2 | 16 | 1.5 | 1 | 7.3 | 3 | |
| 40040 | 13.1 | 16 | 2.5 | 1.5 | 9.4 | 4 | |
| 40055 | 14 | 20 | 2.5 | 2.5 | 13.5 | 5.5 | |
| 40075 | 18.5 | 25 | 4 | 2.5 | 17 | 7.5 | |
| 40110 | 26 | 40 | 6 | 6 | 27 | 30 | 11/15 |
| 40150 | 32 | 63 | 10 | 10 | 35 | 38 | 15/18.5 |
Note: MEV1000 is rated with Heavy duty current for the power ranging from 0.37KW to 7.5KW, and with Heavy duty and Normal duty current respectively for the power ranging from 11KW to 110KW. *Heavy duty: constant torque load. **Normal duty: fan and water pump load, etc..
Models
|
MEV1000-20004-000 |
MEV1000-20005-000 |
MEV1000-20007-000 |
MEV1000-20011-000 |
|
MEV2000-40004-000 |
MEV2000-40005-000 |
MEV2000-40007-000 |
MEV2000-40011-000 |
|
MEV3000-40004-000 |
MEV3000-40005-000 |
MEV3000-40007-000 |
MEV3000-40011-000 |
Liability:
WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is
compliance to their machinery.
