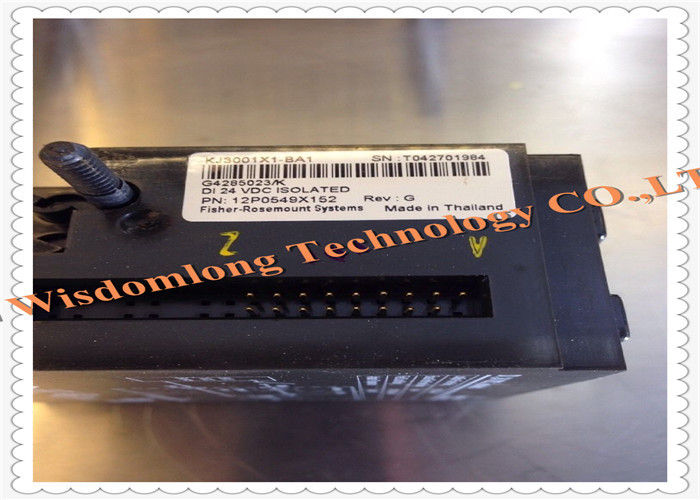

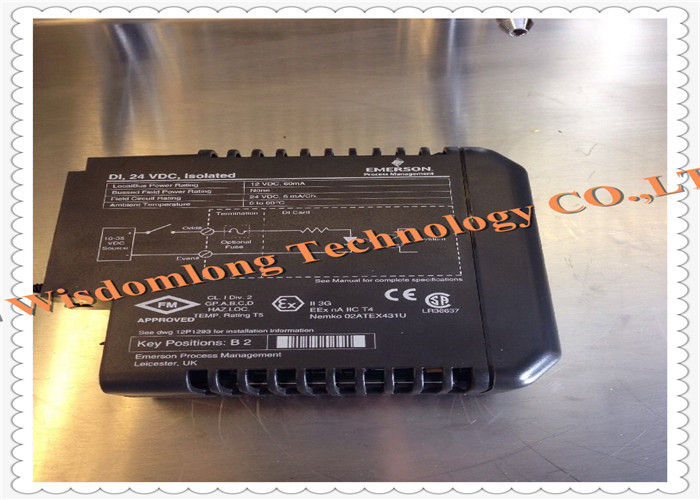

Dual Redundant Power Supply Module KJ3001X1-BA1 VE4001S2T1 12P0549X112

: Large Image : Dual Redundant Power Supply Module KJ3001X1-BA1 VE4001S2T1 12P0549X112

Product Details:

Place of Origin:	U.S.A / Thailand / UK
Brand Name:	Emerson
Certification:	CE
Model Number:	KJ3001X1-BA1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	2-3 work days
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	KJ3001X1-BA1	LocalBus Power Rating:	12 VDC At 100 MA
Field Circuit Rating:	24 VDC At 5 MA/channel	Brand:	Emerson DeltaV
Ambient Temperature:	0 To 60 O C	Shock:	10g ½ Sinewave For 11 Msec
Highlight:	analog interface module , diode redundancy module

Dual Redundant Power Supply Module KJ3001X1-BA1 VE4001S2T1 12P0549X112

Both NEW and USED are available.

Details:

Redundant Power Supply Module
KJ3001X1-BA1 VE4001S2T1 12P0549X112 DI 32-Channel 24 VDC Isolated Card

a.Hazardous Atmosphere

Nemko No. 02ATEX431U

EEx nA IIC T4

b.Power Specifications

LocalBus power rating:12 VDC at 100 mA

Field circuit rating:24 VDC at 5 mA/channel

c.Environmental Specifications

Ambient Temperature:0 to 60oC

Shock:10g ½ Sinewave for 11 msec

Vibration:1mm Peak to Peak from 5 to 16Hz;

0.5g from 16 to 150Hz

Airborne Contaminants:ISA-S71.04 –1985 Airborne

Contaminants Class G3

Relative Humidity:5 to 95% Non-Condensing IP 20 Rating

Terminal block key position:B2

Note:

Refer to the product label for serial number and location and date of manufacture. Refer also to the wiring diagram on the left side of the card.

Warning:

This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV™ Scalable Process System Zone 2 Installation Instructions".

Other installation instructions are available in the "Installing Your DeltaV™ Safety Instrumented System Hardware" manual.

d.Removal and Insertion

Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.

This unit may be removed or inserted while system power is energized under the following conditions:

(Note:Only one unit at a time may be removed or inserted with system power energized.)

•When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on either 24VDC or 12VDC input power, The primary circuit wiring inductance less than 23 uH, or a certified supply with an open circuit voltage, Ui of 12.6VDC and an Lo of less than 23 uH (including wire inductance).

•Non sparking field circuits MUST be deenergized before removing and inserting this product.

A terminal block fuse may NOT be removed with field power energized for non-sparking circuits.

A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.

e.Maintenance and Adjustment

This unit contains no user serviceable parts and should not be disassembled for any reason.

Calibration is not required.

Other Models:

Model	Description
KJ3246X1-BA1	S-Series H1 with Integrated Power
KJ3246X1-CA1 12P5540X022	H1 W/IP Simplex Terminal Block
KJ4001X1-BA1 12P0679X022	2 Slot Carrier
KJ4001X1-BA2 VE3051CO 12P1562X012	Power Controller 2 Wide Carrier
KJ4001X1-BA3 12P3378X012	2-WIDE CARRIER W/RED
KJ4001X1-BB1 12P0619X032	8 Wide I/O Carrier
KJ4001X1-BE1 VE4050S2K1C1 VE4050E1CO 12P0818X032	8 Wide I/O Carrier with Shield Bar
KJ4001X1-CA1 12P0623X022	I/O Terminal Block
KJ4001X1-CB1 12P0625X052	Fused I/O Terminal Block
KJ4001X1-CC1 12P0733X032	4 Wire TX Terminal Block
KJ4001X1-CD1	MASS TERMINAL BLOCK 10 PIN
KJ4001X1-CE1 12P0732X062	MASS TERMINAL BLOCK 16 PIN
KJ4001X1-CG1 12P1812X042	Thermocouple Terminal Block
KJ4001X1-CJ1 12P1902X012	32 Channel Terminal Block
KJ4001X1-DG1 12P1298X012	FUSED TERM PWB
KJ4001X1-EA1 12P0733X022	4 WIRE Terminal Block
KJ4001X1-GA1 12P0830X022	Local Bus Right Extender Cable
KJ4001X1-GB1 12P0831X022	Local Bus Left Extender
KJ4001X1-GG1 12P1812X022	Thermocouple Terminal Block
KJ4001X1-HA1 12P0949X022	Local Bus Extender Cable
KJ4001X1-HB1 12P0830X072	Local Bus Right Extender
KJ4001X1-HC1 12P0831X072	Local Bus Left Extender
KJ4001X1-NA1 12P3373X012	DUAL RIGHT EXTENDER
KJ4001X1-NB1 12P3368X012	DUAL LEFT EXTENDER
KJ4002X1-BA1 VE4055S1C0 12P1727X042	Left 8 Wide Vertical Carrier
