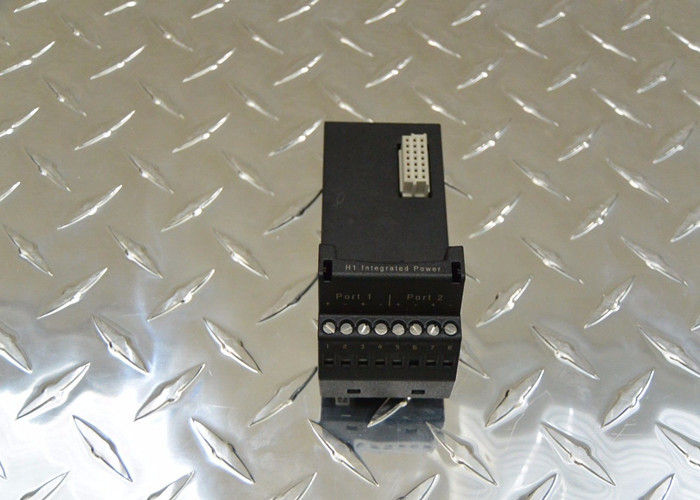

DeltaV Power Supply Redundant Module KJ3246X1-CA1 12P5540X022 H1 Terminal Block

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

DeltaV Power Supply Redundant Module KJ3246X1-CA1 12P5540X022 H1 Terminal Block

Large Image :  DeltaV Power Supply Redundant Module KJ3246X1-CA1 12P5540X022 H1 Terminal Block

Product Details:

Place of Origin: U.S.A / Thailand / UK
Brand Name: Emerson
Certification: CE
Model Number: KJ3246X1-CA1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 2-3 work days
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Model: KJ3246X1-CA1 Category: Terminal Block
PN: 12P5540X022 Series: H1
System: Fisher-Rosemount System Brand: Emerson DeltaV
High Light:

plc power supply module

,

diode redundancy module

DeltaV Power Supply Redundant Module KJ3246X1-CA1 12P5540X022 H1 Terminal Block





Description


Part Number:

12P5540X022



Model Type:
KJ3246X1-CA1


Manufacturer(s)
Emerson, Fisher-Rosemount



Model(s)
DELTAV KJ3246X1-CA1 12P5540X022 H1 W/IP Simplex Terminal Block



Power Specifications

LocalBus power rating
12 VDC at 300 mA
Field circuit rating
28 to 30VDC at 400 mA/port





Environmental Specifications



Ambient Temperature -40 to 70℃
Shock 10g ½ Sinewave for 11 msec
Vibration
1mm Peak to Peak from 5 to 16Hz;
0.5g from 16 to 150Hz
Airborne Contaminants
ISA-S71.04–1985 Airborne
Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20 Rating
Terminal block key position D6


I/O Terminal Blocks

A variety of I/O terminal blocks are available to meet specific functionality and environmental requirements of the installation. The I/O interface is a combination of the I/O card and the I/O terminal block. Each I/O interface is uniquely keyed so that once installed in a carrier slot with a terminal block, that terminal block will only accept a replacement card.

The keying mechanism consists of two keying posts that rotate and lock into the terminal block base. Each post has 6 positions: A-F and 1-6. Each card is assigned a unique key, which is marked on the side of the I/O card:




The keys prevent installation of an incorrect card, and the graphical information on the card makes it easy to determine if a keyed slot will accept a particular card.

There are 8 different I/O terminal blocks available to meet the wiring needs of field signals.

  • 8-Channel terminal block
  • Fused 8-Channel terminal block
  • AI 8-Channel terminal block
  • AI 16-Channel terminal block
  • 4-wire AI 16-Channel terminal block
  • Discrete 32-Channel terminal block
  • Isolated Input terminal block
  • RTD/Resistance terminal block
  • Thermocouple terminal block

The following redundant I/O terminal blocks are available on some I/O interfaces, allowing a pair of cards to be installed as a redundant pair.
„
  • Redundant AI 8-Channel terminal block
  • Redundant AO 8-Channel terminal block
  • Redundant Discrete 8-Channel terminal block

The table on the following page lists the compatiblen terminal blocks for each card, along with the cards unique key positions. The first terminal block listed is the recommended terminal block.

In addition to standard signal wiring, some cards may also be ordered with Mass Terminal blocks that allow these cards to be connected to the M-series Mass Connection Solutions or third party wiring solutions from Phoenix or if IS Barriers are required from Pepperl and Fuchs, mounted in an adjacent cabinet to
meet special signal conditioning or for optimizing field wiring solutions. Please refer to the Alliance Program website for details on approved third party products.

  • 10-pin Mass termination block
  • 16-pin Mass termination block
  • 24-pin Mass termination block
  • 40-pin Mass termination block

Ordering Information

Analog Input Cards and Termination Blocks

Description Model Number
8 Channels 4-20 mA, HART Standard I/O Termination Block VE4003S2B1
Redundant Standard I/O Termination Block
VE4033S2B1
Fused I/O Termination Block VE4003S2B2
4-wire I/O Termination Block VE4003S2B3
16-Pin Mass Termination Block VE4003S2B4
24-Pin Mass Termination Block VE4003S2B5
16 Channels 4-20 mA, HART Standard I/O Termination Block VE4003S2B6
4-wire I/O Termination Block 16 Channels 4-20 ma, HART, Plus Card VE4003S2B7
16-Channel 2-Wire AI Terminal Block for Series 2 Plus VE4003S2B9
16-Channel 4-Wire AI Terminal Block for Series 2 Plus VE4003S2B10
Redundant 16-Channel 2- & 4-Wire AI Terminal Block for Series 2 Plus VE4033S2B10
8 Channels Thermocouple,mV Standard I/O Termination Block VE4003S4B1
Cold Junction Compensated (CJC) Termination Block VE4003S5B1

Analog Input Card: 8 Channels RTD

Resistant Temperature Device (RTD) Termination Block

VE4003S6B1
Isolated Input Card
Isolated Input Terminal Block
VE4003S7B1
Standard I/O Termination Block VE4005S2B1
Redundant Standard I/O Termination Block VE4035S2B1
Fused I/O Termination Block VE4005S2B2
16-Pin Mass Termination Block VE4005S2B3
16-Channel AO Terminal Block for Series 2 Plus VE4005S2B4
Redundant 16-Channel AO Terminal Block for Series 2 Plus VE4035S2B4

Standard I/O Termination Block

VE4001S2T1B1
Fused I/O Termination Block VE4001S2T1B2
Standard I/O Termination Block VE4001S2T2B1
Redundant Standard I/O Termination Block VE4031S2T2B1
Fused I/O Termination Block
VE4001S2T2B2
16-Pin Mass Termination Block VE4001S2T1B3
16-Pin Mass Termination Block VE4001S2T2B3
Standard Termination Block VE4001S2T2B4
40-pin Mass Termination Block
VE4001S2T2B5
Redundant32-Channel DI Terminal Block for Series 2 Plus VE4031S2T2B6
40-pin DI Mass Termination Block for Series 2 Plus  (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
VE4001S2T2B7
40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards*
VE4051S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
VE4031S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards *
VE4081S2T2B7
Standard I/O Termination Block VE4001S3T1B1
Fused I/O Termination Block VE4001S3T1B2
Standard I/O Termination Block VE4001S3T2B1
Fused I/O Termination Block VE4001S3T2B2
Discrete 32 Channel Terminal Block VE4015
Discrete 32-Channel Terminal Block
VE4001S5T2B4
40-pin Mass Terminal Block VE4001S5T2B5
Standard I/O Termination Block VE4002S1T1B1
Fused I/O Termination Block VE4002S1T1B2
16-Pin Mass Termination Block VE4002S1T1B3
Standard I/O Termination Block
VE4002S1T2B1
Redundant Standard I/O Termination Block VE4032S1T2B1
Fused I/O Termination Block VE4002S1T2B2
16-Pin Mass Termination Block VE4002S1T2B3
10-Pin Mass Termination Block VE4002S1T2B4
Standard I/O Termination Block VE4002S1T2B5
40-Pin Mass Termination Block VE4002S1T2B6
40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
VE4002S1T2B8
40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *
VE4052S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
VE4032S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *
VE4082S1T2B8
Standard I/O Termination Block VE4002S2T1B1
Fused I/O Termination Block VE4002S2T1B2
Standard I/O Termination Block
VE4002S2T2B1
Fused I/O Termination Block VE4002S2T2B2
250V 2A Fuse for Fused Terminal Block; Box of 20
KJ4010X1-BC1


Fisher Rosemount DeltaV Redundant Power Supply Module



EMERSON DeltaV KJ3211X1-BA1 Series 2 SOE Card

EMERSON DeltaV KJ3212X1-BA1 Series 2 Multifunction I/O Card

EMERSON DeltaV KJ3221X1-BA1 ANALOG OUTPUT, 4-20mA, HART, SERIES 2

EMERSON DeltaV KJ3221X1-EA1 Redundant Analog Output Terminal Block

EMERSON DeltaV KJ3222X1-BA1 ANALOG INPUT, 8 Ch, 4-20mA, HART, SERIES 2

EMERSON DeltaV KJ3222X1-EA1 Redundant Analog Input Terminal Block

EMERSON DeltaV KJ3223X1-BA1 2-Wire AI, 16-Channel, 4-20 mA Series 2 Card

EMERSON DeltaV KJ3231X1-BA1 Isolated Input Series 2 Card

EMERSON DeltaV KJ3241X1-BA1 Serial Interface Card New Model

EMERSON DeltaV KJ3241X1-EA1 Redundant Serial Interface Terminal Block

EMERSON DeltaV KJ3242X1-BA1 Fieldbus H1, Series 2

EMERSON DeltaV KJ3242X1-BA1 Fieldbus H1 Series 2 Card

EMERSON DeltaV KJ3242X1-EA1 Fieldbus H1 Terminal Block (Simplex)

EMERSON DeltaV KJ3242X1-FA1 Fieldbus H1 Terminal Block (Redundant)

EMERSON DeltaV KJ3243X1-BA1 Series 2 ProfibusDP Card

EMERSON DeltaV KJ1501X1-BA2 System Power Supply(AC/DC)

EMERSON DeltaV KJ1501X1-BB1 System Passthrough Power Supply 12/12VDC

EMERSON DeltaV KJ1501X1-BC1 System Dual DC Power Supply (DC/DC)

EMERSON DeltaV KJ1501X1-BC2 System Dual DC Power Supply 24/12VDC(DC/DC)

EMERSON DeltaV KJ1501X1-BC3 System Power Supply(DC/DC)

EMERSON DeltaV KJ1501X1-BK1 Controller

EMERSON DeltaV KJ1502X1-BA2 BULK AC TO 24 VDC POWER SUPPLY

EMERSON DeltaV KJ1611X1-EF1 Controller MODULE

EMERSON DeltaV KJ1700X1-BA1 Media Converter

EMERSON DeltaV KJ1710X1-BA1 Single Port Fiber Switch

EMERSON DeltaV KJ1740X1-BA1 Four Port Fiber Switch

EMERSON DeltaV KJ2001X1-BA1 M2 Controller

EMERSON DeltaV KJ2002X1-BA1 M3 Controller

EMERSON DeltaV KJ2002X1-CA1 M5+ Controller

EMERSON DeltaV KJ2003X1-BA2 MD Controller

EMERSON DeltaV KJ2003X1-BB1 MD Plus Controller

EMERSON DeltaV KJ2004X1-BA1 Remote Interface Unit

EMERSON DeltaV KJ2005X1-BA1 MX Controller

EMERSON DeltaV KJ2101X1-BA1 PROVOX M3+ CONT CAR

EMERSON DeltaV KJ2101X1-CA1 PROVOX M3 CONT CAR

EMERSON DeltaV KJ2201X1-BA1 Logic Solver - SLS 1508

EMERSON DeltaV KJ2201X1-HA1 Simplex SLS Terminal Block

EMERSON DeltaV KJ2201X1-JA1 Redundant SLS Terminal Block

Emerson Control Techniques MGM-340-CONS-0000 AC Servo Motor
Emerson Control Techniques NTE-207-LONS-0010 Servo Motor
EMERSON MGM-316-CBNS-0000 SERVO MOTOR
EMERSON SERVO MOTOR MGM-316-CONS-0000
EMERSON MOTION CONTROL SERVO MOTOR MGM-340-CBNS-0000
Emerson MGM-316-CBNS-0000 Servo Motor
EMERSON MOTION CONTROL SERVO MOTOR MGM-340-CBNS-0000
Control Techniques MGM-455-CONS-0000 AC Servo Motor
