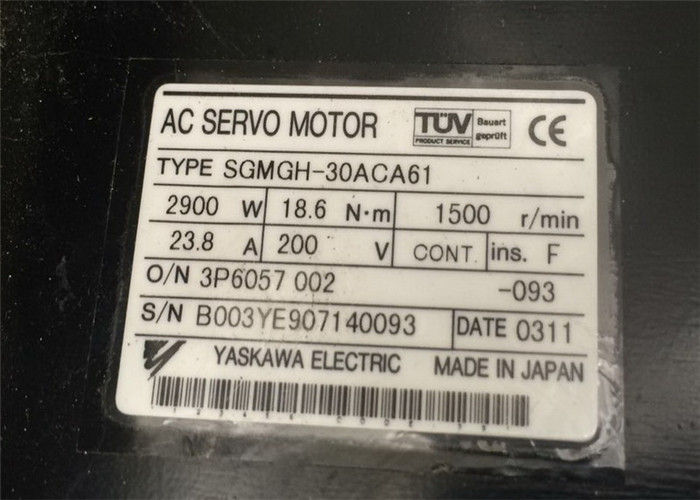

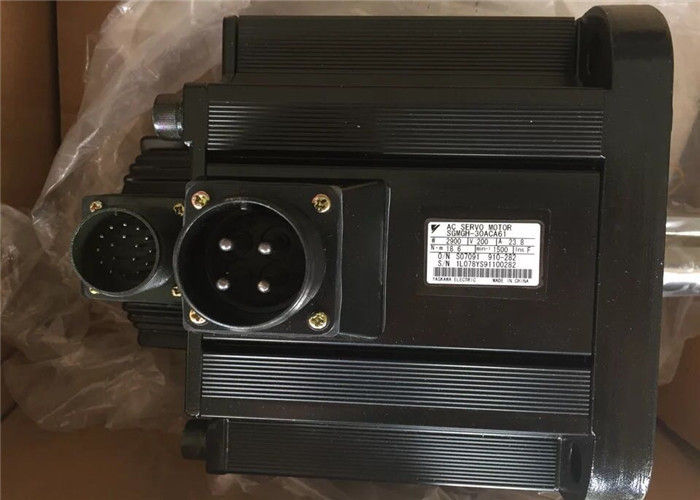

Industrial Ac Servo Motor , Yaskawa Electric Motor SGMGH-30ACA61 2900w 200v

Industrial Servo Motor Yaskawa Electric AC Servo Motor SGMGH-30ACA61 2900w 200v 1500RPM





Quick Details

Servomotor Type: SGMGH Sigma II

Rated Output: 2.9kW; 1500RPM

Power Supply: 200V

Encoder Specifications: 17-bit Incremental Encoder

Design revision order: Standard for 1500 RPM

Shaft Specifications: Straight with key and tap

Accessories: Standard
Current: 23.8A
Supply Power : 2900W
CONT Ins : F
RMP : 1500r/min
Certification:CCC, CE, ROHS, UL, VDE
Place of Origin:Japan
Efficiency:IE 1





Note: 24VDC brakes for SGMGH Sigma II servomotors are standard. Contact a local source for 24VDC power supplies.
For technical information, request request Yaskawa manual number YEA-SIA-S800-32.2.
* For more detailed SGDH amplifier specifications and dimensions, refer to pages 99 to 112.
**2000rpm maximum for 11 and 15kW systems only.


“(A)” at the end of the cable number is the revision level. The revision level may be changed prior to this catalog’s reprinting.
** When ordering these cables for motors with brakes, order the standard power cable and the additional cable for the brake.
*** Standard cable lengths are Stock items; non-standard cable lengths are Limited Stock items.
**** 50 Pin Female D-Sub output connector mates to customer supplied third party terminal block. (e.g., Wago #289-449, Weidmuller
#919658, Phoenix #2283647, Amphenol/Sine #20-51039, and many others).


Minimum Recommended System Requirements Pentuim 200 MHz, 64MB RAM, 200MB hard drive, CDROM Drive, RS-232 or RS-422 port, Screen rsolution 800x600 w/ 256 colors, and Windows 95,98,NT4.0,2000,ME. (Windows XP planned)


These are general purpose regenerative units.
* Order the Motion document: PI#99004 for setup instructions for this unit. Caution: Proper set-up is necessary to avoid equipment damage
