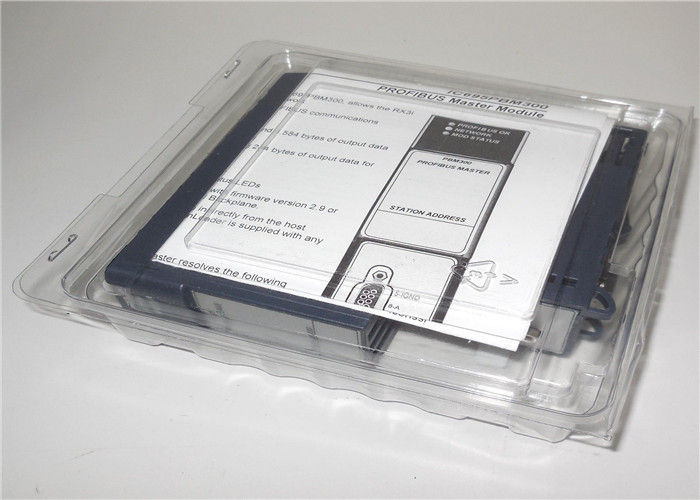

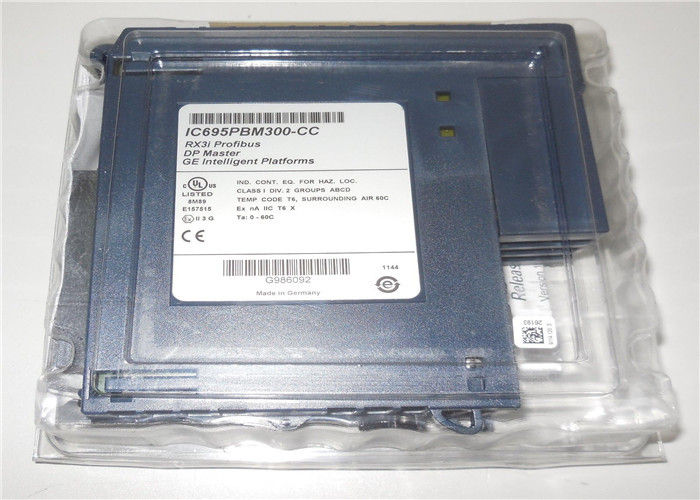

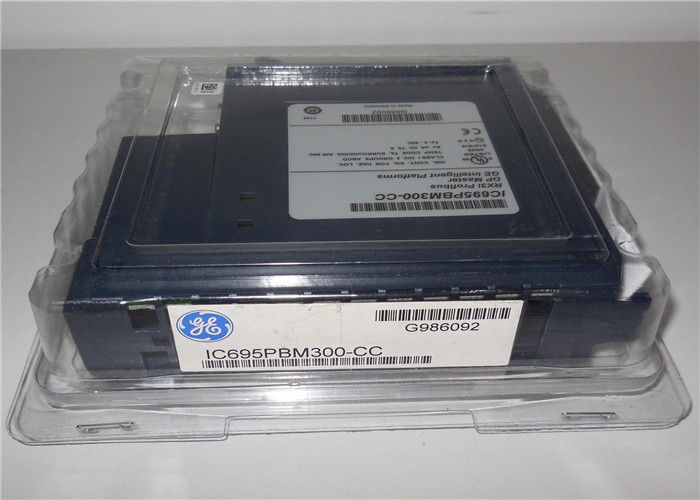

Electronic Interface Module IC695PBM300 RX3i Profibus DP Master Module

Large Image :  Electronic Interface Module IC695PBM300 RX3i Profibus DP Master Module

Product Details:

Brand Name: GE Fanuc
Model Number: IC695PBM300

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: T/T, Western Union
Detailed Product Description
Place Of Origin: USA Brand: GE Fanuc
Model 1: IC695PBM300 Model 2: IC695PBM300-CC
Model 3: IC695PBM300-HN Model 4: IC695PBM300-BC
Model 5: IC695PBM300-CA Model 6: IC695PBM300-BB
High Light:

plc power supply module

,

diode redundancy module

Redundant Power Supply ModuleGE Fanuc IC695PBM300 RX3i Profibus DP Master module




Version 1.04 of the IC695PBM300 RX3i PROFIBUS Master resolves the following issues:

  •  When multiple Lumberg devices (8in/4out) are connected to the bus and power is removed from these devices, but the PBM300 remains powered, the inputs assigned to the Lumberg devices will toggle between 1 and 0.
  •  Configuring slaves with a large amount of parameter data returns the correct error code when parameter data exceeds the available memory space. The IC695PBM300 is field upgradable to firmware version 1.04 using the firmware upgrade utility.

Upgrade Kit: 44A753033-G02

The PACSystems* RX3i PROFIBUS Master Module, IC695PBM300, allows the host RX3i CPU
to send and receive data via a PROFIBUS-DP network.
The IC695PBM300 module provides the following PROFIBUS communications features:



Supports all standard data rates

  •  Supports a maximum of 3,584 bytes of input data and 3,584 bytes of output data
  •  Supports a maximum of 125 PROFIBUS-DP slaves
  • Supports a maximum of 244 bytes of input data and 244 bytes of output data for each
  • slave
  •  Supports Sync and Freeze modes
  •  Supports DP-V1 Read, Write and Alarm messages
  •  Has PROFIBUS-compliant module and network status LEDs


The PROFIBUS Master module must be located in an RX3i Universal Backplane and requires a host RX3i CPU with firmware version 2.9 or later.
The PROFIBUS module receives its firmware upgrades indirectly via the host controller CPU using the WinLoader software utility. WinLoader is supplied with any updates to the
PROFIBUS module software.







Similar Products
IC660EBD020 Electronic Assembly for IC660BBD020
IC660EBD021 Electronic Assembly for IC660BBD021
IC660EBD024 Electronic Assembly for IC660BBD024
IC660EBD025 Electronic Assembly for IC660BBD025
IC660EBD101 Electronic Assembly for IC660BBD101
IC660EBD110 Electronic Assembly for IC660BBD110
IC660EBR100 Electronic Assembly for IC660BBR100
IC660EBR101 Electronic Assembly for IC660BBR101
IC660EBS102 Electronic Assembly for IC660BBS102
IC660EBS103 Electronic Assembly for IC660BBS103
IC660EBA021 Electronic Assembly for IC660BBA021
IC660EBA023 Electronic Assembly for IC660BBA023
IC660EBA101 Electronic Assembly for IC660BBA101
IC660EBA103 Electronic Assembly for IC660BBA103
IC660EBD120 Electronic Assembly for IC660BBD120
IC660HHM501 Hand-Held Monitor includes Cable and Battery Charger
IC660ELB906 PCIM (XT/AT Interface Board) & S/W Driver (IC641GBE647)
IC660ELB921 Single-slot PCIM (XT/AT Interface Board) 1-channel




Release Information
Version 1.04 of the IC695PBM300 RX3i PROFIBUS Master resolves the following issues:
  • When multiple Lumberg devices (8in/4out) are connected to the bus and power iremoved from these devices, but the PBM300 remains powered, the inputs assigned to the Lumberg devices will toggle between 1 and 0.
  •  Configuring slaves with a large amount of parameter data returns the correct error code when parameter data exceeds the available memory space. The IC695PBM300 is field upgradable to firmware version 1.04 using the firmware upgrad utility.
Upgrade Kit: 44A753033-G02



Module Status Information
For details on using the Communication Request function to communicate with the PROFIBUS master module, refer tothe PACSystems RX3i PROFIBUS Modules User’s Manual, GFK-2301.
Slave Status Bit Array
The Slave Status bit array contains a bit for each slave. If communication with a slave has no errors, the bitcorresponding to the slave (determined by its network address) is set. If the communication has errors or is not occurring for any reason, the bit is cleared. The Master also maintains its own status in the bit corresponding to its network address.
Slave Diagnostics ID Array
If diagnostics are pending, the first word of this two-word array contains the station address of the first slave that has diagnostics. The diagnostics can be read using the Get Device Diagnostics COMMREQ (command 4). This clears the word and the master then places the next pending diagnostic address into the Slave Diagnostics word. If this word is zero there are no pending diagnostics.The second word of this array is reserved and set to 0.
DPV1 Alarm Status Array
The 32-bit DPV1 Alarm Status array is used at the beginning of a scan to receive the station address of a slave that has sent a DPV1 Alarm message. If another slave has sent a DPV1 alarm message, it is ignored until the first one has been
serviced, and will then appear in a subsequent scan. For details on the status format, refer to “DPV1 Alarm AcknowledgeCOMMREQ” in GFK-2301.
Slave Configured Bits
This 128-bit array indicates which slaves on the PROFIBUS network are configured. Each slave has a corresponding bit in this array. A slave's configuration status address equals Start Address + Station Address of the slave. For example, if the configuration status bits are mapped to %I00001, the status for the slave at Station Address 5 would be found at %I00001 + 5=%I00006.
Slave Diagnostic Bits
This 128-bit array indicates which slaves on the PROFIBUS network have diagnostic data available. The diagnostics can be read using the Get Device Diagnostics COMMREQ (command 4). Each slave has a corresponding bit in this array. A slave's diagnostic status address equals Start Address + Station
Address of the slave. For example, if the configuration status bits are mapped to %I00001, the status for the slave at Station Address 5 would be found at %I00001 + 5=%I00006.



Connecting the Module to the PROFIBUS Network
The module contains a standard female DB9 connector, labeled “PROFIBUS,” that can be connected to a PROFIBUS busterminal that complies with EN 50170.
The PROFIBUS module has no built-in termination. If termination is required, you must use a bus terminal that has builtin selectable termination
