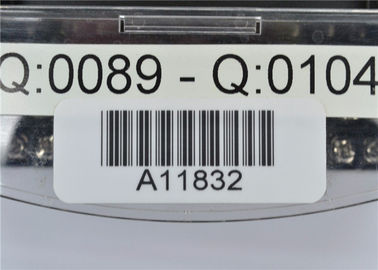

Redundant Power Supply Module GE Fanuc IC200MDL940 OUTPUT RELAY ISOLATED 2A FORM A 16PT

: Large Image : Redundant Power Supply Module GE Fanuc IC200MDL940 OUTPUT RELAY ISOLATED 2A FORM A 16PT

Product Details:

Place of Origin:	USA
Brand Name:	GE Fanuc
Model Number:	IC200MDL940

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Brand:	GE Fanuc	Model 1:	IC200MDL940A
Model 2:	IC200MDL940E	Model 3:	IC200MDL940B
Model 4:	IC200MDL940D	Place Of Origin:	USA
Model 5:	IC200MDL940J	Model 6:	IC200MDL940
Highlight:	analog interface module , plc power supply module

Redundant Power Supply Module GE Fanuc IC200MDL940 OUTPUT RELAY ISOLATED 2A FORM A 16PT

Module Characteristics

Points IC200MDL930: 8 individually isolated Form A relay outputs
IC200MDL940, BXIOOR162: 16 individually isolated Form A relay outputs
Module ID IC200MDL930: FFFF8040
IC200MDL940, BXIOOR162: 80408040

Isolation:
User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute
IC200MDL930: Group to Group: not applicable
IC200MDL940, BXIOOR162: Group to group: 250VAC continuous; 1500VAC for 1 minute
Point to point:: 250VAC continuous; 1500VAC for 1minute
LED indicators One green LED per point shows individual point on/offstate
OK LED indicates backplane power is present Backplane currentconsumption
IC200MDL930: see graph
IC200MDL940, BXIOOR162, 5V output:: 490mA maximum
External power supply 0 to 125VDC, 5/24/125VDC nominal
0 to 265VAC (47 to 63Hz), 120/240VAC nominal

Thermal derating None

Output Characteristics

Output voltage 0 to 125VDC, 5/24/125VDC nominal
0 to 265VAC (47 to 63Hz), 120/240VAC nominal
Output voltage drop 0.3V maximum
Load current 10mA per point minimum
2.0A for 5 to 265VAC maximum (resistive)
2.0A for 5 to 30 VDC maximum (resistive)
0.2A for 31 to 125 VDC maximum (resistive)
Output leakagecurrent Not applicable (open contact)
On response time 10ms maximum
Off response time 10ms maximum
Protection No internal fuses or snubbers
Switching frequency 20 cycles per minute (inductive load)
Relay type Fixed coil, moving armature
Contact type Silver alloy

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
Fanuc motor A0-	Yokogawa transmitter EJA-

Contact person: Anna

E-mail: wisdomlongkeji@163.com

Cellphone: +0086-13534205279

Relay output module IC200MDL930 provides 8 individually-isolated Form A relay outputs.

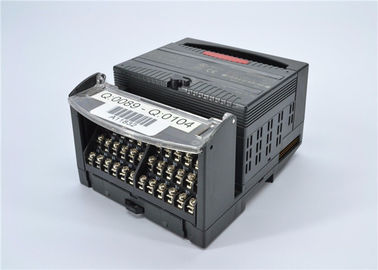

Relay Output Modules IC200MDL940 (shown below) and BXIOOR162 provide 16 individually-isolated Form A relay outputs.
The contact is closed when the host CPU is active and the corresponding output logic bit is “1”.

Power for module operation comes from the backplane. Loads must be powered by an external source.
Intelligent processing for this module is performed by the CPU or NIU.

LED Indicators

Individual green logic-side LEDs indicate the On/Off status of each output point. The output LEDs are logic-driven and independent of load conditions.
The green OK LED is ON when backplane power is present to the module.

Preinstallation Check

Carefully inspect all shipping containers for damage. If any equipment is damaged, notify the delivery service immediately. Save the damaged shipping container for inspection by the delivery service. After
unpacking the equipment, record all serial numbers. Save the shipping containers and packing material in case it is necessary to transport or ship any part of the system.

Installation in Hazardous Locations

• EQUIPMENT LABELED WITH REFERENCE TO CLASS I, GROUPS A, B, C & D, DIV. 2 HAZARDOUS LOCATIONS IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B,
C, D OR NON-HAZARDOUS LOCATIONS ONLY
• WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2;
• WARNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS LOCATIONS, TURN OFF POWER BEFORE REPLACING OR WIRING MODULES; AND
• WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.

For module IC200MDL930, if additional bussed terminals are needed, the B terminals can be made available by using a shorting bar. The shorting bar has a maximum current-carrying capacity of 2 Amps per point. See chapter 2 of the VersaMax I/O System Manual, GFK-1504, for more information
When wiring outputs to inductive loads, use of external suppression circuits is recommended. See chapter 2, “Installing Wiring for I/O
Devices-Wiring to Inductive Loads” in the VersaMax I/O System Manual, GFK-1504, for more information.

Row B connections are for 16-point modules only.

Side B connections are for 16-point modules only.

The module’s backplane 5 volt power requirement increases as the number of points that are simultaneously on increases. The chart below shows the relationship between the number of points on and the maximum current required.

Operating Note
If hot insertion of a module is done improperly, the operation of other modules on the same backplane may be disrupted. See Installing a
Module on a Carrier in the VersaMax Modules Manual, GFK-1504.
