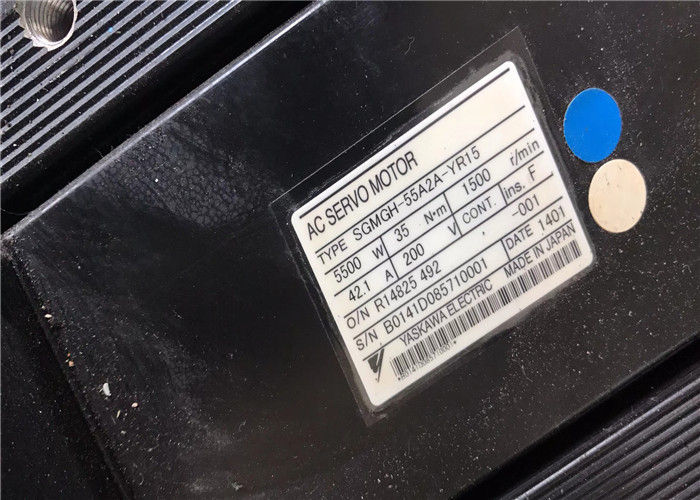

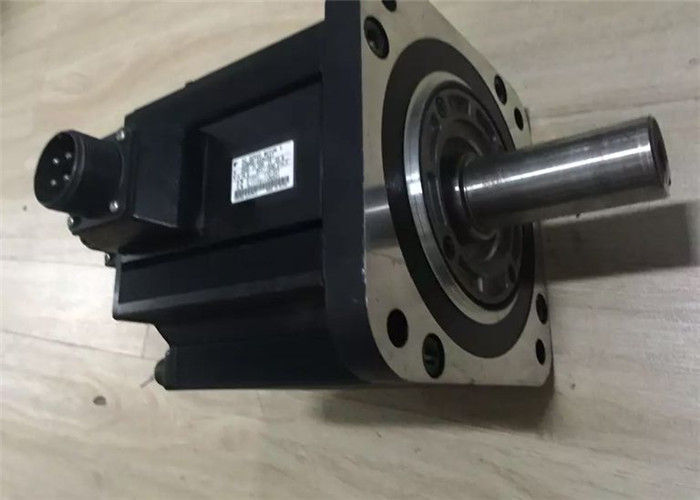

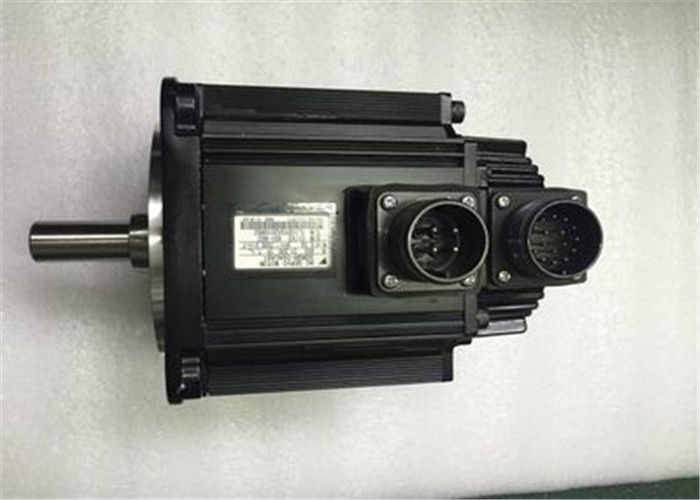

500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V

: Large Image : 500RPM 5500W Permanent Magnet Servo Motor SGMGH-55A2A-YR15 42.1AMP 200V

Product Details:

Place of Origin:	Japan
Brand Name:	Yaskawa
Model Number:	SGMGH-55A2A-YR15

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Yaskawa	Model:	SGMGH-55A2A-YR15
Place Of Origin:	Japan	Type:	AC SERVO MOTOR
Power:	4400W	Volatge:	200V
Current:	45A	Ins:	F
Highlight:	ewing machine servo motor , ac servo motor

Industrial Servo Motor YASKAWA SERVO MOTOR SGMGH-55A2A-YR15 500RPM 5500W 42.1AMP 200V

QUICK DETAILS

· YASKAWA ELECTRIC

· SGMGH-55A2A-YR15

· SERVO MOTOR

· AC SERVO MOTOR

· 4400W

· 28.4N.m

· 45A

· 1500RPM

· 200V

· Ins F

· AVAILABLE

· REBUILT SURPLUS

· NEW SURPLUS

· REPAIR YOURS

· 24-48 HOUR RUSH REPAIR

· 2 - 15 DAY REPAIR

· 2 YEAR RADWELL WARRA

SIMILAR PRODUCTS

SGMG-55A2ABC

SGMG-60A2BBB

SGMG-60A2BBC

SGMG-75A2AAB

SGMG-75A2AB

SGMG-75A2ABC

SGMGH-03A2B2B

SGMGH-03ACB61

SGMGH-03ACB6C

SGMGH-05A2A2B

SGMGH-05A2A61

SGMGH-05A2ASC61

SGMGH-05ACA61 +SGDM-05ADA

SGMGH-05ACA6C

SGMGH-05ACC21

SGMGH-09A2A21

SGMGH-09ACA21

SGMGH-09ACA2B

SGMGH-09ACA2C

SGMGH-09ACA61

SGMGH-09ACA6B

SGMGH-09ACA6C

SGMGH-09ACB61

SGMGH-09ACB6B

SGMGH-09PCA-AM14

SGMGH-12A2B2

SGMGH-12A2B21

SGMGH-13A2A-YR13

SGMGH-13A2A-YR23

SGMGH-13A2A-YR23A

SGMGH-13A2A-YR24

SGMGH-13ACA

SGMGH-13ACA21

SGMGH-13ACA61

1.5.4 Motor Cable for Servomotors SGMAH / SGMPH 200V Series Part no: DP9325252-##G SGMAH, SGMPH-01Axx - SGMPH-08Axx DP9325254-##G SGMPH-15Axx (##: cable length, 03 = 3m; 05 = 5m; 10 = 10m; 15 = 15m; 20 = 20m)

Terminal connection

No. Description Colour
1 Phase U Black (white 1)
2 Phase V Black (white 2)
3 Phase W Black (white 3)
4 free -
5 Free -
6 Frame ground Green/Yellow

1.5.5 Motor Cable for Servomotors with Brake SGMAH / SGMPH 200 Series Part no: DP9325253-##G SGMAH, SGMPH-01AxxxC - SGMPH-08AxxxC DP9325255-##G SGMPH-15AxxxC (##: cable length, 03 = 3m; 05 = 5m; 10 = 10m; 15 = 15m; 20 = 20m)

Terminal connection
No. Description Colour
1 Phase U Black (white 1)
2 Phase V Black (white 2)
3 Phase W Black (white 3)
4 Brake Black (white 4)
5 Brake Black (white 5)
6 Frame ground Green/Yellow

1.6 Specification of Encoder Connector 1.6.1 Encoder Connector (Encoder side) Part – No: S RU C 17G MR WN 087

Specifications:
Poles: : 17
Temperature Range : -25°C up to 125°C
Cable Clamp : Æ5,5mm
Type of protection : IP67 connected
IP00 not connected

Electrical Performance:
Current Rating : 9A
Voltage Rating : 20 V
Test Voltage : 800V
Contact Resistance : < 5 mOhm
Mating Cycles : > 500

Materials:
Body : PA 6.6, glass-fiber reinforced
Insulator : PBT, glass-fiber reinforced
Contacts : Brass / Gold plated
Seals : FPM

Contacts:
Type : Pin Æ1 Pin Æ1
Part-No. : 021.311.1020 021.402.1020
Termination : Crimp Crimp
Crimp Range : 0.24 up 1.0mm² 0.05 up to 0.34mm²
Latch Retention : > 30N > 30N

Tools:
Crimping Tool Positioner Positioner
B 150 B 055/A B 055/A
B 161 B 200 ------------

Electrical datas (at 20°C) (0,25 mm²) (0,50 mm²)

Conductor resistance : £ 82,0 W/km : £ 41,0 W/km

Insulation resistance : > 200 MWxkm

Screen attenuation up to 30MHz : 45 dB (approxiamate value)

up to 1 GHZ : 30 dB (approxiamate value)

(Test methode acc. IEC 96-1 Amend. 2 (1993) A.5.6 „Line injection method“)

Test voltage (C/C) : 2,0 kVeff

(C/S) : 1,0 kVeff

Operating voltage : 300V

Operating current (single cable) at ambient temperature

0,35mm² 0,25mm²

20°C : £ 4,5 A ; : £ 2,2 A

30°C : £ 3,8 A ; : £ 1,9 A

40°C : £ 3,2 A ; : £ 1,6 A

50°C : £ 2,5 A ; : £ 1,2 A

60°C : £ 1,9 A ; : £ 0,9 A

70°C : £ 1,2 A ; : £ 0,6 A

Temperature range (Transport & storage) : -70°C bis + 90°C

(Installation & handling) : -40°C bis + 90°C

(Operating) : -20°C bis + 80°C

Bending radius (Operating) : ³ 3 x cable-Æ

(several times) : ³ 7,5 x cable-Æ

(several times optimum): ³ 10 x cable-Æ

Bending strength (r= 10 x cable-Æ at 20°C) : ³ 5.000.000 cycles

reduced working life at higher operating temperatures.

Oil resistance : acc. VDE 0282 part 10

Hydrolyse resistance : acc. VDE 0282 part 10

Flame resistance : acc. VDE 0472 part 804 condition B

Approbation : VDE-expert evidence (VDE-REG-Nr.6589)

The jacket surface has low adhesion, this prevents a stickness by contact.

All materials are halogenfree.

Applicable for use in flexible chain cable holder systems.

Not for use outdoor or in earth

When used as control cable the relevant installation and/or applicance standards have to be regarded.
