2.2kw AC Driver Variable Frequency Inverter Servo Control With Protective Coating

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

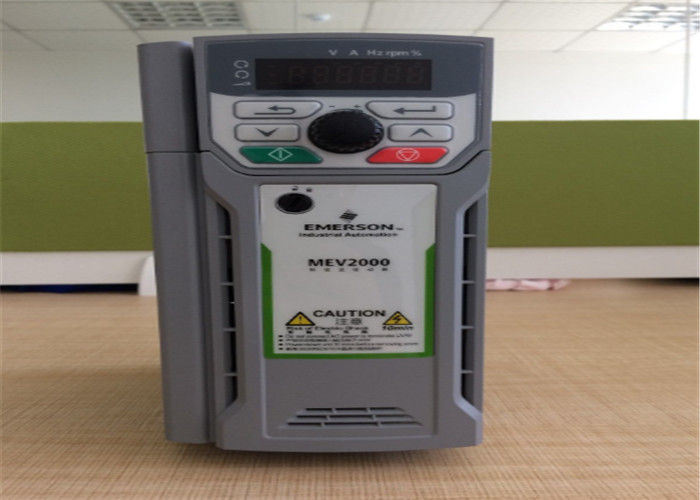

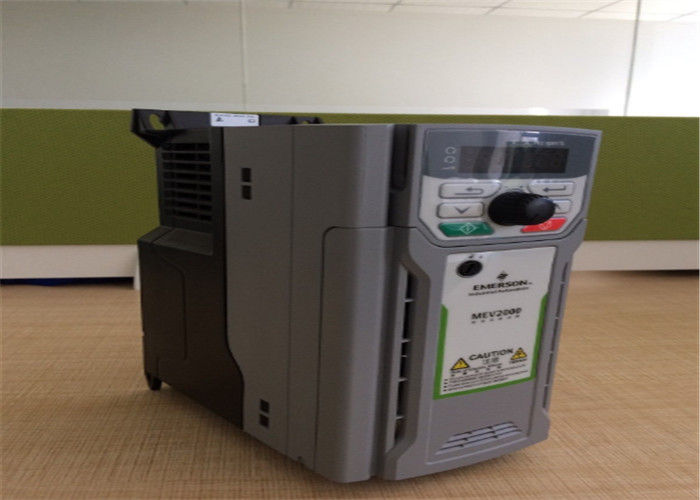

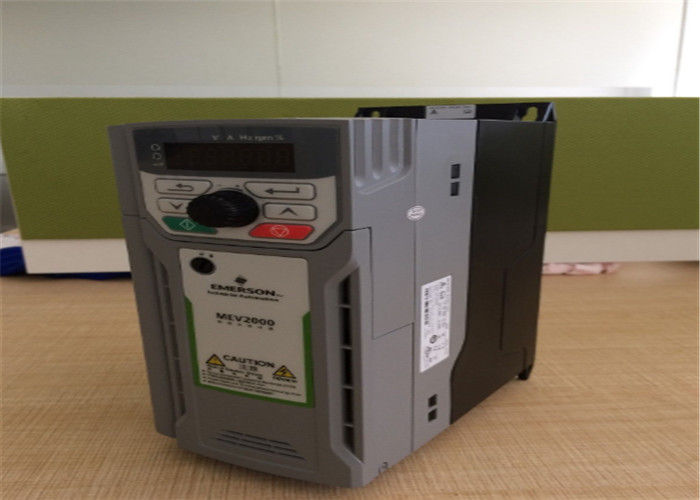

2.2kw AC Driver Variable Frequency Inverter Servo Control With Protective Coating

Large Image :  2.2kw AC Driver Variable Frequency Inverter Servo Control With Protective Coating

Product Details:

Place of Origin: China
Brand Name: Emerson
Certification: CE
Model Number: Mev2000-40022-000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 600 USD
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: Frequency Inverter Model: Unidrive M
Application: Servo Control Serier 1: MEV1000
Serier 2: MEV2000 Serier 3: MEV3000
High Light:

vfd frequency converter

,

variable frequency drive inverter



Emerson Frequency Converter Mev2000-40022-000 380v-480v 3hp 2.2kw AC Driver Variable Frequency Inverter






Easy to use, cost-effective


MEV1000 is an economical open-loop drive designed for manufacturing automation applications in China Actuator.



MEV1000 product advantage:


Quick and easy installation and configuration

Standard bright LED keyboard

• keyboard equipped with speed control knob, easy to control the speed of operation
• parameter setting in accordance with Chinese factory habits
• MEV-AI-Backup Adaptor can be selected to support SD card fast transmission and backup parameters
• configurable input / output, receive pulse signals

Durable design for harsh manufacturing environments in China

Adopt advanced cooling design, equipped with patented ventilation system, which can drive cooling more efficiently



Protect internal components

• with protective coating (three proofing paint coating)
• has passed a lot of environmental testing and certification
Overload rate up to 180%, allowing overload time up to 3 seconds
• large tolerance value of supply voltage

Reduce the size of the machine, save costs

Compact design, compact size



Customization

The driver can customize the default values of custom parameters through customization, so that the machine can leave the factory quickly Saving energy consumption

• low energy consumption and energy efficiency of up to 98%
• low power standby mode



Typical application:

Frequency control of conveyor, fan, pump and mixer



Main Parameter


Overload rating: 230V: 0.25 - 22kW 400V: 0.37 - 22kW

Power supply phase: 230 V - single phase or three phase

400 V - three-phase Standard function

Keyboard: fixed LED keyboard, equipped with speed adjustment

Option Adapter: MEV-AI-Backup Adaptor, support SD card



Product model


Model MEV1000 Input current (A) Fuse rating (A) Input/output conductor Maximum output current (A) Rated capacity (KW)
Input wire (mm2) Output wire (mm2) Heavy duty * Normal duty**
20004 5.3 6 1 1 2.4   0.37
20005 8.3 10 1 1 3.3   0.55
20007 10.4 16 1 1 4.2   0.75
20011 14.9/7.4 20 2.5 1 5.6   1.1
20015 18.1/9.1 20 2.5 1 7.5   1.5
20022 23.9/12.8 25 4 1.5 10   2.2
40004 2.1 6 1 1 1.3   0.37
40005 2.6 6 1 1 1.8   0.55
40007 3.1 6 1 1 2.3   0.75
40011 4.7 6 1 1 3.2   1.1
40015 5.8 10 1 1 4.1   1.5
40022 8.3 10 1 1 5.6   2.2
40030 10.2 16 1.5 1 7.3   3
40040 13.1 16 2.5 1.5 9.4   4
40055 14 20 2.5 2.5 13.5   5.5
40075 18.5 25 4 2.5 17   7.5
40110 26 40 6 6 27 30 11/15
40150 32 63 10 10 35 38 15/18.5






Note: MEV1000 is rated with Heavy duty current for the power ranging from 0.37KW to 7.5KW, and with Heavy duty and Normal duty current respectively for the power ranging from 11KW to 110KW. *Heavy duty: constant torque load. **Normal duty: fan and water pump load, etc..







Models



MEV1000-20004-000

MEV1000-20005-000

MEV1000-20007-000

MEV1000-20011-000

MEV2000-40004-000

MEV2000-40005-000

MEV2000-40007-000

MEV2000-40011-000

MEV3000-40004-000

MEV3000-40005-000

MEV3000-40007-000

MEV3000-40011-000







Liability:




WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
