| Brand: | OMRON | Model: | R88M-G05030H-BS2-Z |
|---|---|---|---|
| Origion: | Japan | Type: | Servo Motor |
| High Light: | ewing machine servo motor,ac servo motor |
||

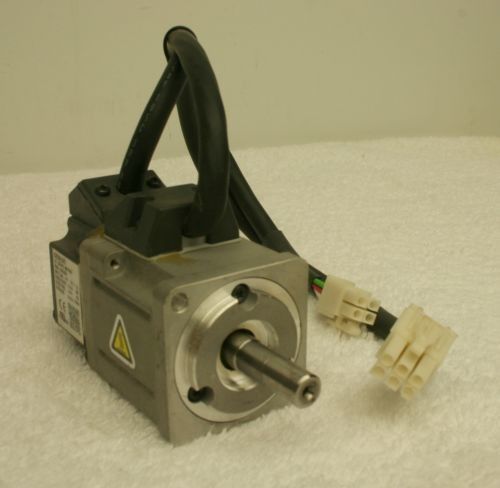

Industrial Servo Motor R88M-G05030H-BS2-Z OMRON AC Servo Motor
Quick sizing and selection of AC servo motors
• High variety of mechanical system
• Import CAM from Sysmac Studio
• Kinematics chain architecture includes motor, reducer, loads and motion profile.
• Adjustments can be done in one view and results autorefreshed.
Re-use work done during design phase
• Export sizing file result.
• Import sizing file result in Sysmac Studio.
• EtherCAT configuration, axes settings and drives parameters will be created automatically
| Specifications | Model | |||
|---|---|---|---|---|
| With oil seal | ||||
| Straight shaft | With key and tap | |||
| Without brake | 200 VAC | 1 kW | R88M-1M1K020T-O | R88M-1M1K020T-OS2 |
| 1.5 kW | R88M-1M1K520T-O | R88M-1M1K520T-OS2 | ||
| 2 kW | R88M-1M2K020T-O | R88M-1M2K020T-OS2 | ||
| 3 kW | R88M-1M3K020T-O | R88M-1M3K020T-OS2 | ||
| 400 VAC | 400 W | R88M-1M40020C-O | R88M-1M40020C-OS2 | |
| 600 W | R88M-1M60020C-O | R88M-1M60020C-OS2 | ||
| 1 kW | R88M-1M1K020C-O | R88M-1M1K020C-OS2 | ||
| 1.5 kW | R88M-1M1K520C-O | R88M-1M1K520C-OS2 | ||
| 2 kW | R88M-1M2K020C-O | R88M-1M2K020C-OS2 | ||
| 3 kW | R88M-1M3K020C-O | R88M-1M3K020C-OS2 | ||
| With brake | 200 VAC | 1 kW | R88M-1M1K020T-BO | R88M-1M1K020T-BOS2 |
| 1.5 kW | R88M-1M1K520T-BO | R88M-1M1K520T-BOS2 | ||
| 2 kW | R88M-1M2K020T-BO | R88M-1M2K020T-BOS2 | ||
| 3 kW | R88M-1M3K020T-BO | R88M-1M3K020T-BOS2 | ||
| 400 VAC | 400 W | R88M-1M40020C-BO | R88M-1M40020C-BOS2 | |
| 600 W | R88M-1M60020C-BO | R88M-1M60020C-BOS2 | ||
| 1 kW | R88M-1M1K020C-BO | R88M-1M1K020C-BOS2 | ||
| 1.5 kW | R88M-1M1K520C-BO | R88M-1M1K520C-BOS2 | ||
| 2 kW | R88M-1M2K020C-BO | R88M-1M2K020C-BOS2 | ||
| 3 kW | R88M-1M3K020C-BO | R88M-1M3K020C-BOS2 | ||
| Specifications | Model | |||
|---|---|---|---|---|
| Without oil seal | ||||
| Straight shaft | With key and tap | |||
| Without brake | 200 VAC | 900 W | R88M-1M90010T | R88M-1M90010T-S2 |
| 2 kW | R88M-1M2K010T | R88M-1M2K010T-S2 | ||
| 3 kW | R88M-1M3K010T | R88M-1M3K010T-S2 | ||
| 400 VAC | 900 W | R88M-1M90010C | R88M-1M90010C-S2 | |
| 2 kW | R88M-1M2K010C | R88M-1M2K010C-S2 | ||
| 3 kW | R88M-1M3K010C | R88M-1M3K010C-S2 | ||
| With brake | 200 VAC | 900 W | R88M-1M90010T-B | R88M-1M90010T-BS2 |
| 2 kW | R88M-1M2K010T-B | R88M-1M2K010T-BS2 | ||
| 3 kW | R88M-1M3K010T-B | R88M-1M3K010T-BS2 | ||
| 400 VAC | 900 W | R88M-1M90010C-B | R88M-1M90010C-BS2 | |
| 2 kW | R88M-1M2K010C-B | R88M-1M2K010C-BS2 | ||
| 3 kW | R88M-1M3K010C-B | R88M-1M3K010C-BS2 | ||
