| Brand: | OMRON | Model: | R88M-G1K020T-Z |
|---|---|---|---|
| Origion: | Japan | Lead Time: | 5-8 Work Days |
| High Light: | ac servo motor,electric servo motor |
||

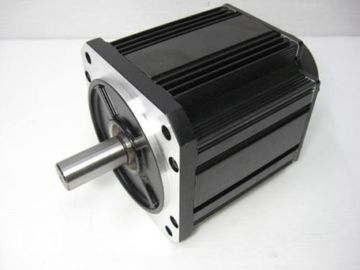

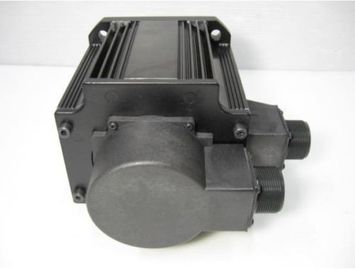

R88M-G1K020T-Z OMRON G-Series AC Servo Motor 1KW Without brake uch as models decelerators
Key features and benefits:
• Pocket-size servo with smallest
footprint 15x4 cm
• Auto-tuning for easy and quick start-up
• Built-in MECHATROLINK-II motion bus reduces
cabling and allows remote servo configuration
and diagnosis
• High starting torque: 300% for 3 secs.
• Positioning, speed or torque control
• Separate power and control power supply
• Fast and accurate positioning
• Servomotor range from 50 W to 1.5 kW
• Incremental and absolute encoder available
• Cylindrical and flat servo motors
up to 3,000 rpm
• Compatible with SmartStep 2 servomotors
• Vibration suppression
The following OMNUC G-Series AC Servomotors are available.
3,000-r/min Servomotors
3,000-r/min Flat Servomotors
2,000-r/min Servomotors
1,000-r/min Servomotors
There are various options available on the Servomotors, s with brakes, decelerators,
or different shaft types.
Select a Servomotor based on the mechanical system’s load conditions and the installation
environment.
| Item | 3,000-r/min Servomotors | 3,000-r/min Flat Servomotors |
1,000-r/min Servomotors2,000-r/min Servomotors | ||
| 50 to 750 W | 1 to 5 kW | 100 to 400 W | 900 W to 5 kW |
6 to 7.5 kW | |
| Ambient operating temperature and humidity |
0 to 40°C, 85% RH max. (with no condensation) | ||||
| Ambient storage temperature and humidity |
− 20 to 65°C, 85% RH max. (with no con- densation) |
− 20 to 80°C, 85% max. (with no condensation) | |||
| Operating and storage atmosphere |
No corrosive gases | ||||
| Vibration resistance * 1 | 10 to 2,500 Hz Acceleration of 49 m/s 2 max. in the X, Y, and Z directions |
10 to 2,500 Hz Acceleration of 24.5 m/s 2 max. in the X, Y, and Z directions |
10 to 2,500 Hz Acceleration of 49 m/s 2 max. in the X, Y, and Z directions |
10 to 2,500 HzAcceleration of24.5 m/s 2 max. in the X, Y,and Z directions | |
| Impact resistance | Acceleration of 98 m/s 2 max. 3 times each in the X, Y, and Z directions |
Acceleration of 98 m/s 2 max. 3 times each in the X, Y, and Z directions |
Acceleration of 98 m/s 2 max. 3 times each in the X, Y, and Z directions |
Acceleration of98 m/s 2 max.2 times vertically | |
| Insulation resistance | 20 MΩ min. at 500 VDC between the power terminals and FG terminal | ||||
| Dielectric strength | 1,500 VAC (50 or 60 Hz) for 1 minute between the power terminals and FG terminal | ||||
| Operating position | All directions | ||||
| Insulation grade | Type B | Type F | Type B | Type F | |
| Structure | Totally enclosed, self-cooling | ||||
| Protective structure | IP65 (excluding the output shaft rotating section and lead wire ends) | ||||
| Vibration grade | V-15 | ||||
| Mounting method | Flange-mounting | ||||
| EMC Directive |
EN 55011 Class A Group 1 | ||||
| Low-voltage Directive |
EN 61000 - 6 - 2, IEC 61000-4-2/-3/-4/-5/-6/-11 | ||||
| UL standards | UL 1004 | UL:pending * 2 | |||
| CSA standards | CSA 22.2 No.100 | ||||
*1. The amplitude may be amplified by mechanical resonance. Do not exceed 80% of the specified value for extended
periods of time.
*2. UL application pending for motor sizes from 6 to 7.5 kW.
Note1. Do not use the cable when it is laid in oil or water.
Note2. Do not expose the cable outlet or connections to stress due to bending or the weight of the cable itself.
| R88M-G10030S-S2 | R88M-G20030S-S2 |
| R88D-GTA5L | R88D-GT01L |
| R88D-GT02L | R88D-GT04L |
| R88D-GT01H-Z | R88D-GT02H-Z |
| R88D-GT04H-Z | R88D-GT08H-Z |
| R88D-GT10H-Z | R88D-GT15H-Z |
| R88D-GT20H-Z | R88D-GT30H-Z |
| R88D-GT50H-Z | R88D-GT75H-Z |
| R88D-GT01H-Z | R88D-GT02H-Z |
| R88D-GT04H-Z | R88D-GT08H-Z |
| R88D-GTA5L | R88D-GT01L |
| R88D-GT02L | R88D-GT04L |
| R88D-GTA5H-Z | R88D-GT01H-Z |
