| Brand Name: | Mitsubishi | Model Number: | HC-KFS13G1 |
|---|---|---|---|
| Type: | Mitsubishi MOTOR | Current Rating: | 13.2 A |
| Shaft Size: | 24h6 Mm (Dia.) | Output Speed: | 3000 Rpm |
| Power Rating: | 1.5 KW | Supply Voltage: | 200 V;400 V |
| Width: | 130 Mm | Weight: | 9 Kg |
| High Light: | ewing machine servo motor,ac servo motor |
||

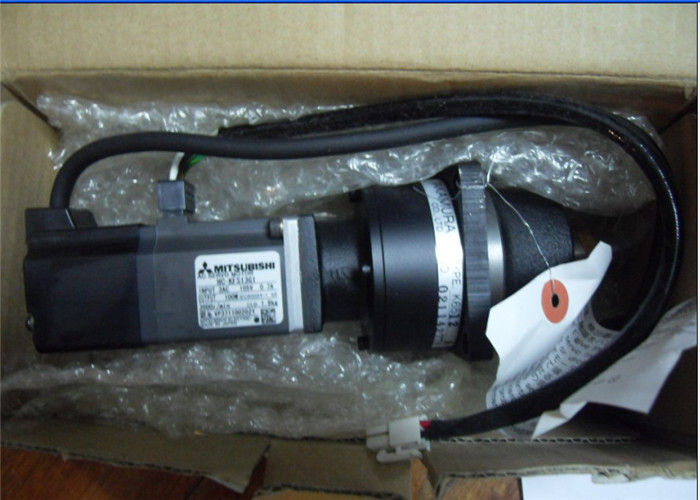

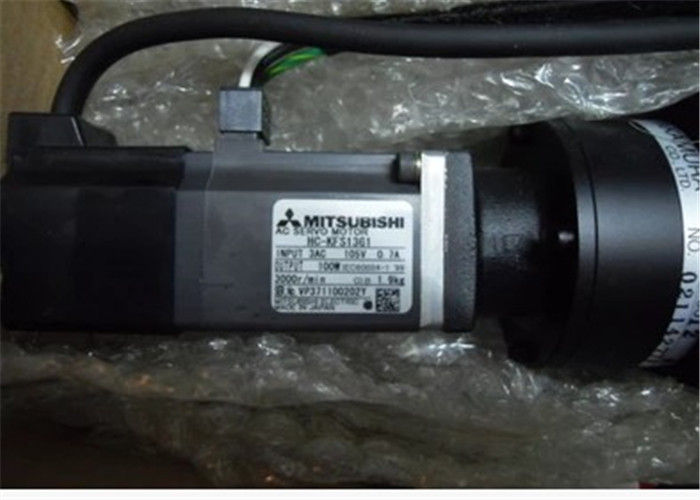

HC-KFS13G1 Industrial Servo Motor Mitsubishi 100%new Origianl
SPECIFICATION:
|
EUA Stock No30471 |
Brand/ManufacturerMitsubishi |
Manufacturer Part NumberHC-SFS1524 |
|
Product typeServo Motor |
Power rating1.5 kW |
Supply voltage200 V;400 V |
|
Current rating13.2 A |
Output speed3000 rpm |
Torque rating7.16 Nm |
|
Shaft size24h6 mm (Dia.) |
Rotor inertia20 x 10^-4 kgm² |
Minimum operating temperature0 °C |
|
Maximum operating temperature40 °C |
Weight9 kg |
Height130 mm |
|
Width130 mm |
Depth225 mm |
Description of Servo Motor HC-KFS13G1
Output1.5 KW
Maximum torque21.6 Nm
Rated Speed2000 1/min
Max speed3000 1/min
Rotor inertia0.002 kg.m²
Rated Current4.4 A
Max. Current13.2 A
Weight9 Kg
Rated Torque7.16 Nm
Below models are also available:
HF-MP053 Lower inertia, Small Capacity, 0.05KW, 3000r/min
HF-MP13 Lower inertia, Small Capacity, 0.1KW, 3000r/min
HF-MP23 Lower inertia, Small Capacity, 0.2KW, 3000r/min HF-MP43 Lower inertia, Small Capacity, 0.4KW, 3000r/min
HF-MP73 Lower inertia, Small Capacity, 0.75KW, 3000r/min
HF-KP053 Low inertia, Small Capacity, 0.05KW, 3000r/min
HF-KP13 Low inertia, Small Capacity, 0.1KW, 3000r/min
HF-KP23 Low inertia, Small Capacity, 0.2KW, 3000r/min
HF-KP43 Low inertia, Small Capacity, 0.4KW, 3000r/min HF-KP73 Low inertia, Small Capacity, 0.75KW, 3000r/min
HF-MP053B Lower inertia, Small Capacity, 0.05KW, 3000r/min, Electromagnetic brake HF-MP13B Lower inertia, Small Capacity, 0.1KW, 3000r/min, Electromagnetic brake
HF-MP23B Lower inertia, Small Capacity, 0.2KW, 3000r/min, Electromagnetic brake
HF-MP43B Lower inertia, Small Capacity, 0.4KW, 3000r/min, Electromagnetic brake
HF-MP73B Lower inertia, Small Capacity, 0.75KW, 3000r/min, Electromagnetic brake
HF-KP053B Low inertia, Small Capacity, 0.05KW, 3000r/min, Electromagnetic brake
HF-KP13B Low inertia, Small Capacity, 0.1KW, 3000r/min, Electromagnetic brake HF-KP23B Low inertia, Small Capacity, 0.2KW, 3000r/min, Electromagnetic brake
HF-KP43B Low inertia, Small Capacity, 0.4KW, 3000r/min, Electromagnetic brake
HF-KP73B Low inertia, Small Capacity, 0.75KW, 3000r/min, Electromagnetic brake
HF-SP52 Medium inertia, Medium Capacity, 0.5KW, 2000r/min
HF-SP102 Medium inertia, Medium Capacity, 1KW, 2000r/min
HF-SP152 Medium inertia, Medium Capacity, 1.5KW, 2000r/min
HF-SP202 Medium inertia, Medium Capacity, 2KW, 2000r/min HF-SP352 Medium inertia, Medium Capacity, 3.5KW, 2000r/min
HF-SP502 Medium inertia, Medium Capacity, 5KW, 2000r/min
HF-SP702 Medium inertia, Medium Capacity, 7KW, 2000r/min HF-SP52B Medium inertia, Medium Capacity, 0.5KW, 2000r/min, Electromagnetic brake HF-SP102B Medium inertia, Medium Capacity, 1KW, 2000r/min, Electromagnetic brake
HF-SP152B Medium inertia, Medium Capacity, 1.5KW, 2000r/min, Electromagnetic brake HF-SP202B Medium inertia, Medium Capacity, 2KW, 2000r/min, Electromagnetic brake
HF-SP352B Medium inertia, Medium Capacity, 3.5KW, 2000r/min, Electromagnetic brake
HF-SP502B Medium inertia, Medium Capacity, 5KW, 2000r/min, Electromagnetic brake
HF-SP702B Medium inertia, Medium Capacity, 7KW, 2000r/min, Electromagnetic brake
HF-SP51 Medium inertia, Medium Capacity, 0.5KW, 1000r/min
HF-SP81 Medium inertia, Medium Capacity, 0.85KW, 1000r/min
HF-SP121 Medium inertia, Medium Capacity, 1.2KW, 1000r/min
HF-SP201 Medium inertia, Medium Capacity, 2KW, 1000r/min
HF-SP51B Medium inertia, Medium Capacity, 0.5KW, 1000r/min, Electromagnetic brake
HF-SP81B Medium inertia, Medium Capacity, 0.85KW, 1000r/min, Electromagnetic brake
