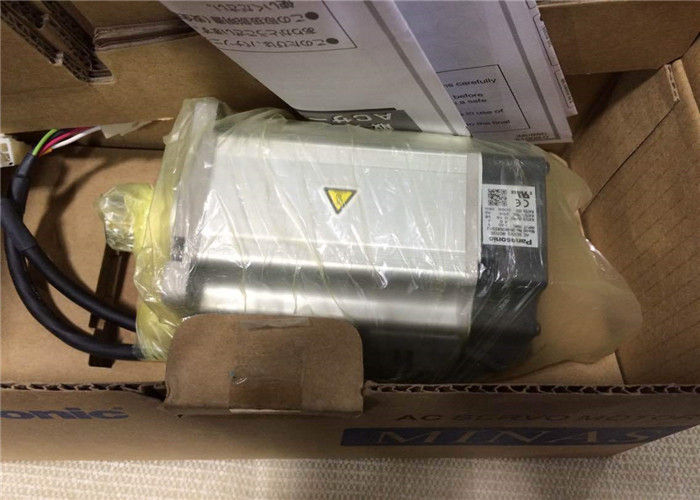

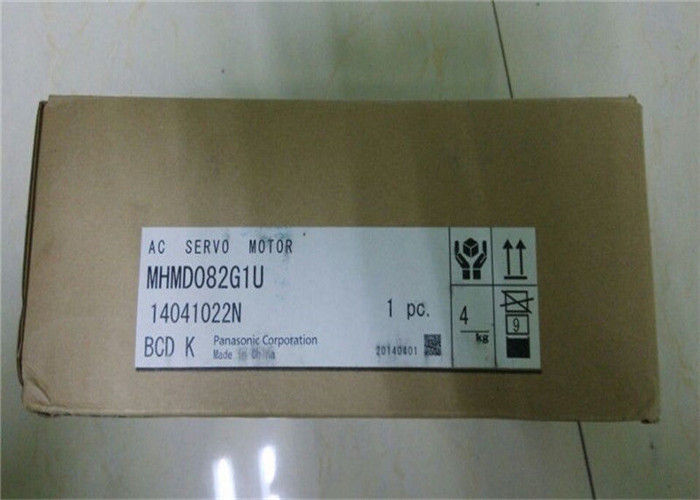

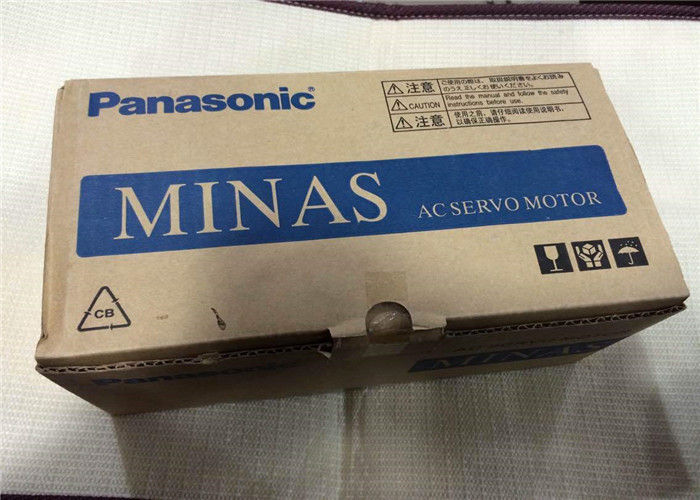

PANASONIC Servo Motor 750W 20 Bit Incremental Encoder 200V Motor MHMD082G1U
Servo; A5; 750W; 20 Bit Incremental Encoder; 200V Motor; Key & Tap Shaft (OS)
Allied Electronics & Automation
A5 - 750W 20 Bit Incremental Encoder, 200V Motor, Key & Tap Shaft (Oil Seal)
Newark
SERVOMOTOR 3000 RPM 200VAC
Technical Specifications
Physical
Weight 5.5 lb
Technical
Encoder Type Incremental
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Power Rating 750 W
RPM 3000 RPM
Termination Wire Leads
Dimensions
Mounting Hole Spacing 3.543 inch
Compliance
Approvals UL , CSA , CE , TUV
RoHS Compliant
Part Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 200VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 339.9 / 2400
Power - Rated 750W
Encoder Type Incremental
Size / Dimension Square - 3.150" x 3.150" (80.00mm x 80.00mm)
Diameter - Shaft 0.748" (19.00mm)
Length - Shaft and Bearing 1.378" (35.00mm)
Mounting Hole Spacing 3.543" (90.00mm)
Termination Style Wire Leads
Features Key, Oil Seal
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 1005 / 7100
Operating Temperature 0°C ~ 40°C
Approvals CE, CSA, cULus, TUV, UL
Weight 5.5 lbs (2.5kg)
SIMILAR PRODUCTS
MSMA5AZS1E MSMA012S1D MSMA022S1C MSMA041S1F MSMA082S1A MDMA452S1D MSMA082S1B MGMA122S1C MSMA352S1G
MSMA5AZS1F MSMA012S1E MSMA022S1D MSMA041S1G MSMA352S1H MDMA452S1G MSMA082S1C MGM MFMA082S1H
MSMA5AZS1G MSMA012S1F MSMA022S1E MSMA041S1H
3-Step gain
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.
Inertia ratio conversion
You can adjust right inertia ratio by Inertia ratio conversion input (J-SEL) of interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up quicker response of your system.
Input/output signal assignment
You can use the parameters to arbitrarily allocate the universal 10 inputs and 6 outputs. (Inputs can be selected as either A contacts or B contacts). The Panaterm setup software provides an exclusive screen for a more simplified setup.
Torque limiter switching
These can be used for applications such as simplified pressure, tension control, and sensor-less homing.
