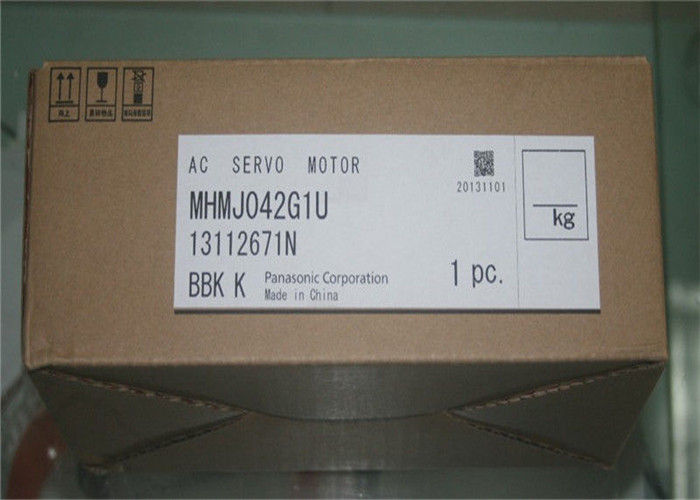

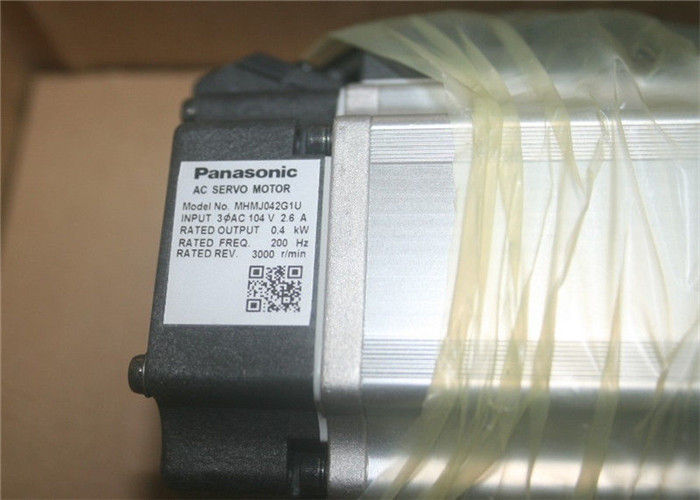

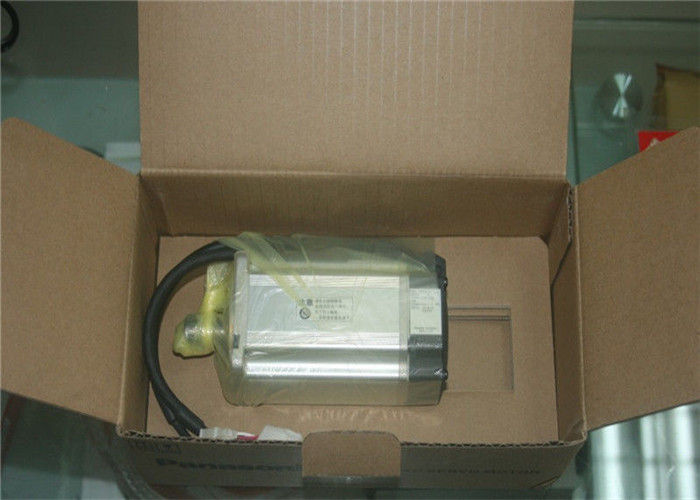

Panasonnic Function Servomotor Drive Kit 400W 3000rpm 1.3NM Control MHMJ042G1U

: Large Image : Panasonnic Function Servomotor Drive Kit 400W 3000rpm 1.3NM Control MHMJ042G1U

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonnic
Model Number:	MHMJ042G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	2-3 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Panasonnic	Model:	MHMJ042G1U
Place Of Origin:	Japan	Type:	AC SERVO MOTOR
Voltage - Rated:	200VAC	RPM:	3000 RPM
Highlight:	ewing machine servo motor , ac servo motor

Panasonnic Function Servomotor Drive Kit 400W 3000rpm 1.3NM Control MHMJ042G1U

3-Step gain
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.

Specifications:

Categories Motors, Solenoids, Driver Boards/Modules

Motors - AC, DC

Manufacturer Panasonic Industrial Automation Sales

Series MINAS A5

Part Status Active

Type AC Motor

Function Servomotor

Motor Type -

Voltage - Rated 200VAC

RPM 3000 RPM

Torque - Rated (oz-in / mNm) 184.1 / 1300

Power - Rated 400W

Encoder Type Incremental

Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)

Diameter - Shaft 0.551" (14.00mm)

Length - Shaft and Bearing 1.181" (30.00mm)

Mounting Hole Spacing 2.756" (70.00mm)

Termination Style Wire Leads

Features Key, Oil Seal

Gear Reduction Ratio -

Torque - Max Momentary (oz-in / mNm) 538.1 / 3800

Operating Temperature 0°C ~ 40°C

Approvals CE, CSA, cULus, TUV, UL

Weight 3.1 lbs (1.4kg)

Product Details
Panasonic A-Series Motor
Manufacturer: Panasonic
Series: A-Series

Shipping and Order Information
TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
Shipping options vary by location. Call for an accurate quote.
Warranty
The MHMJ042G1U comes with a 1 year warranty.

SIMILAR PRODUCTS

MUMA5AZP1S, MUMA5AZP1T, MUMA012P1S, MUMA012P1T, MUMA022P1S, MUMA022P1T, MUMA042P1S, MUMA042P1T, MHMJ042P1U, MHMD042G1U, MHMJ082P1U, MHMD082G1U, MSME082G1V, MHMJ102P1G, MDME102GCGM, MDME152GCGM, MDME202GCGM, MADHT1505, MADKT1505CA1, MBDJT2207, MADHT1507CA1, MADKT1507CA1, MBDJT2210, MBDHT2510, MBDKT2510CA1, MCDHT3520, MCDKT3520CA1, MCDJT3220, MCDJT3230, MDDHT3530, MDDKT3530CA1, MDDHT5540, MDDKT5540CA1, MEDHT7364, MEDKT7364CA1, MFDHTA390, MFDKTA390CA1, MFDHTB3A2, MFDKTB3A2CA1, MGDHTC3B4, MGDKTC3B4CA1, MHDHTC3B4, MHDKTC3B4CA1 MDME302GCGM, MDME402GCGM, MDME502GCGM

Inertia ratio conversion
You can adjust right inertia ratio by Inertia ratio conversion input (J-SEL) of interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up quicker response of your system.

Input/output signal assignment
You can use the parameters to arbitrarily allocate the universal 10 inputs and 6 outputs. (Inputs can be selected as either A contacts or B contacts). The Panaterm setup software provides an exclusive screen for a more simplified setup.

Torque limiter switching
These can be used for applications such as simplified pressure, tension control, and sensor-less homing.
