Product Details:
Payment & Shipping Terms:
|

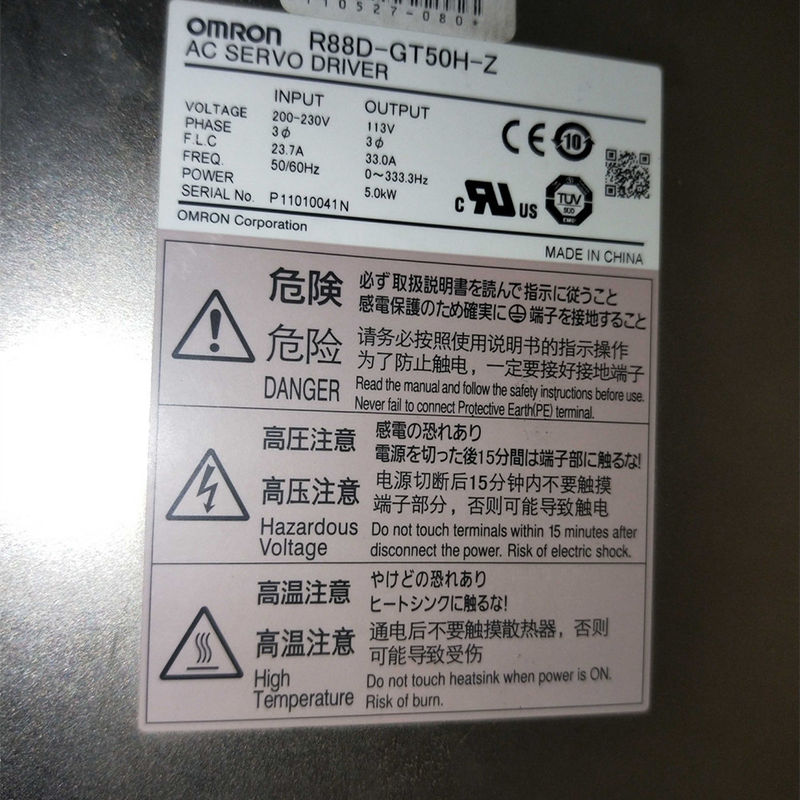

| Brand: | OMRON | Model: | R88D-GT50H-Z |
|---|---|---|---|
| Origin: | Japan | Rate Voltage: | 200 V, |
| Power: | 5kW | Phase: | Three-Phase |
| Highlight: | ac servo motor,electric servo motor |
||

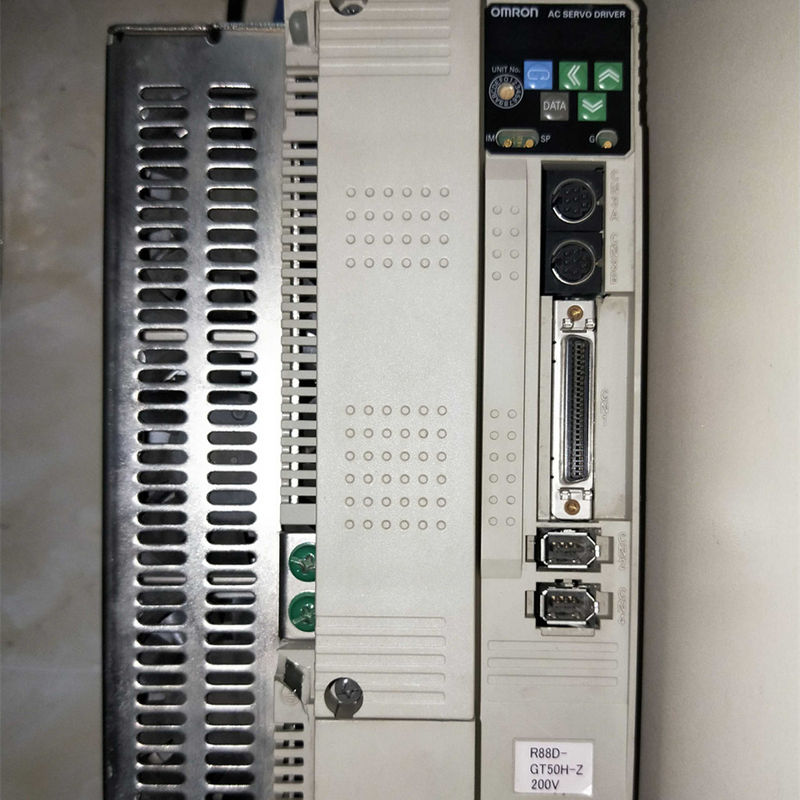

Analog Inputs Pulse Train Inputs R88D-GT50H-Z OMRON AC Servo driver
Quick details:
|
Type
|
Original servo
|
|
Frequency
|
50HZ/60HZ
|
|
Phase
|
Single-phase
|
|
AC Voltage
|
Three-phase 170 ~ 255 VAC/Single-phase 200 ~ 255 VAC
|
|
Warranty
|
Usually:12 months for new, 3 months for used
|
|
Quality
|
100% tested ok
|
|
Delivery time
|
3-5 workdays
|
| Specifications | Model | |
|---|---|---|
| Single-phase 100 VAC | 50 W | R88D-GTA5L |
| 100 W | R88D-GT01L | |
| 200 W | R88D-GT02L | |
| 400 W | R88D-GT04L | |
| Single-phase 200 VAC | 50 W | R88D-GT01H |
| 100 W | ||
| 200 W | R88D-GT02H | |
| 400 W | R88D-GT04H | |
| Single-phase/three-phase 200 VAC | 750 W | R88D-GT08H |
| 1 kW | R88D-GT10H | |
| 900 W | R88D-GT15H | |
| 1 kW | ||
| 1.5 kW | ||
| Three-phase 200 VAC | 2 kW | R88D-GT20H |
| 2 kW | R88D-GT30H | |
| 3 kW | ||
| 3 kW | R88D-GT50H | |
| 4 kW | ||
| 4.5 kW | ||
| 5 kW | ||
| 6 kW | R88D-GT75H | |
| 7.5 kW | ||
| Item | R88D- GT01H |
R88D- GT02H |
R88D- GT04H |
R88D- GT08H |
R88D- GT10H |
R88D- GT15H |
||
|---|---|---|---|---|---|---|---|---|
| Continuous output current (rms) | 1.16 A | 1.6 A | 2.7 A | 4.0 A | 5.9 A | 9.8 A | ||
| Momentary maximum output current (rms) |
3.5 A | 5.3 A | 7.1 A | 14.1 A | 21.2 A | 28.3 A | ||
| Input power supply |
Main circuit | Power supply capacity |
0.5 KVA | 0.5 KVA | 0.9 KVA | 1.3 KVA | 1.8 KVA | 2.3 KVA |
| Power supply voltage |
Single-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz |
Single-phase or three-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz |
||||||
| Rated current |
1.3 A | 2.0 A | 3.7 A | 5.0/3.3 *1 A | 7.5/4.1 *1 A | 11/8.0 *1 A | ||
| Control circuit |
Power supply voltage |
Single-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz | ||||||
| Rated current |
0.05 A | 0.05 A | 0.05 A | 0.05 A | 0.07 A | 0.07 A | ||
| Heat gen- erated |
Main circuit | 14.3 W | 14.8 W | 23.6 W | 38.7 W | 52.9 W | 105.9 W | |
| Control circuit | 4.5 W | 4.5 W | 4.5 W | 4.3 W | 6.1 W | 6.1 W | ||
| PWM frequency | 12.0 kHz | 6.0 kHz | ||||||
| Weight | Approx. 0.8 kg |
Approx. 0.8 kg |
Approx. 1.1 kg |
Approx. 1.5 kg |
Approx. 1.7 kg |
Approx. 1.7 kg |
||
| Maximum applicable motor capacity |
100 W | 200 W | 400 W | 750 W | 1 k W | 1.5 kW | ||
| Appli- cable Servo- motors (R88M-) |
3,000-r/min Servomotors |
[INC] | G05030H G10030H |
G20030H | G40030H | G75030H | --- | --- |
| [ABS] | G05030T G10030T |
G20030T | G40030T | G75030T | --- | G1K030T G1K530T |
||
| 3,000-r/min Flat Servomotors |
[INC] | GP10030H | GP20030H | GP40030H | --- | --- | --- | |
| [ABS] | GP10030T | GP20030T | GP40030T | --- | --- | --- | ||
| 2,000-r/min Servomotors |
[ABS] | --- | --- | --- | --- | G1K020T | G1K520T | |
| 1,000-r/min Servomotors |
[ABS] | --- | --- | --- | --- | --- | G90010T | |
| Control method | All-digital servo | |||||||
| Inverter method | IGBT-driven PWM method | |||||||
| Per- form- ance |
Speed control range | 1:5000 | ||||||
| Speed variability: Load characteristic |
0.01% or less at 0% to 100% (at rated speed) | |||||||
| Speed variability: Voltage characteristic |
0% at ±10% of rated voltage (at rated speed) | |||||||
| Speed variability: Temperature characteristic |
±0.1% or less at 0 to 50°C (at rated speed) | |||||||
| Torque control reproducibility |
±3% | |||||||
*1. The left value is for single-phase input power and the right value is for three-phase input power.
