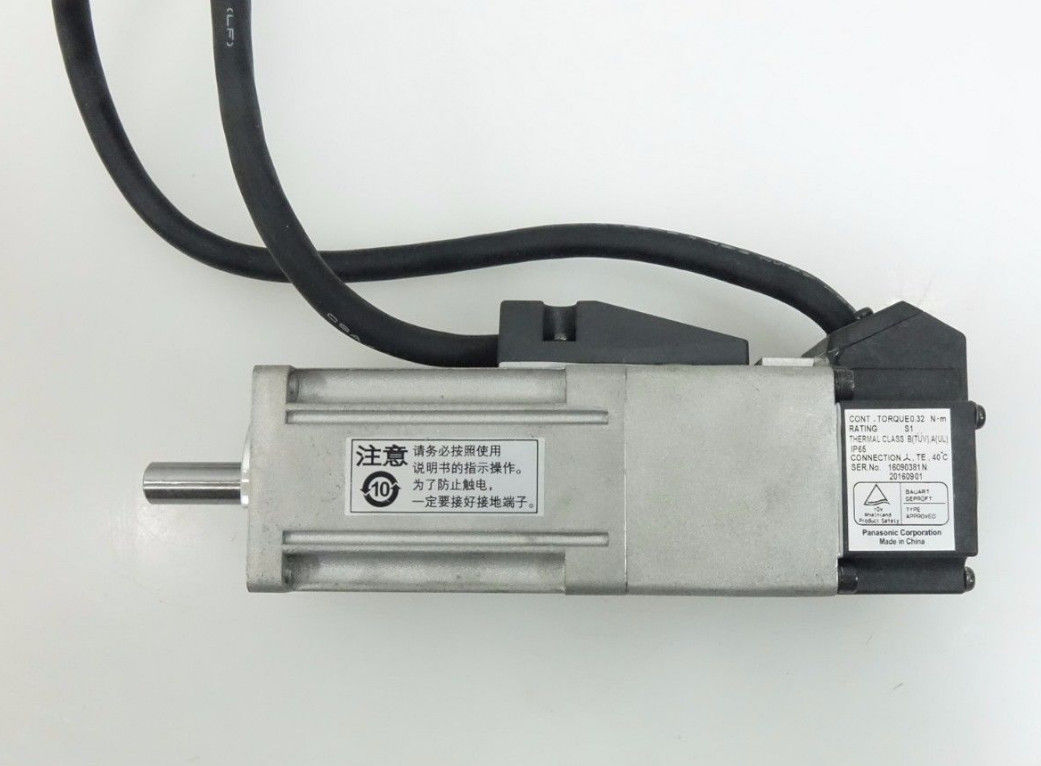

PANASONIC Minas E 1.89 inch Incremental servo motor 100W MUMA012P1T
Product Details:
| Place of Origin: | Japan |
| Brand Name: | Panasonnic |
| Model Number: | MUMA012P1T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | New in original box |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | Panasonnic | Model: | MUMA012P1T |
|---|---|---|---|
| Place Of Origin: | Japan | Type: | AC SERVO MOTOR |
| Voltage - Rated: | 200VAC | RPM: | 3000 RPM |
| Highlight: | ewing machine servo motor,ac servo motor |
||
Product Description
PANASONIC Minas E 1.89 inch Incremental servo motor 100W MUMA012P1T
Specifications:
Part Number MUMA012P1T
Product Servo Motor
Product name MINAS E series Servo Motor
Features Compact Servo Only for Position Control.
Part Number MUMA012P1T
Type Ultra low inertia
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Voltage specifications 200 V
Rated output 100 W
Rated current (A (rms)) 1.0
Holding brake with
Mass (kg) 0.70
Oil seal without

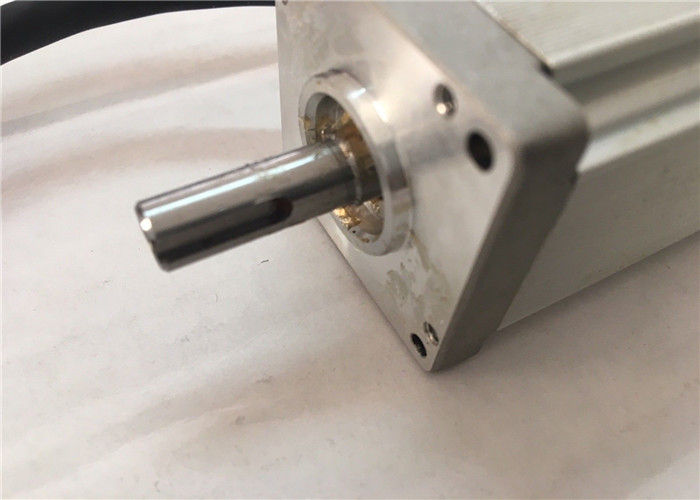

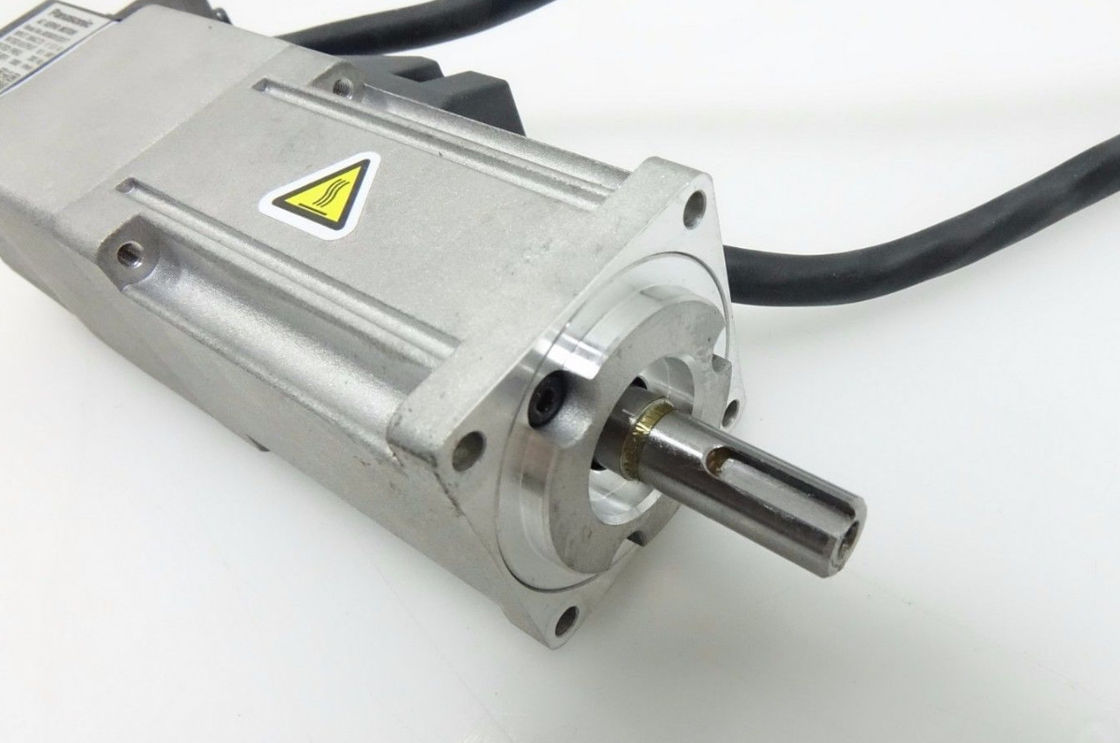

Shaft Key-way, center tap
Rated torque (N ⋅ m) 0.32
Momentary Max. peak torque (N ⋅ m) 0.95
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P2891
About regenerative brake frequency Note) 1. Regenerative brake frequency represents the frequency of the motor's stops from the rated speed with deceleration without load.
⋅ If the load is connected, frequency will be defined as 1/( m + 1 ), where m = ( load moment of inertia ) / ( rotor moment of inertia ).
⋅ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to the square of ( running speed / rated speed ).
⋅ Power supply voltage is AC115 V ( at 100 V of the main voltage ). If the supply voltage fluctuates, frequency is in inverse proportion to the square of ( Running supply voltage /115 ) relative to the value in the table.
⋅ When regeneration occurs continuosly such cases as running speed frequently changes or vertical feeding, consult us or a dealer.
Note) 2. If the effective torque is within the rated torque, there is no limit in regenerative brake.
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.036
Recommended moment of inertia ratio of the load and the rotor 30 times or less
About recommended moment of inertia ratio of the load and the rotor Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value.
Rotary encoder: specifications 2500 P/r Incremental
Rotary encoder: Resolution 10000
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| Fanuc motor A0- | Yokogawa transmitter EJA- |
SIMILAR PRODUCTS
MSM022Q8V MSMA202DIH MSM012A2UE MSM042H1B MSM5AZJ2QX MSMQ12QBV MSM042A2UE MSMA022A2W MSMK042BLN MSM021A1F MSM022A2UE MSM022A1BE MSMK021BLA MHM502A1C MFA020LB2NSB MSM012A6A MSM5AZA1A MQMA022P1B MBMK082BLN MQMS042A65E MSM041A1C MSM021P1N MSM5AZP1P MBMK042BLEU MSMA042A1F MSMA012A1F MSMA042A84 MSMA022C1F MBMK011BLA MSM3AAD1E MSM3AAD1G MSM8AAD1G MSM5AAD1F MSM8AAD1F AMKC060B10KFG MSM011ABE MSM012A1A MSMA3AZA1N MSM042F2G MSM-12F2G MSMA102A1G MUMA022P1S MUMA012P1T MDM402A1H MFA0204D2BSH MDM402A1G MSM302A1H MSM302A1G MBMK021BLA MSM3AZA1N MSMZ041Q2G MSM022A1A MQMA042P1A MUMA042A3E MSM011A1A MFA024LA2NS MSM021A2NE MSM012F2G MSM022F2G MSM5AZP1C MSM012P1B MSM022P1A MSM042A1A MSM021AJB MSM011A3E MDM202Q2V MDM102Q2V MSMD082P1S MSM012QBV MSM022A1E MSMA022A1E MSM011D1B MSM012A1F MSMA5AZP1B MSMA012P1A MSD021P1E MSD021A1A MSDA013A1A MQDA013A1A MSD013P1E MSD023P1E MSD043P1E MSD023P1EA MSD103A1V06 MSD083A1X MSD043D1E DV88010LDM04 DV88010LDM01 DV85010LDMBS DV88010LDMS2 MSD083A1XG MSD011AX08 MSD013A1XXV MSD013A1X MSD011A1X MKDET131OP MSDA011A1A MSDA043A1A02 MQDA023D1A MHD503A1V MSD041A4XX MSD021P4E MSD5A1P4E MSD011P4E MSD3A3A1X MDD103AIVE MDD253AIVE MDD153AIVE MDD103A1VE MDD253A1VE MDD153A1VE
■Adaptive filter
●Makes the notch filter frequency automatically follow the machine resonance frequency.
●Suppression of "Judder" noise of the machine can be expected which is caused by variation of the machines or resonance frequency due to aging.
■2-channel notch filters
●2-channel notch filters are equipped in the driver independent from adaptive filter.
●You can set up both frequency and width for each of 2 filters, and set up frequency in unit of 1Hz.
●Suppression of "Judder" noise of the machine .
■Damping control
●2-channel damping filters are equipped in this driver. You can suppress vibration occurring at both starting and stopping
in low stiffness machine, by manually setting up vibration frequency in 0.1Hz unit.
●You can also switch the vibration frequency set by 2-channel with rotating direction or with an external input to
correspond to the variation of vibration frequency caused by the machine position.
●Easy setup with entry of only frequency and filter value. Improper setup values do not result in unstable operation
3-Step gain
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.
A 3-step gain switch is available in addition to the normal gain switch.This chooses appropriate gain tunings at both stopping and running. The 3-step gain switch gives you choices of 3 different tunings for normal running, stopping for faster positioning and at stopping. The right gaining tunings achieve lower vibration and quicker positioning time of your application.
Inertia ratio conversion
You can adjust right inertia ratio by Inertia ratio conversion input (J-SEL) of interface. When you have significant load inertia changes, it can adjust unbalanced speed and position gain turning combination. lt ends up quicker response of your system.
Input/output signal assignment
You can use the parameters to arbitrarily allocate the universal 10 inputs and 6 outputs. (Inputs can be selected as either A contacts or B contacts). The Panaterm setup software provides an exclusive screen for a more simplified setup.
Torque limiter switching
These can be used for applications such as simplified pressure, tension control, and sensor-less homing.
