Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MHMD082G1U |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Delivery Time: | 2-3days | Power - Rated: | 50W |
| Voltage - Rated: | 100, 200VAC | RPM: | 3000 RPM |
| Weight: | 0.705 Lb (319.78g) | ||
| Highlight: | ac servo motor,electric servo motor |
||

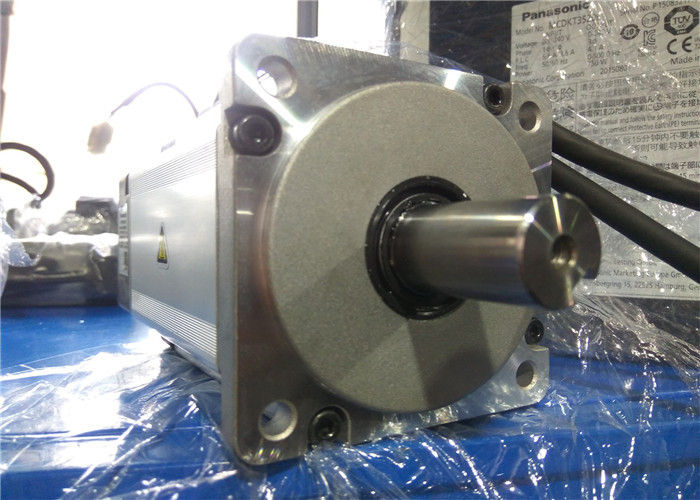

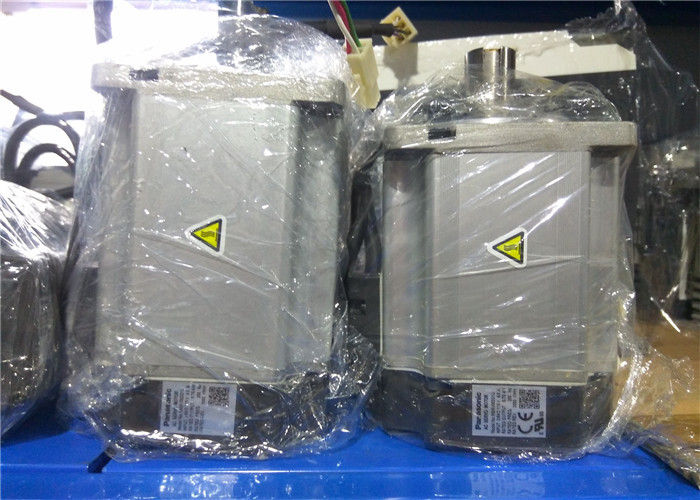

MHMD082G1U AC Motor Servomotor 3000 RPM 750W Incremental 200VAC Panasonic
Descriptions:
Servo; A5; 750W; 20 Bit Incremental Encoder; 200V Motor; Key & Tap Shaft (OS)
A5 - 750W 20 Bit Incremental Encoder, 200V Motor, Key & Tap Shaft (Oil Seal)
SERVOMOTOR 3000 RPM 200VAC
Technical Specifications:
|
Physical |
|
|
Weight |
5.5 lb |
|
Technical |
|
|
Encoder Type |
Incremental |
|
Max Operating Temperature |
40 °C |
|
Min Operating Temperature |
0 °C |
|
Power Rating |
750 W |
|
RPM |
3000 RPM |
|
Termination |
Wire Leads |
|
Dimensions |
|
|
Mounting Hole Spacing |
3.543 inch |
|
Compliance |
|
|
Approvals |
UL , CSA , CE , TUV |
|
RoHS |
Compliant |
Product Overview:
|
Digi-Key Part Number |
1110-4022-ND |
|---|---|
|
Quantity Available |
8 |
|
Manufacturer |
|
|
Manufacturer Part Number |
MHMD082G1U |
|
Description |
SERVOMOTOR 3000 RPM 200VAC |
|
Manufacturer Standard Lead Time |
11 Weeks |
|
Detailed Description |
AC Motor Servomotor 3000 RPM 750W Incremental 200VAC |
| Product Attributes | Select All |
| Categories | Motors, Solenoids, Driver Boards/Modules |
|---|---|
| Motors - AC, DC | |
| Manufacturer | Panasonic Industrial Automation Sales |
| Series | MINAS A5 |
| Part Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 200VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 339.9 / 2400 |
| Power - Rated | 750W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 3.150" x 3.150" (80.00mm x 80.00mm) |
| Diameter - Shaft | 0.748" (19.00mm) |
| Length - Shaft and Bearing | 1.378" (35.00mm) |
| Mounting Hole Spacing | 3.543" (90.00mm) |
| Termination Style | Wire Leads |
| Features | Key, Oil Seal |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 1005 / 7100 |
| Operating Temperature | 0°C ~ 40°C |
| Approvals | CE, CSA, cULus, TUV, UL |
| Weight | 5.5 lbs (2.5kg) |
The following are some of the drive models, both new and used are stocked:
MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E
