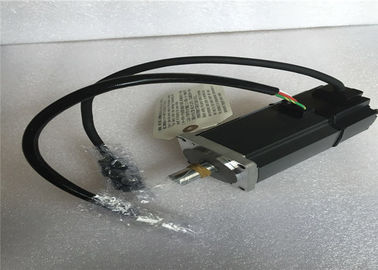

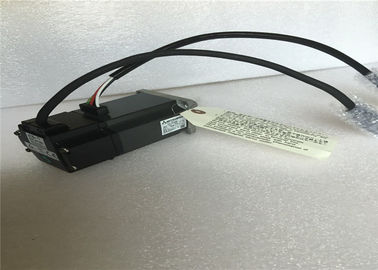

HC-KFS053BK Mitsubishi Servo Motor Industrial Servo Motor 3000 Rpm 200 V 50 W

Mitsubishi servo motor HC-KFS053BK Industrial Servo Motor 3000 rpm 200 V 50 W

HC-KFS053BK Description

HC-KFS053BK Key Features

• Low Inertia Design: Optimized rotor design for ultra-fast acceleration, deceleration, and exceptional dynamic response.
• Integrated Electromagnetic Brake: 24VDC fail-safe brake (0.3 Nm holding torque) for secure load holding and safety.
• High-Resolution Absolute Encoder: 17-bit (131072 PPR) for precise positioning and no position loss on power-up.
• Superior Torque Characteristics: Rated torque of 0.16 Nm and maximum torque of 0.48 Nm (300% overload).
• Keyway Shaft: Standard JIS keyway shaft (Φ11mm) ensures reliable, backlash-free power transfer to loads.
• IP55 Environmental Protection: Totally enclosed, non-ventilated construction for dust and water jet resistance.
• Compact & Lightweight: Small footprint (40mm flange) and low weight for easy integration into tight spaces.
• Class B Insulation: High thermal capacity (130°C) for stable, long-term operation.
• Self-Cooling: Maintenance-free, fan-less operation for quiet and reliable performance.
• Wide Compatibility: Designed to seamlessly interface with standard industrial servo drives.

HC-KFS053BK Materials & Applications

Materials

• Frame & Flange: High-grade cast aluminum alloy with anti-corrosive coating for strength and durability.
• Shaft: Precision-ground, hardened alloy steel with a machined keyway for maximum wear resistance.
• Stator: High-quality silicon steel laminations with Class B insulated copper windings for efficiency.
• Rotor: High-performance neodymium permanent magnets for stable and high torque output.
• Brake Assembly: 24VDC electromagnetic fail-safe brake with friction discs for secure holding.
• Encoder: Sealed 17-bit absolute optical encoder for accurate position feedback.
• Seals: Nitrile rubber (NBR) seals for IP55 protection against dust and moisture.
• Connectors: Industrial-grade multi-pin connectors for power, brake, and encoder signals.

Typical Applications

• Semiconductor & Electronics: Precision pick-and-place machines, PCB assembly, and test equipment.
• Industrial Robotics: Small articulated robots, SCARA robots, and collaborative robot arms.
• Automation & Assembly: X-Y positioning tables, assembly lines, and small conveyor systems.
• Packaging Machinery: Compact labeling, capping, and cutting machines requiring precise positioning.
• Machine Tools: Small CNC machines, engravers, and high-speed precision spindles.
• Vertical Axis Applications: Elevators, lifts, and Z-axis mechanisms where safety holding is critical.
• Textile & Printing: High-speed winding, embroidery, and digital printing machinery.

HC-KFS053BK Important Parameters
