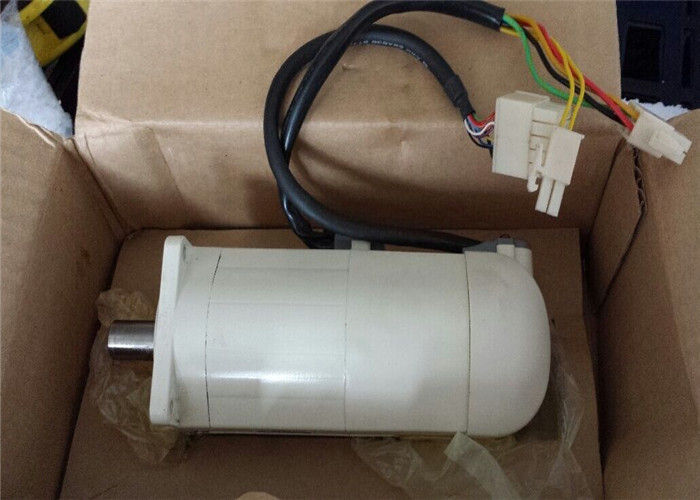

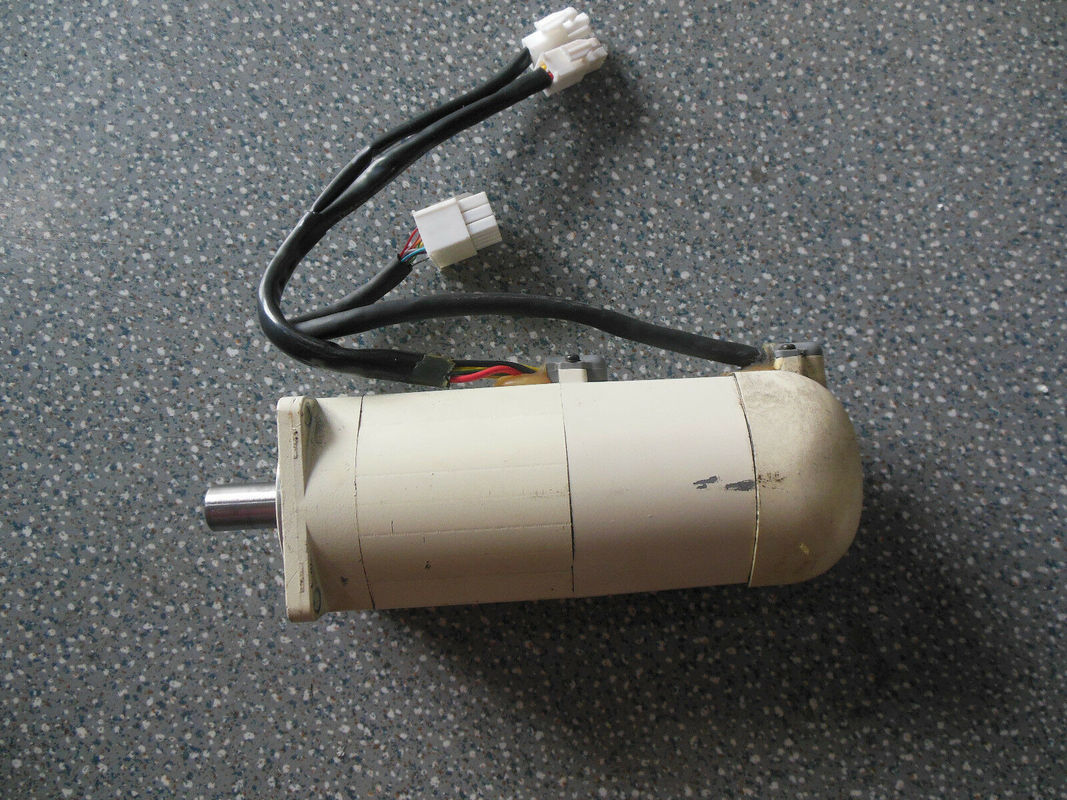

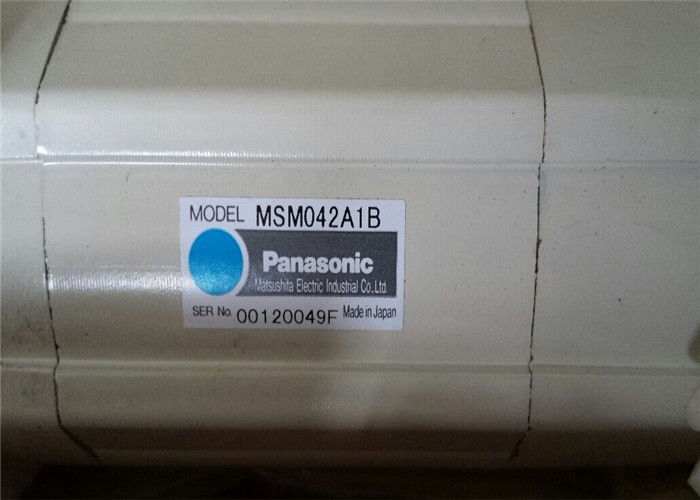

PANASONIC Industrial SERVO MOTOR MSM042A1B FREE EXPEDITED SHIPPING MSM042A1B
Specifications:
Categories Motors, Solenoids, Driver Boards/Modules
Motors - AC, DC
Manufacturer Panasonic Industrial Automation Sales
Series MINAS A5
Part Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 200VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 184.1 / 1300
Power - Rated 400W
Encoder Type Incremental
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.551" (14.00mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Wire Leads
Features Key, Oil Seal
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 538.1 / 3800
Operating Temperature 0°C ~ 40°C
Approvals CE, CSA, cULus, TUV, UL
Weight 3.1 lbs (1.4kg)
!
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- |
Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- |
Emerson VE-,KJ- |
| Honeywell TC-,TK- |
GE Modules IC - |
| Fanuc motor A0- |
Yokogawa transmitter EJA- |
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279
SIMILAR PRODUCTS
MHMA202S1F MHMA302S1F MHMA402S1F
MHMA502S1F MHMA102S1G MHMA152S1G
MHMA202S1G MHMA302S1G MHMA402S1G
MHMA502S1G MHMA102S1H MHMA152S1H
MHMA202S1H MHMA302S1H MHMA402S1H
MHMA502S1H MHMA102S1N MHMA152S1N
MHMA202S1N MHMA302S1N MHMA402S1N
MHMA502S1N MHMA102S1P MHMA152S1P
MHMA202S1P MHMA302S1P MHMA402S1P
MHMA502S1P MHMA102S1Q MHMA152S1Q
MHMA202S1Q MHMA302S1Q MHMA402S1Q
MHMA502S1Q MHMA102S1R MHMA152S1R
MHMA202S1R MHMA302S1R MHMA402S1R
Introduction:
Ever order a motor on power, speed, and enclosure? PO says maybe "5 hp, 1,800 rpm, TEFC."
New-motor nameplate says "HP 5, RPM 1748, Enclosure TEFC, Des B, Frame 184T, Amps 7.0,
PH 3, HZ 60, Duty Cont, Volts 460, Type P, Amb 40 C, SF 1.15, INS CL F, EFF 82.5, P.F. 80, DE
bearing 35BC02JGG30A26, ODE bearing 3OBC02JGG3OA26."
Should you reject the motor because it is not rated at 1,800 rpm? What does all that extra
information on the nameplate mean? Do you care? The answers are "maybe," "we'll discuss it in
a minute," and "you probably should."
To define the basic performance and mounting parameters of a motor, the National Electrical
Manufacturers Association (NEMA) defines some basic design and dimensional parameters in
NEMA Standard MG 1. These parameters are then coded onto the motor nameplate to give you a
basic definition of what you have received. Manufacturers often include additional information to
further define some key motor features.
Section MG 1-10.40, "Nameplate Marking for Medium Single-Phase and Polyphase Induction
Motors," of the NEMA standard requires that "The following minimum amount of information shall
be given on all nameplates of single-phase and polyphase induction motors. For abbreviations,
see MG 1-1.80."
* Manufacturer's type and frame designation
* Horsepower output.
* Time rating. (See MG 1-10.36.)
* Maximum ambient temperature for which motor is designed. (See Note I of MG 1-12.43.)
* Insulation system designation.
* RPM at rated load.
* Frequency.
* Number of phases.
* Rated load current.
* Voltage.
* Code letter for locked rotor kVA. (See MG 1-10.37.)
* Design letter for medium motors. (See MG 1-1.16.)
* NEMA nominal efficiency when required by MG 1- 12.55
* Service factor if other than 1.0.
