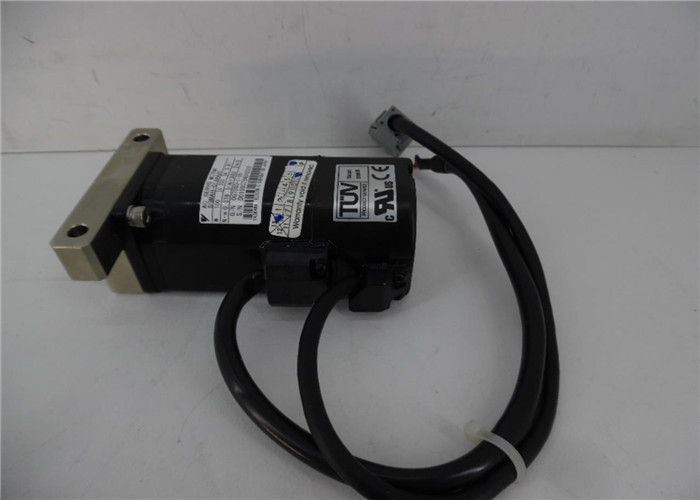

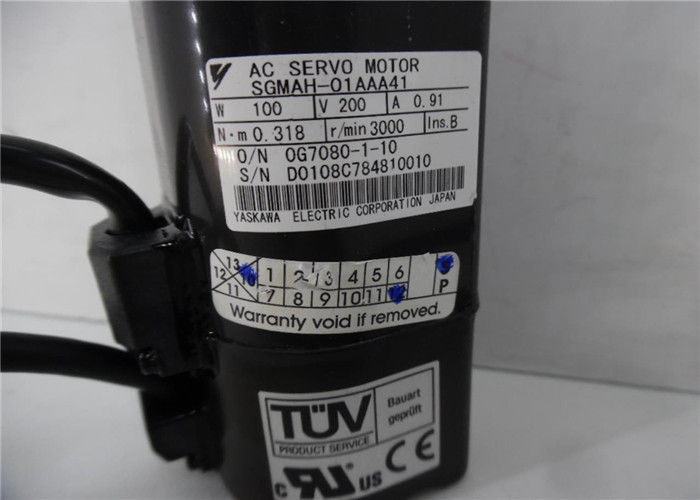

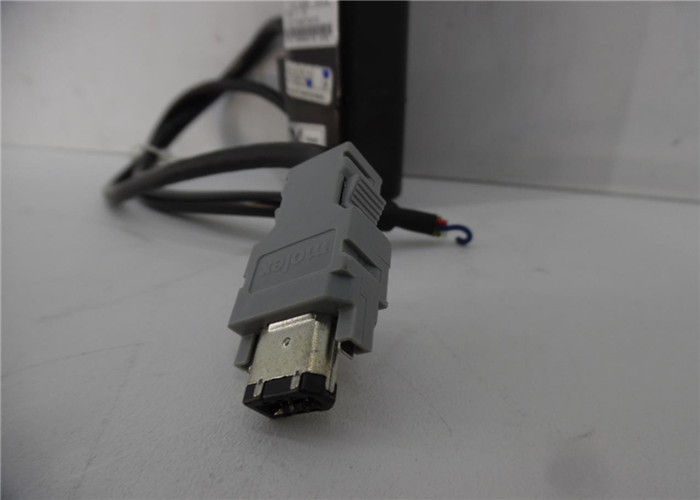

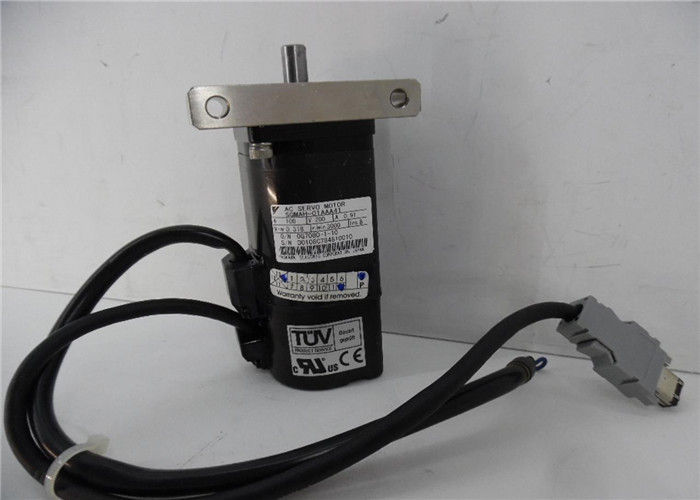

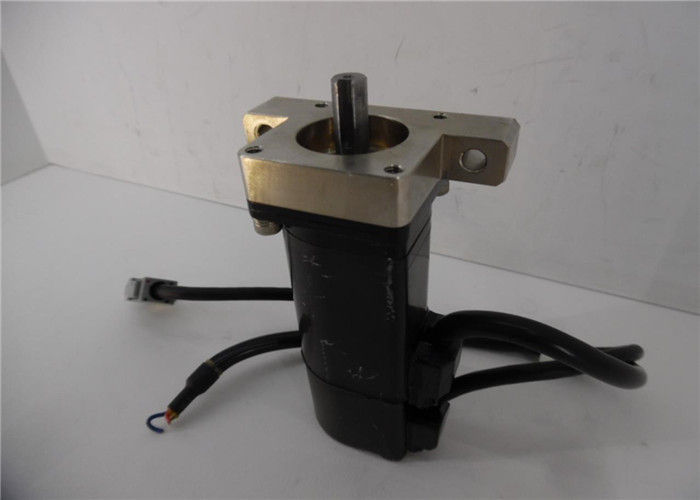

Yaskawa Electric SGMAH-02AAA41 200w AC Servo Motor SGMAH01AAA41 200v 3000RPM
Detailed Product Description
| Brand: |
Yasakawa |
Model: |
SGMAH-02AAA41 |
| Palce Of Origin: |
Japan |
Type: |
Servo Motor |
| Supply Voltage: |
100W |
Current: |
0.91A |
| Ins: |
B |
R/min: |
3000 |
| Highlight: |
ac servo motor, electric servo motor |
Yaskawa Electric SGMAH-02AAA41 200w AC Servo Motor SGMAH01AAA41 200v 3000RPM
Servomotor Type: SGMAH Sigma II
Rated Output: 100W (0.25HP)
Power Supply: 200V
Encoder Specifications: 13-bit (2048 x 4) Incremental Encoder; Standard
Revision Level: Standard
Shaft Specifications: Straight with key and tap
Accessories: Standard; without brake
Option: D
Type: Omron
