Product Details:
Payment & Shipping Terms:
|
| Brand: | Yaskawa | Model: | SGMAH-02A1A6C |
|---|---|---|---|
| Type: | AC Motor | Place Of Origin: | Japan |
| Rated Output:: | 200W | Supply Voltage: | 100V |
| Ins: | B | Options:: | Without Brake |
| Highlight: | ac servo motor,electric servo motor |
||

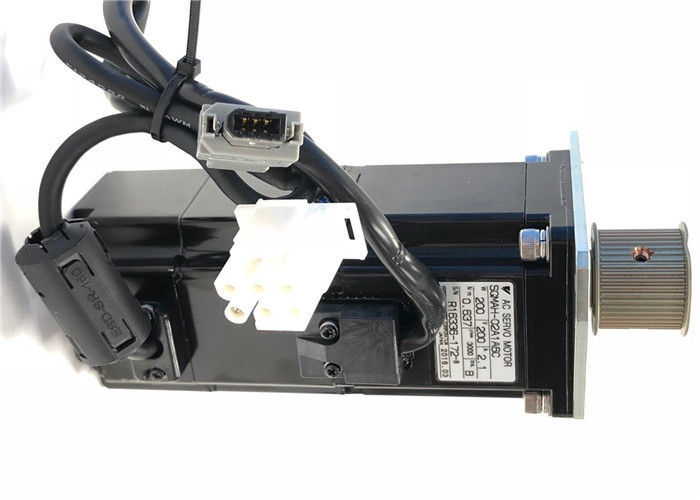

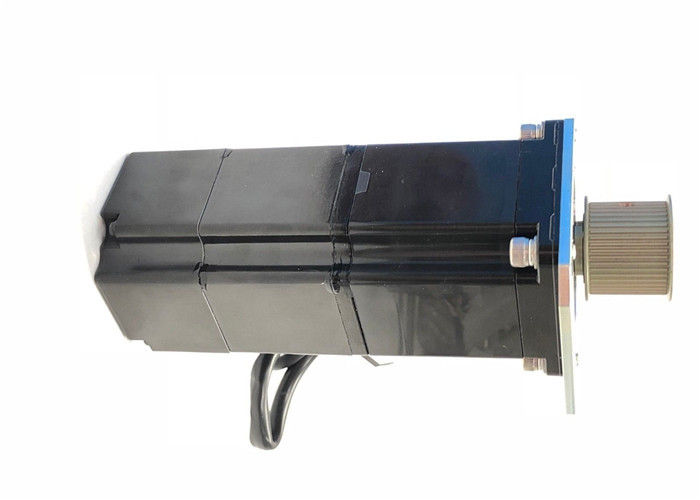

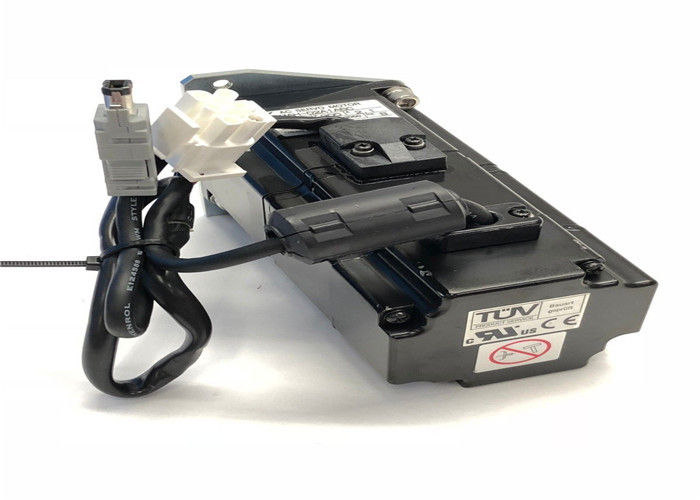

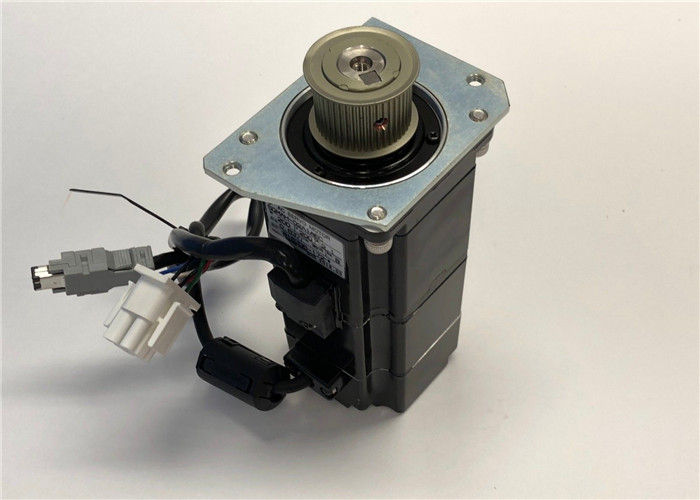

Industrial Yaskawa Electric AC Servo Motor 0.91A 200V Japan SGMAH-02A1A6C
Item specifics
Model SGMAH-02A1A6C
Product Type AC Servo Motor
Rated Output 100w
Rated Torque0.318 Nm
Rated Speed 3000RPM
Power Supply Voltage 200vAC
Rated Current 0.91Amps
OTHER SUPERIOR PRODUCTS
SIMILAR PRODUCTS
The servo motor consists of three components: a motor, an encoder and a driver. The driver compares the positioning command and position/speed information from the encoder and controls the drive current. The servo motor always detects the motor status with the positioning/speed information from the encoder.
Even if the motor stops, the servo motor outputs the alarm signal to the controller so that you can detect the abnormalities. The servo motor must adjust the control type parameters according to the rigidity of mechanism and load conditions, however, the real-time automatic tuning has made the adjustment easy in recent years.
The pulse width sent to servo ranges as follows:
Minimum: 1 millisecond ---> Corresponds to 0 rotation angle.
Maximum: 2 millisecond ---> Corresponds to 180 rotation angle.
Any length of pulse in between will rotate the servo shaft to its corresponding
angle. For example, 1.5 ms pulse corresponds to rotation angle of 90 degree.
This is will explained in figure below.
