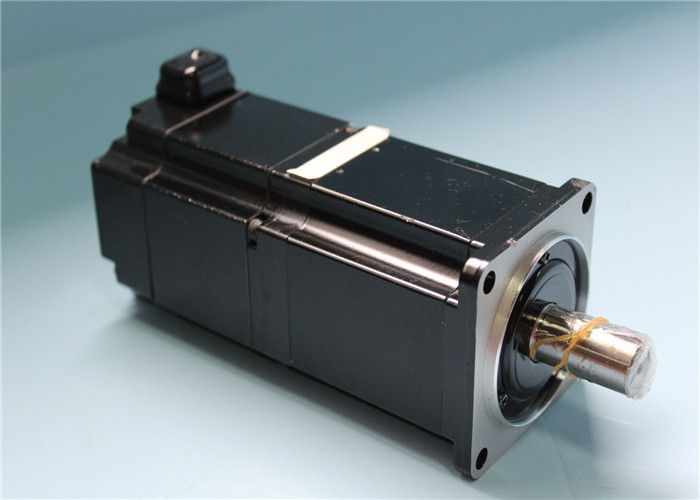

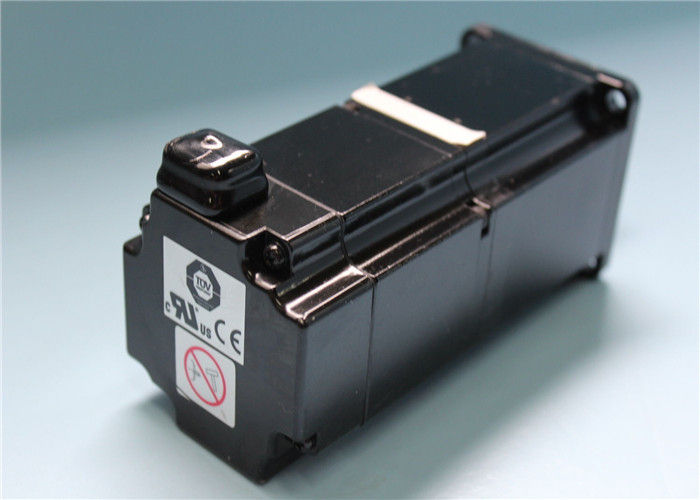

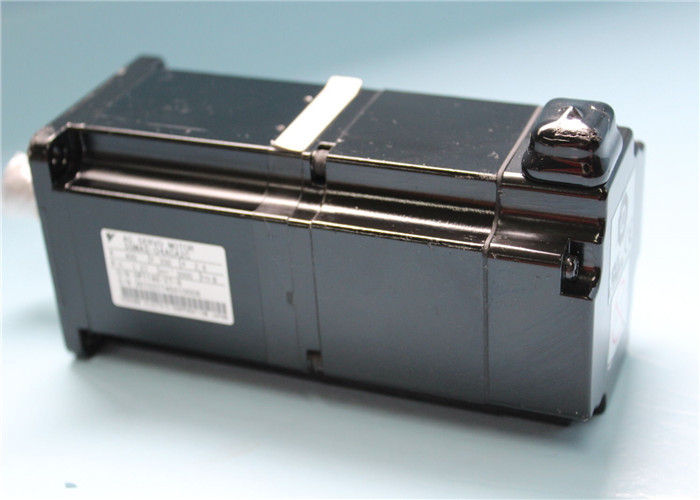

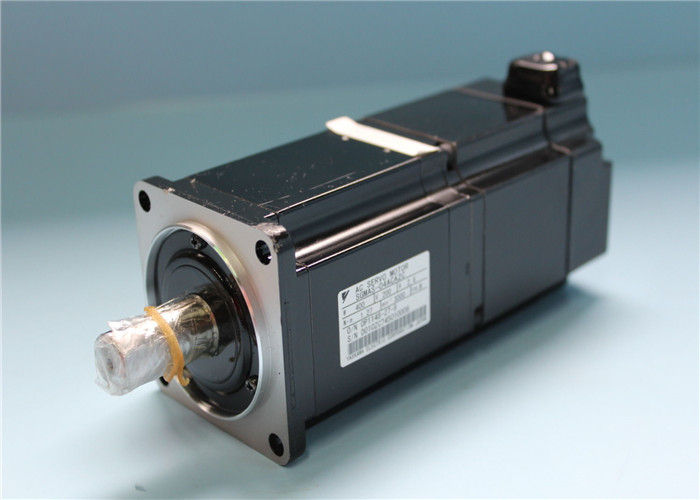

Industrial Yaskawa Electric 400w Servo Motor InsA SGMAS-04ACA2C Made in Japan

Industrial Yaskawa Electric 400w Servo Motor InsA SGMAS-04ACA2C Made in Japan



QUICK DETAILS

Model Number: SGMAS-04ACA2C
Type: Servo Motor
Frequency: 50/60Hz
Output Power: 200W
Protect Feature:Totally Enclosed
Phase:Three-phase
Certification:CCC, CE, ROHS, UL, VDE, Other
AC Voltage:208-230 / 240 V
Place of Origin:Japan
Efficiency:IE 1

OTHER SUPERIOR PRODUCTS

Our presence as a world leader in the engineering and production of DC motors is built upon a distinguished record of pioneering achievements in the steel and mining industries.
Working with the steel industry, Westinghouse developed and installed the:
❙ first electric motors in an American steel mill (1891)
❙ first electric drive for main rolls
❙ first reversing mill drive
❙ first large twin-motor reversing mill drive Some of our significant achievements in the mining industry include the:
❙ first application of separately excited shunt-wound DC motors
❙ first Ward Leonard dragline system
❙ first vertical swing motors
❙ first laminated frame generators
❙ first dual circuit generator system
Perpetuating a proud tradition, TECO-Westinghouse has continued through the years to refine our DC motor product lines with quality-enhancing
features that secure our position of leadership within the market.

Grounding

(a) Motor Frame

Always connect servomotor frame terminal FG to the SERVOPACK ground terminal . Also be sure to ground the ground terminal .

If the servomotor is grounded via the machine, a switching noise current will flow from the SERVOPACK power unit through motor stray capacitance. The above grounding is required to prevent the adverse effects of switching noise.

(b) SynqNet Communication Cable

Make sure to keep the box or power line separate from the SynqNet communication cable because the cable is easily influenced by noise.

If noise is a problem, coil the communication cable two turns around the ferrite cores on the SERVOPACK end and the controller end. Refer to the following diagram.

(c) Noise on the Reference Input Line


If the reference input line receives noise, ground the 0 V line (SG) of the reference input line. If the main circuit wiring for the motor is accommodated in a metal conduit, ground the conduit and its junction box. For all grounding, ground at one point only.

All grounds must be made to only one point in the system.

Using Noise Filters

Use an inhibit type noise filter to prevent noise from the power supply line. The following table lists recommended noise filters for each SERVOPACK model.

Install a noise filter on the power supply line for peripheral equipment as necessary.
