Product Details:
Payment & Shipping Terms:
|
| Rated Output:: | 100W | SRated Speed:: | 3000 RPM |
|---|---|---|---|
| Power Supply Specification: | 200-230VAC 3-phase | Brand: | Mitsubishi Industrial Servo Motor |
| Model Item: | HC-UF13K-S103 | Plan Of Original: | Japan |
| Max Supply: | 3.0 KW | More Information: | 3.5KW |
| Encoder Resolution: | 2500 PPR | Communication Rate: | 16 Outputs |
| Highlight: | ewing machine servo motor,electric servo motor |
||

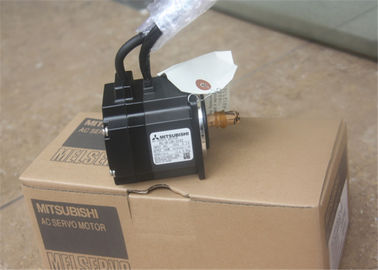

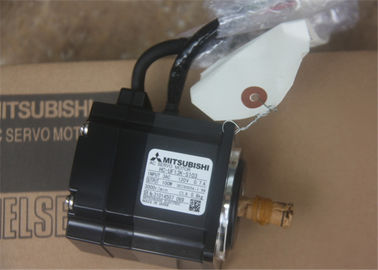

HC-UF13K-S103 Mitsubishi Industrial Servo Motor BRAKE BRAKE KEY HC-UF SERIES
The HC-UF13K-S103 by Mitsubishi is a high-power AC servo motor designed for demanding industrial automation applications. It delivers exceptional torque, speed precision, and energy efficiency, making it suitable for CNC machines, robotics, injection molding, and heavy-duty automation systems. Built with advanced servo control technology, this motor ensures smooth operation, high responsiveness, and long-term reliability in harsh industrial environments.
✔ High Torque & Power – Optimized for heavy-load applications with superior torque output.
✔ Precision Control – High-resolution encoder ensures accurate positioning (±17-bit resolution).
✔ Energy Efficient – Low power consumption with optimized electromagnetic design.
✔ Robust Construction – IP65-rated protection against dust and water splashes.
✔ Wide Speed Range – Supports high-speed operation for dynamic motion control.
✔ Compatible with Mitsubishi Servo Drives – Works seamlessly with Mitsubishi MR-J4/MR-J5 series amplifiers.
|
Parameter |
Specification |
|---|---|
| Model | HC-UF13K-S103 |
| Motor Type | AC Servo Motor |
| Rated Power | 13 kW |
| Rated Torque | 61.8 Nm |
| Max. Torque | 185.4 Nm |
| Rated Speed | 2000 rpm |
| Max. Speed | 3000 rpm |
| Encoder Type | Absolute (22-bit) / Incremental (Optional) |
| Voltage Rating | 200 V AC / 400 V AC |
| Protection Class | IP65 |
| Cooling Method | Forced Air Cooling |
| Weight | Approx. 45 kg |
Housing: High-strength aluminum alloy (heat-resistant & lightweight)
Shaft: Hardened steel for durability under heavy loads
Windings: High-grade copper with advanced insulation
Bearings: Heavy-duty precision bearings for extended lifespan
CNC Machining Centers (High-speed milling, turning)
Industrial Robotics (Large robotic arms, palletizing)
Plastic Injection Molding Machines
Metal Forming & Stamping Presses
Material Handling Systems (Conveyors, heavy lifts)
This HC-UF13K-S103 servo motor is engineered for high-performance automation, offering reliability, precision, and power in industrial settings.
