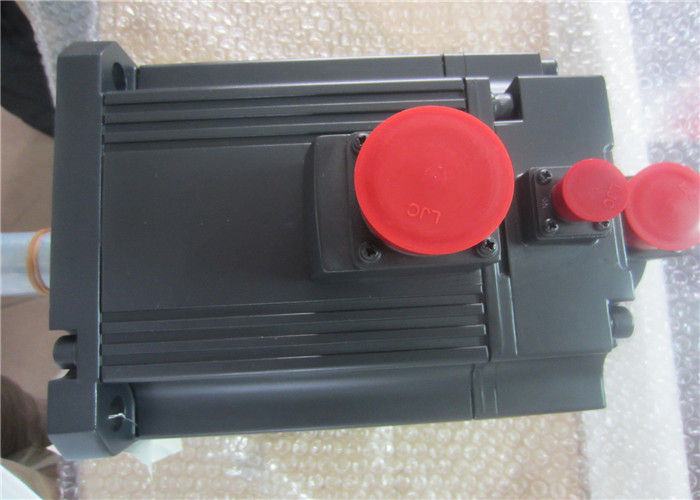

HC-SF502B 5KW BRK Mitsubishi Industrial Servo Motor HC SERIES
Product Description
The HC-SF502B is a high-performance servo motor manufactured by Mitsubishi Electric, designed for precision motion control in industrial automation applications. It features robust construction, high torque output, and exceptional responsiveness, making it suitable for CNC machinery, robotics, and high-speed production lines. The motor integrates seamlessly with Mitsubishi's servo drive systems (e.g., MR-J4 series) for optimized performance and energy efficiency
.
Product Specifications
- •
Motor Type: AC Servo Motor
- •
Series: HC-SF Series
- •

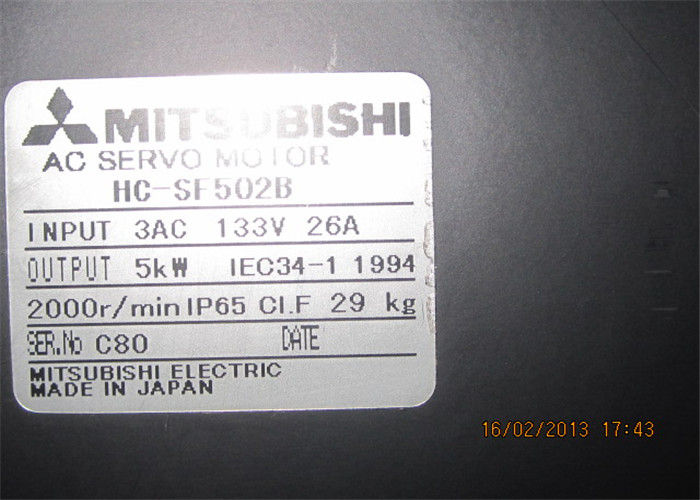

Model: HC-SF502B
- •
Compatibility: Compatible with Mitsubishi servo drives (e.g., MR-J2S, MR-J3, MR-J4)
.
- •
Cooling Method: Natural cooling or forced ventilation (varies by application).
- •
Protection Class: IP65 (dust-proof and water-resistant)
.
- •
Mounting: Standard flange mounting with optional brake models available.
Material & Applications
- •
Material:
- •
Frame: Aluminum alloy for lightweight and heat dissipation.
- •
Shaft: High-strength steel with anti-corrosion treatment.
- •
Windings: Copper coils with high-temperature insulation.
- •
Applications:
- •
Industrial automation (CNC, packaging, printing).
- •
Robotics and precision positioning systems.
- •
High-speed production lines requiring dynamic response
.
Product Parameters (Tabulated)
|
Parameter
|
Value
|
Unit
|
| Rated Output Power |
500 (nominal) |
W |
| Rated Torque |
1.6 (nominal) |
Nm |
| Max. Speed |
3000 |
rpm |
| Rated Current |
2.8 |
A |
| Voltage |
200 VAC (3-phase) |
V |
| Encoder Resolution |
17-bit (131,072 pulses/rev) |
- |
| Weight |
5.2 (approximate) |
kg |
| Ambient Temperature |
0–40 (operating range) |
°C |
Note: Parameters may vary based on configuration and drive pairing. Refer to official Mitsubishi documentation for precise details
.
Key Features:
- •
High-precision feedback via absolute encoder.
- •
Low vibration and noise for stable operation.
- •
Modular design for easy maintenance and integration.
Frequently Asked Questions:
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.We offer one year warranty for New items,6 months warranty for Used items.
2. Q: Could you provide technology support?
A: We're in this field many year. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Do you keep goods in stock or only trading?
A: We have large warehouse for goods and keeping lots of goods in warehouse, so we could delivery the items in short lead time.
