| Rated Output:: | 3.5KW | SRated Speed:: | 2000 RPM |
|---|---|---|---|
| Power Supply Specification: | 200-230VAC 3-phase | Brand: | Mitsubishi Industrial Servo Motor |
| Model Item: | HCSF352K | Plan Of Original: | Japan |
| Operating Voltage: | 5v-8.4v | Operating Temperature: | 0-40°C |
| Highlight: | ac servo motor,electric servo motor |
||

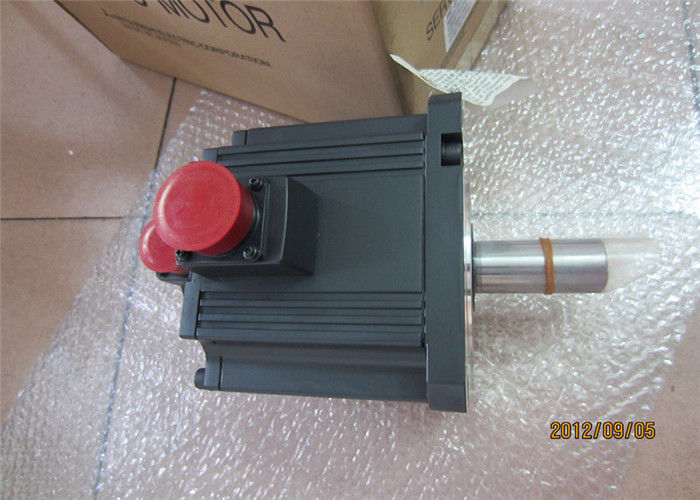

HC-SF352K 3.5KW Mitsubishi Industrial Servo Motor HC SERIES
The Mitsubishi HC-SF352K is a high-capacity, high-inertia AC servo motor designed for demanding industrial applications that require high torque and superior control over heavy loads. It is part of Mitsubishi's extensive HC-SF series, renowned for its robustness and performance.
This motor is engineered to work seamlessly with compatible Mitsubishi servo amplifiers (such as the MR-J4-350B or larger) to form a complete motion control system. Its key feature is a high-inertia rotor, which provides exceptional stability and reduces the impact of load fluctuations, making it ideal for applications with high moment-of-inertia loads. The motor ensures smooth rotation, even at low speeds, and offers excellent responsiveness for precise positioning and speed control. It is built to deliver reliable, maintenance-free operation in rigorous automation environments.
Product Type: High-Inertia AC Servo Motor
Series: Mitsubishi HC-SF Series
Compliant Standards: Complies with UL, cUL, and CE standards.
Feedback: High-resolution absolute/incremental encoder (typically 17-bit or higher).
Key Feature: High inertia design for superior load stability.
Cooling Method: Natural cooling (no external fan required for this model).
Protection Rating: IP65 (Shaft side) / IP67 (Shaft end), making it resistant to dust and water jets.
Motor Housing & Frame: Constructed from high-strength aluminum alloy for effective heat dissipation and structural integrity.
Shaft: Forged from high-tensile strength steel, precision machined to handle high torque loads and ensure reliable connection to driven equipment.
Windings: Class F (155°C) insulated copper windings for high temperature resistance and long operational life.
Bearings: High-capacity, long-life precision ball bearings designed for continuous operation under heavy loads.
Rotors: Designed with high moment of inertia for stable operation.
Primary Usage:
This high-inertia servo motor is specifically designed for applications that involve moving heavy loads or have high load fluctuations. Typical applications include:
Large Industrial Robots (e.g., automotive assembly robots)
Machine Tools (e.g., large CNC milling machines, lathes)
Semiconductor Manufacturing Equipment (e.g., wafer handlers)
Injection Molding Machines
Presses and Stamping Machines
Large Index Tables and Rotary Transfer Machines
Crane and Hoist Systems
Printing Presses (Large Format)
|
Parameter Category |
Specification |
Unit |
|---|---|---|
| Servo Motor Model | HC-SF352K | - |
| Rated Output | 3.5 | kW |
| Rated Torque | 16.7 | N⋅m |
| Max. Torque | 48.9 | N⋅m |
| Rated Speed | 2000 | min⁻¹ (RPM) |
| Max. Speed | 2500 | min⁻¹ (RPM) |
| Rated Current | 17.6 | A |
| Max. Current | 52.7 | A |
| Voltage Constant | 115 | V / 1000 min⁻¹ |
| Torque Constant | 0.95 | N⋅m / A |
| Rotor Inertia (J) | 67.6 x 10⁻⁴ | kg⋅m² |
| Backlash | ≤ 5 | arcmin |
| Weight | 24 | kg |
| Insulation Class | Class F (155°C) | - |
| Protection Rating | IP65 (Shaft side); IP67 (Shaft end) | - |
| Encoder (Standard) | 17-bit (131,072 p/rev) Absolute | - |
| Recommended Amplifier | MR-J4-350B(-RJ) or higher capacity | - |
