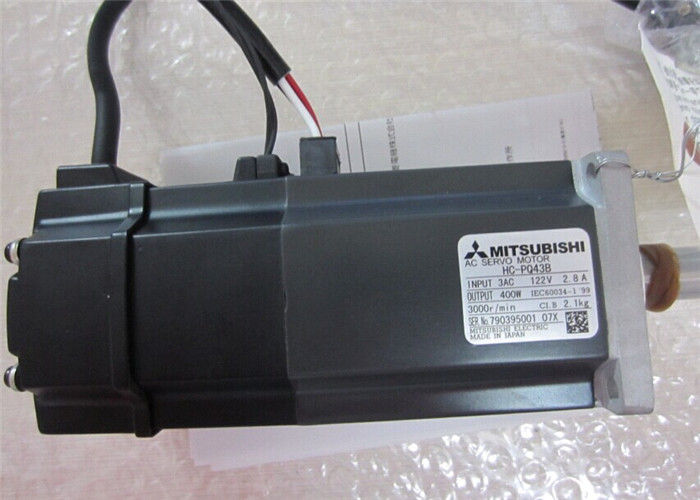

HC-PQ43B-UE 400W BRK UE Mitsubishi Industrial Servo Motor HC SERIES
The Mitsubishi HC-PQ43B-UE is a high-performance 400W AC servo motor designed for precision motion control applications. Part of Mitsubishi's HC-PQ series, this motor delivers exceptional torque, speed, and reliability, making it ideal for industrial automation, robotics, CNC machinery, and other high-precision motion systems.
With its compact design, high efficiency, and advanced feedback control, the HC-PQ43B-UE ensures smooth, accurate, and dynamic motion performance in demanding environments.
✅ High Torque & Speed Performance – Delivers 1.3 Nm continuous torque and 4.0 Nm peak torque with a 3000 rpm maximum speed.
✅ Compact & Lightweight Design – Optimized for space-constrained applications while maintaining high power density.
✅ High-Precision Feedback – Equipped with a 17-bit absolute encoder (or 13-bit incremental, depending on variant) for precise position control.
✅ Low Vibration & Noise – Advanced motor design minimizes vibration and noise for smooth operation.
✅ Energy Efficiency – High-efficiency operation reduces power consumption and heat generation.
✅ Reliable & Durable – Robust construction for long service life in industrial environments.
✅ Seamless Integration – Fully compatible with Mitsubishi MR-J4/MR-JE servo drives.
| Parameter | Specification |
|---|---|
| Motor Type | AC Servo Motor (400W) |
| Continuous Torque | 1.3 Nm (184 oz-in) |
| Peak Torque | 4.0 Nm (295 oz-in) |
| Maximum Speed | 3000 rpm |
| Rated Current | 2.8 A |
| Peak Current | 8.5 A |
| Rotor Inertia | 0.27 × 10⁻³ kg·m² (0.20 lb·in²) |
| Back EMF Constant | 6.2 V/1000 rpm (0.062 V/(rad/s)) |
| Torque Constant | 0.46 Nm/A (4.1 lb·in/A) |
| Encoder Resolution | 17-bit absolute (or 13-bit incremental, variant-dependent) |
| Protection Class | IP67 (fully sealed against dust and water ingress) |
| Insulation Class | Class B (130°C) |
| Operating Temperature | -20°C to +60°C |
| Cooling Method | Natural convection (self-cooled) |
| Weight | Approx. 2.5 kg (5.5 lbs) |
✔ High Performance – Delivers exceptional torque and speed for demanding applications.
✔ Precision Control – Advanced encoder feedback ensures accurate positioning.
✔ Reliability – Robust design for long-term operation in harsh environments.
✔ Energy Efficiency – Reduces power consumption and heat generation.
✔ Seamless Integration – Works perfectly with Mitsubishi servo drives.
| Component | Recommendation |
|---|---|
| Servo Drive | Mitsubishi MR-J4-40A (or MR-JE-40A for newer systems) |
| Cables | Pre-wired servo motor cables (Mitsubishi-compatible) |
| Brake Option | Add brake unit if required (check variant) |
| Couplings & Mounts | Precision couplings for shaft connection |
The Mitsubishi HC-PQ43B-UE is a high-performance 400W AC servo motor designed for precision motion control in industrial automation. Its compact design, high torque, and advanced feedback control make it an excellent choice for demanding applications.
