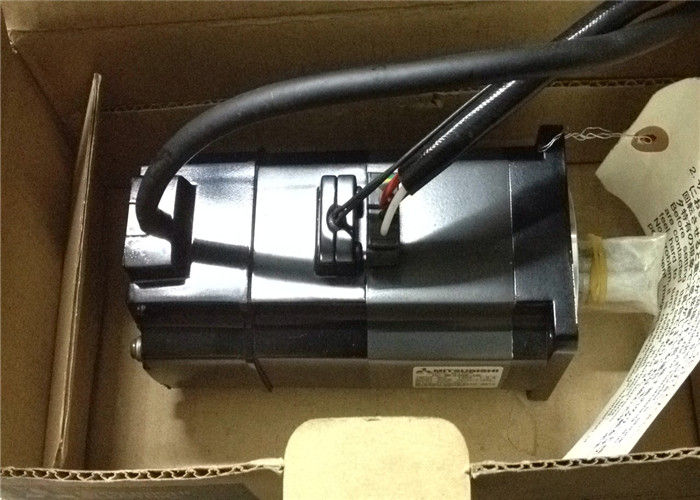

Mitsubishi HC-MF23K 200W KEY Industrial Servo Motor HC SERIES

Mitsubishi HC-MF23K 200W KEY Industrial Servo Motor HC SERIES

• Ultra-Low Inertia:​ Features a specially designed rotor with exceptionally low moment of inertia, enabling unparalleled acceleration/deceleration performance, high responsiveness, and fast settling times.
• High Speed & High Torque:​ Capable of operating at very high rotational speeds while maintaining high torque across the speed range, maximizing cycle times in high-speed automation equipment.
• High Resolution Encoder:​ Equipped with a 24-bit high-resolution absolute encoder, providing exceptional positional feedback accuracy for precise motion control. The absolute encoder also eliminates the need for homing after a power cycle, improving system start-up efficiency.
• High Rigidity:​ Constructed for high mechanical rigidity, allowing stable operation with minimal vibration even under high-speed, high-frequency motion commands.
• Compact and Lightweight:​ The 100mm square frame provides high output in a minimal package, facilitating compact machine design and easier integration.
• High Reliability:​ Features a 22-bit magnetic absolute encoder (for certain models; refer to exact spec) that is highly resistant to environmental factors like vibration and dust. Insulation is class B (130°C standard, with options) for dependable operation.
• Oil Resistant Standard:​ Compliant with IP65 protection rating, safeguarding against dust ingress and oil mist, enhancing durability in typical industrial environments.

• Material:​ The motor housing is constructed from lightweight, high-strength aluminum alloy for effective heat dissipation. The rotor uses advanced magnetic materials and low-inertia design. The shaft is high-grade steel, and key seals are oil-resistant. Windings use high-grade magnet wire with high-temperature insulation.
• Primary Applications:
  • Industrial Robots (SCARA, Delta, Cartesian)
  • High-speed Pick-and-Place Units
  • Automated Assembly and Test Equipment
  • Semiconductor Mounters and Wire Bonders
  • Precision Laser Cutting/Engraving Machines
  • Electronic Component Insertion Machines
  • Printing and Packaging Machinery

Specification Overview
