Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MSMA3AZS1A |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Rated Power: | 100W | Supply Voltage: | 220 V |
| Frequency:: | 50/60Hz | Output (W): | 0.18KW-315KW |
| Highlight: | ewing machine servo motor,electric servo motor |
||

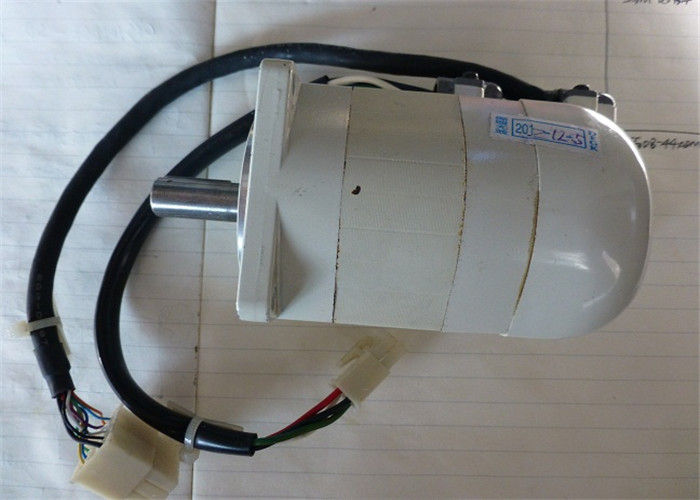

Panasonic MSMA3AZS1A Industrial Control System Industrial Servo Motor
The MSMA3AZS1A from Panasonic is a high-performance AC servo motor designed for precision motion control in industrial automation, robotics, and CNC applications. Featuring high torque density, smooth operation, and exceptional responsiveness, this servo motor is ideal for applications requiring accurate positioning, rapid acceleration, and reliable performance. Compatible with Panasonic's MINAS A6 series servo drives, the MSMA3AZS1A delivers energy-efficient operation and low vibration, making it suitable for high-speed automation systems.
✔ High Torque & Speed – 3.0 Nm rated torque with speeds up to 3000 RPM for dynamic motion control.
✔ Absolute Encoder (20-bit) – Ultra-high resolution (1,048,576 pulses/revolution) for sub-micron positioning accuracy.
✔ IP65 Protection – Dust-proof and water-resistant for harsh industrial environments.
✔ Low Vibration & Noise – Optimized rotor design for smooth operation at high speeds.
✔ Energy-Efficient – Reduced power consumption with high electromagnetic efficiency.
✔ Compact & Lightweight – Space-saving design for easy integration into machinery.
✔ Compatible with MINAS A6 Series – Seamless pairing with Panasonic’s advanced servo amplifiers.
|
Category |
Details |
|---|---|
| Model | MSMA3AZS1A |
| Manufacturer | Panasonic |
| Motor Type | AC Servo Motor |
| Rated Power | 400W |
| Rated Torque | 3.0 Nm |
| Max. Torque | 9.0 Nm (300% overload) |
| Rated Speed | 2000 RPM |
| Max. Speed | 3000 RPM |
| Voltage Rating | 200V AC (3-phase) |
| Encoder Type | 20-bit Absolute Encoder |
| Protection Class | IP65 |
| Cooling Method | Natural Cooling |
| Weight | 4.2 kg |
| Shaft Type | Keyway Shaft |
| Connector Type | Industrial Plug |
Material:
Housing: High-strength aluminum alloy
Windings: High-grade copper for optimal conductivity
Bearings: Precision-grade, long-life bearings
Rotor: Rare-earth permanent magnets for high torque density
Applications:
Industrial robots (SCARA, articulated, delta)
CNC machines (milling, grinding, lathes)
Semiconductor & PCB manufacturing
Packaging & labeling machines
Automated assembly lines
|
Parameter |
Value |
Unit |
|---|---|---|
| Rated Output | 400W | - |
| Rated Torque | 3.0 | Nm |
| Max. Torque | 9.0 | Nm (300%) |
| Rated Speed | 2000 | RPM |
| Max. Speed | 3000 | RPM |
| Rotor Inertia | 0.0018 | kg·m² |
| Encoder Resolution | 1,048,576 | pulses/rev (20-bit) |
| Ambient Temp. Range | 0 to 40 | °C |
| Insulation Class | Class F (155°C) | - |
| Vibration Resistance | 5.9 | m/s² |
Certifications: CE, UL, RoHS compliant
Recommended Drive: Panasonic MINAS A6 series (e.g., A6BE series)
Feedback Cable: Sold separately (compatible with Panasonic’s servo system cables)
Installation: Must be paired with a compatible servo amplifier for optimal performance
High performance (same as MINAS A5 standard drives) sMultifunctional sAttractive price-performance ratio sDesigned exclusively for positioning control s20 bits/revolution; 1.04 million pulses per revolution sMax. speed: 6000rpm sLow cogging torque sNew design; innovative core; high-precision encoder sIP67 degree of protection for all MSME-type motors M
