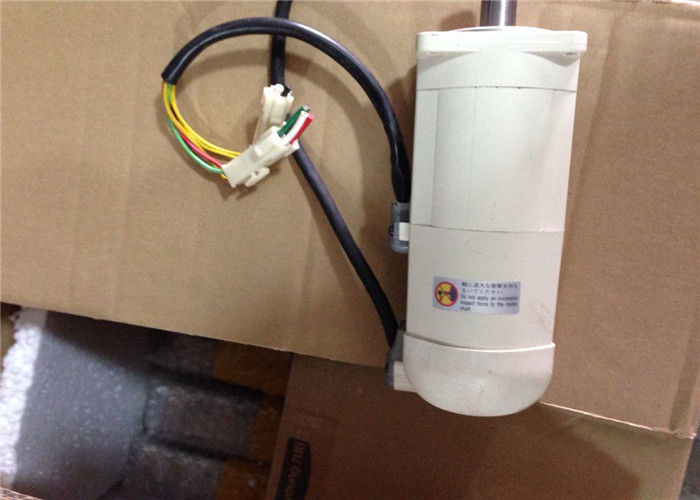

Panasonic Industrial Control System Industrial Servo Motor MSMA5AZS1H
The MSMA5AZS1H is a high-performance industrial AC servo motor from Panasonic, designed for precision motion control in demanding automation applications. It is part of the MINAS A5 series and is engineered to deliver exceptional speed, accuracy, and reliability. Key features include a 23-bit (8,388,608 resolution) absolute encoder for ultra-precise positioning, support for various control modes (position, speed, torque), and a robust design with an IP65 protection rating for resistance against dust and water jets, making it suitable for harsh industrial environments. It offers advanced functionality like anti-vibration control, load variation suppression, and two-degree-of-freedom control. Compatible with serial communication scales from leading manufacturers, it is ideal for applications such as CNC machinery, robotics, precision assembly equipment, and high-speed packaging systems
.
Product Specifications
Model: MSMA5AZS1H
Type: AC Servo Motor
Series: Panasonic MINAS A5
Encoder: 23-bit absolute encoder (8,388,608 pulses/revolution), 7-wire serial
Protection Class: IP65 (Dust-tight and protected against water jets)
Control Method: IGBT PWM sinusoidal wave drive
Communication Interfaces: USB (for parameter setting/monitoring), RS232, RS485 (1:n communication, max. 31 units)
Safety Function: Dedicated connector for functional safety
Control Modes: Position, Speed, Torque, Position/Speed, Position/Torque, Speed/Torque, Fully-closed control
Typical Materials: Industrial servo motors typically feature a high-strength steel shaft for durability and torque transmission, copper windings with high-temperature insulation for efficient power generation, and an aluminum alloy frame for effective heat dissipation and reduced weight.
Primary Uses: This motor is designed for high-precision industrial automation tasks. Common applications include:
CNC Machinery: For precise spindle control and axis movement.
Robotic Arms: Providing accurate joint control and movement.
Precision Assembly Equipment: Ensuring accurate placement and alignment of components.
Packaging Machinery: High-speed filling, capping, and labeling operations.
Material Handling: Conveyor systems, indexing tables, and automated guided vehicles (AGVs)
.
The following table lists the key technical parameters for the MSMA5AZS1H servo motor.
|
Parameter |
Value |
Unit |
|---|---|---|
| Input Power (100V) | Single-phase 100V +10% to -15%, 120V +10% to -15% | V AC |
| Input Power (200V) | Single/Three-phase 200V +10% to -15%, 240V +10% to -15% | V AC |
| Operating Ambient Temperature | 0 to 55 | °C |
| Storage Temperature | -20 to +65 (Max. 80°C for ≤72 hrs, no condensation) | °C |
| Ambient Humidity | 20 to 85% (non-condensing) | RH |
| Max. Vibration | 50.88 (or 5.88, value varies by source) | m/s² |
| Max. Command Pulse Frequency | 500 kpps (opto-coupler), 8 Mpps (line receiver x4) | - |
| General Purpose Inputs | 10 | - |
| General Purpose Outputs | 6 | - |
| Analog Inputs | 3 (16-bit A/D: 1, 12-bit A/D: 2) | - |
| Analog Monitor Outputs | 2 | - |
| Regenerative Braking | Built-in (C-Frame to F-Frame) | - |
| Dynamic Braking | Built-in (A-Frame to F-Frame) | - |
Note: Some electrical parameters like rated power, torque, and speed for the specific MSMA5AZS1H model were not explicitly detailed in the provided search results. For critical applications, always consult the official Panasonic technical manual for this specific model.
Ultra-High Resolution Encoder: 23-bit absolute encoder provides exceptional positioning accuracy
.
Multi-Control Modes: Supports 7 flexible control modes to suit various application needs
.
Robust Connectivity: Features USB, RS232, and RS485 interfaces for easy setup and integration into control networks
.
Environmental Resilience: IP65 rating ensures reliable operation in challenging conditions
.
Advanced Control Algorithms: Includes anti-vibration control, load variation suppression, and automatic gain tuning for optimized performance
.
